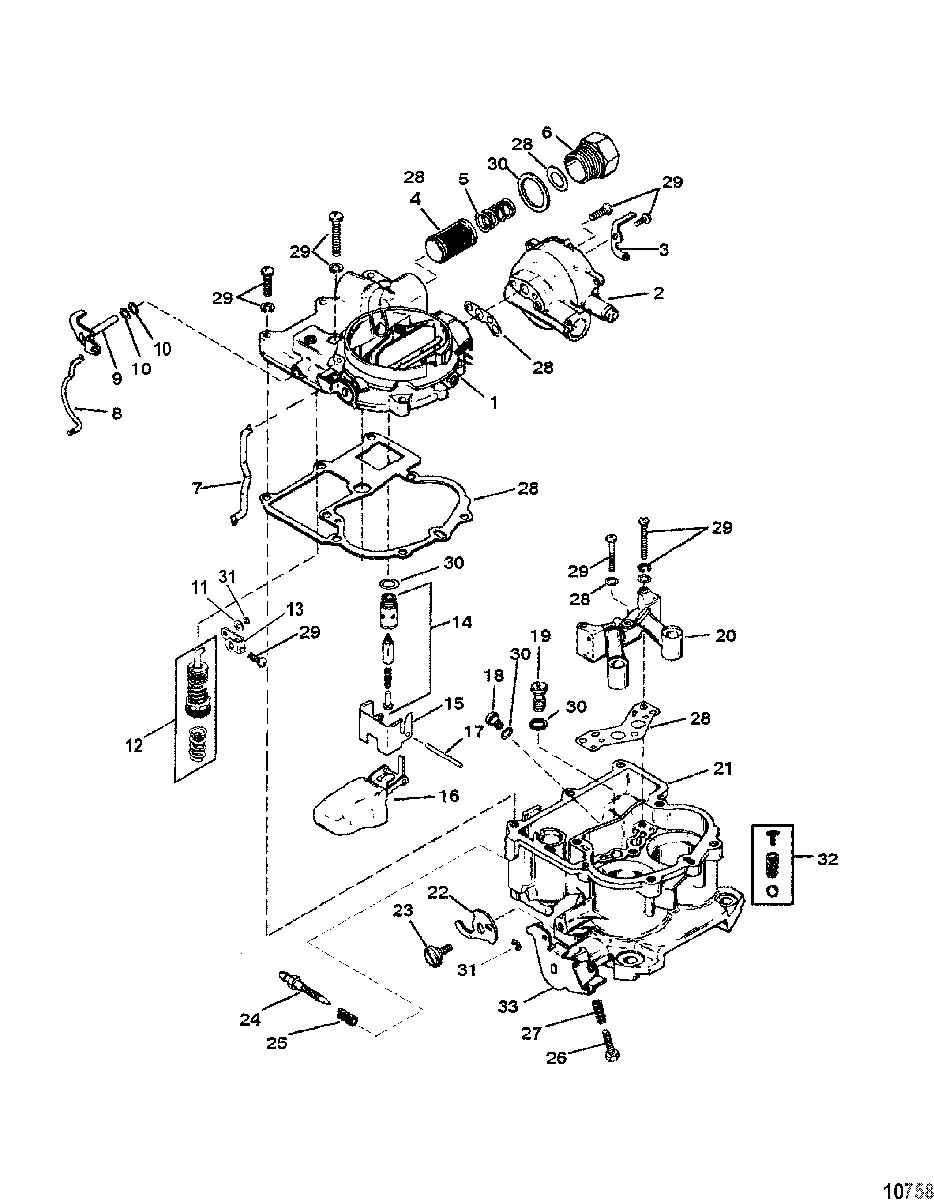

Carburetor(Mercarb) для Mercruiser - 5.0L CARB ALPHA/BRAVO 0M600000 THRU 0W300009
-
№АртикулНазвание
-
-3310-864942A01 CARBURETOR ASSEMBLY
(5.0L Alpha/Bravo) SN# 0M623982 & BelowCARBURETOR ASSEMBLY
(5.0L Alpha/Bravo) SN# 0M623982 & Below -
-3310-864942A01 CARBURETOR ASSEMBLY
(5.0L Alpha/Bravo) SN# 0M623983 & UpCARBURETOR ASSEMBLY
(5.0L Alpha/Bravo) SN# 0M623983 & Up -
-3310-864943A01 CARBURETOR ASSEMBLY
(5.7L Alpha/Bravo) SN# 0M625179 & BelowCARBURETOR ASSEMBLY
(5.7L Alpha/Bravo) SN# 0M625179 & Below -
-3310-864943A01 CARBURETOR ASSEMBLY
(5.7L Alpha/Bravo) SN# 0M625180 & UpCARBURETOR ASSEMBLY
(5.7L Alpha/Bravo) SN# 0M625180 & Up -
1NSS NOT SOLD SEPARATE, Air HornNOT SOLD SEPARATE, Air Horn
-
2NSS NOT SOLD SEPARATE, Housing-ChokeNOT SOLD SEPARATE, Housing-Choke
-
33302-9037 ARM, ChokeARM, Choke
-
435-53336Q STRAINERSTRAINER
-
53302-9032 SPRINGSPRING
-
691-90341 CONNECTORCONNECTOR
-
73302-9042 ROD, ChokeROD, Choke
-
83302-8109201 RODROD
-
93302-8237251 LEVERLEVER
-
103302-9039 WASHERWASHER
-
113302-810919 WASHERWASHER
-
123302-96551 PUMP KIT, AcceleratorPUMP KIT, Accelerator
-
133302-810916 ARMARM
-
143302-804689 SEAT KIT, InletSEAT KIT, Inlet
-
153302-803854 PLATE, BafflePLATE, Baffle
-
163302-9031 FLOATFLOAT
-
173302-90301 PIN, FloatPIN, Float
-
183302-9058 JET, MainJET, Main
-
193302-9059 JET POWERJET POWER
-
203302-802744T VENTURI
(5.0L)VENTURI
(5.0L) -
203302-802745T VENTURI
(5.7L)VENTURI
(5.7L) -
21NSS NOT SOLD SEPARATE, Body-CarburetorNOT SOLD SEPARATE, Body-Carburetor
-
223302-9048 CAMCAM
-
233302-9049 SHAFTSHAFT
-
243302-9052 SCREWSCREW
-
253302-9053 SPRINGSPRING
-
263302-9060 SCREWSCREW
-
273302-9054 SPRINGSPRING
-
283310-810929004 GASKET SETGASKET SET
-
293302-8109301 SCREW KITSCREW KIT
-
303302-9044 PACKING SETPACKING SET
-
313302-808675 CLIP, SpringCLIP, Spring
-
323302-809520 CHECK BALL KITCHECK BALL KIT
-
333302-834989 LEVER/SHAFT ASSEMBLY, ThrottleLEVER/SHAFT ASSEMBLY, Throttle
