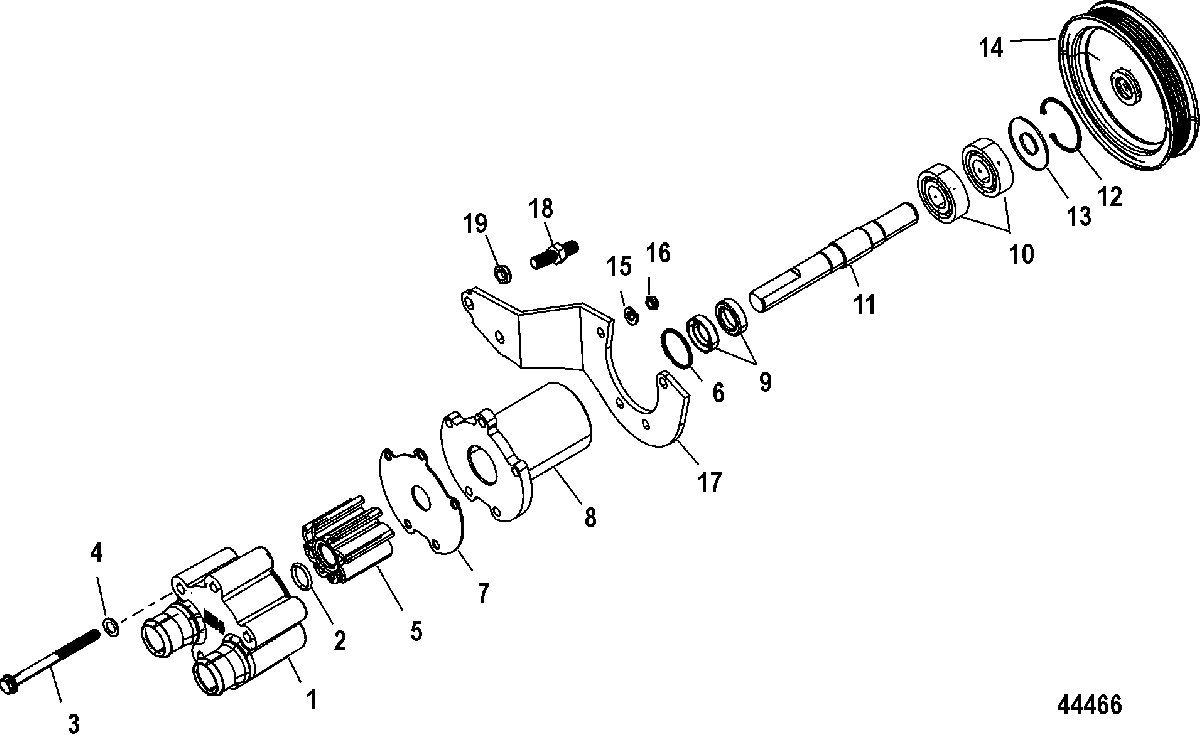

Sea Water Pump Assembly(Bravo Standard Cooling) для Mercruiser - 5.0L CARB ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
-46-807151A9 PUMP ASSEMBLY, Sea Water, CompletePUMP ASSEMBLY, Sea Water, Complete
-
146-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
225-33465 O-RINGO-RING
-
310-807356 SCREW, (.312-18 x 2.680) (.312-18 X .625)SCREW, (.312-18 x 2.680) (.312-18 X .625)
-
310-74191 SCREW, (.312-18 x 3.250)SCREW, (.312-18 x 3.250)
-
412-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
547-59362T1 IMPELLERIMPELLER
-
625-94288 QUAD RINGQUAD RING
-
794576 WEAR PLATEWEAR PLATE
-
846-94913A5 HOUSING ASSEMBLY, Pump
(Includes Refference 6)HOUSING ASSEMBLY, Pump
(Includes Refference 6) -
926-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1030-72961 BEARING, BallBEARING, Ball
-
1159501A1 SHAFTSHAFT
-
1253-23720 RING, RetainingRING, Retaining
-
1326-72785 SEALSEAL
-
14861579 PULLEYPULLEY
-
1513-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1611-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
178077491 BRACKETBRACKET
-
1816-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
1911-32219 NUT, (.375-16)NUT, (.375-16)
