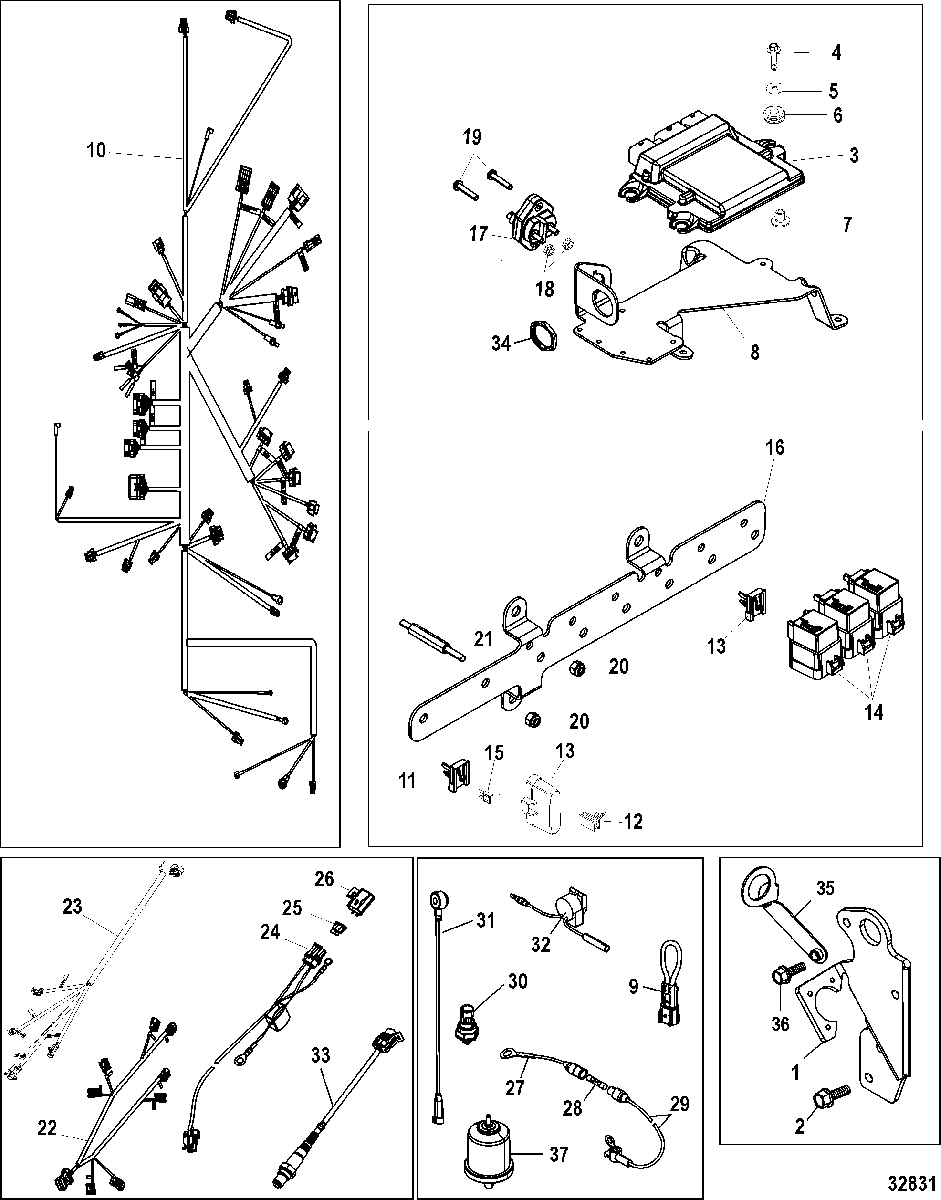

Electrical Components, Mechanical Throttle and Shift для Mercruiser - 5.0L MPI ALPHA/BRAVO EC 1A300000 THRU 1A611927
-
№АртикулНазвание
-
1865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
210-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
38M0072015 PCM, Propulsion Control Module
5.0L Alpha, Standard CoolingPCM, Propulsion Control Module
5.0L Alpha, Standard Cooling -
38M0071875 PCM, Propulsion Control Module
5.0L Alpha, Closed CoolingPCM, Propulsion Control Module
5.0L Alpha, Closed Cooling -
38M0072016 PCM, Propulsion Control Module
5.0L Bravo, Standard CoolingPCM, Propulsion Control Module
5.0L Bravo, Standard Cooling -
38M0071877 PCM, Propulsion Control Module
5.0L Bravo, Closed CoolingPCM, Propulsion Control Module
5.0L Bravo, Closed Cooling -
38M0071879 PCM, Propulsion Control Module
350 Alpha, Standard CoolingPCM, Propulsion Control Module
350 Alpha, Standard Cooling -
38M0071878 PCM, Propulsion Control Module
350 Alpha, Closed CoolingPCM, Propulsion Control Module
350 Alpha, Closed Cooling -
38M0072017 PCM, Propulsion Control Module
350 Bravo, Standard CoolingPCM, Propulsion Control Module
350 Bravo, Standard Cooling -
38M0071880 PCM, Propulsion Control Module
350 Bravo, Closed CoolingPCM, Propulsion Control Module
350 Bravo, Closed Cooling -
38M0052734 PCM, Propulsion Control Module
377, Standard CoolingPCM, Propulsion Control Module
377, Standard Cooling -
38M0052735 PCM, Propulsion Control Module
377, Closed CoolingPCM, Propulsion Control Module
377, Closed Cooling -
410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
512-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
625-834985 GROMMETGROMMET
-
723-856954 BUSHINGBUSHING
-
8879288T32 BRACKET, PCMBRACKET, PCM
-
9864337A1 CONNECTOR, Black, Jumper
Black WireCONNECTOR, Black, Jumper
Black Wire -
1084-8M0046432 HARNESS ASSEMBLY
AlphaHARNESS ASSEMBLY
Alpha -
1084-8M0046434 HARNESS ASSEMBLY
BravoHARNESS ASSEMBLY
Bravo -
1186-865205 CLIP, Relay MountingCLIP, Relay Mounting
-
1254-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
13883562 COVER, FuseCOVER, Fuse
-
14882751 RELAYRELAY
-
1588-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
1588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
16879288T31 BRACKET, RelayBRACKET, Relay
-
1788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1910-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
2011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2116-863439 STUDSTUD
-
2284-865983T01 HARNESS ASSEMBLY, InjectorsHARNESS ASSEMBLY, Injectors
-
2384-865677T02 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
2484-8M0113732 HARNESS ASSEMBLY, Clean PowerHARNESS ASSEMBLY, Clean Power
-
25862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
26828054 COVER, FuseCOVER, Fuse
-
2784-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BravoCABLE ASSEMBLY, (5.00 Inches) Red
Bravo -
2888-79091 FUSE, 20 Ampere
BravoFUSE, 20 Ampere
Bravo -
2984-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BravoCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
Bravo -
308M6000623 SENSOR, Pressure
Steering CoolerSENSOR, Pressure
Steering Cooler -
30881879T11 SENSOR, Pressure (0 - 100 PSI), OilSENSOR, Pressure (0 - 100 PSI), Oil
-
318M6003194 SENSOR ASSEMBLY, Knock
350/377 MagSENSOR ASSEMBLY, Knock
350/377 Mag -
32816492A15 ALARM KITALARM KIT
-
338M2003959 SENSOR, OxygenSENSOR, Oxygen
-
3411-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
-
358M0054509 BRACKET, FlushBRACKET, Flush
-
3610-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
3610-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
378M0068784 SENDER ASSEMBLYSENDER ASSEMBLY
