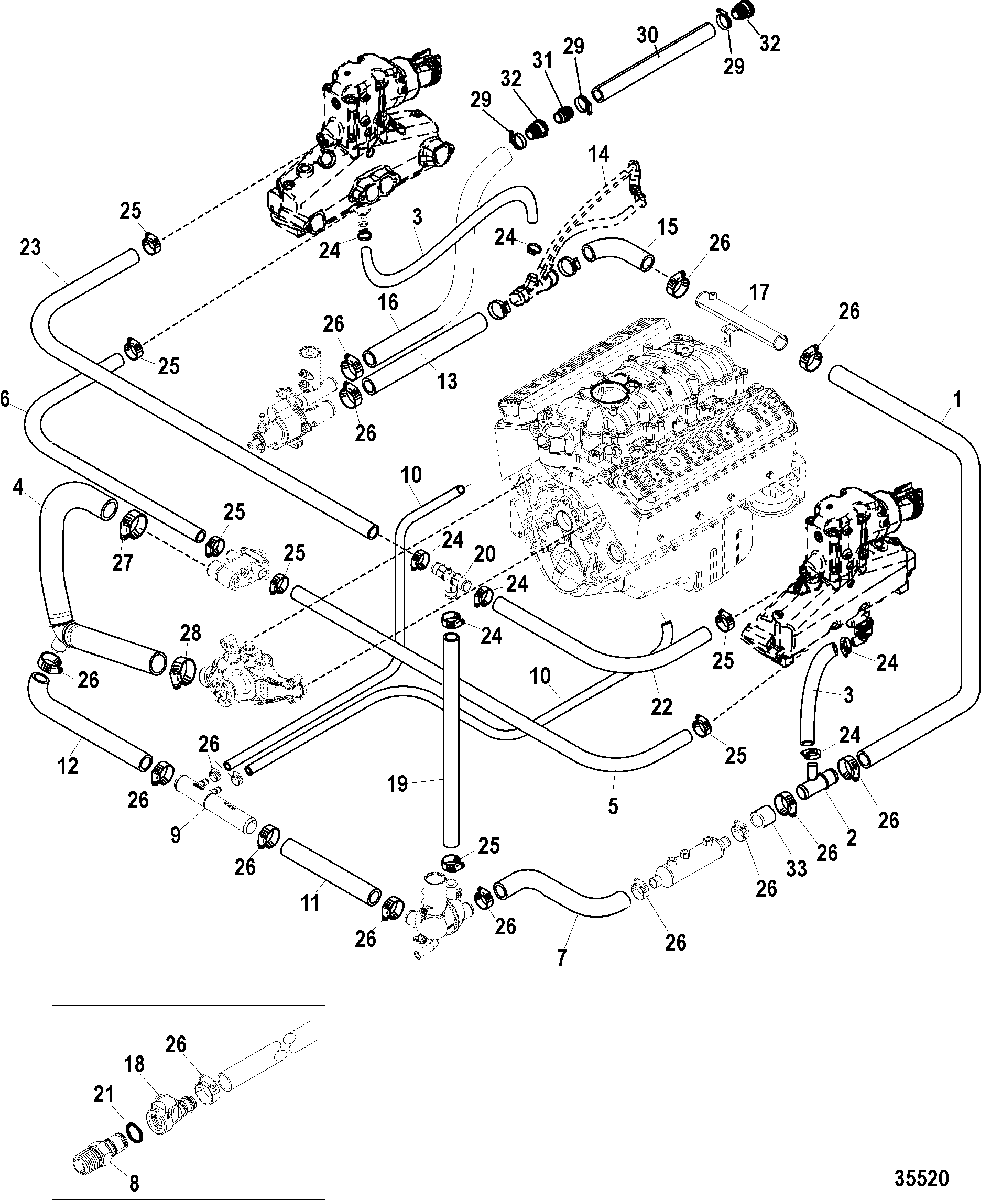

Standard Cooling System - AXIUS для Mercruiser - 5.0L MPI ALPHA/BRAVO 1A300000 THRU 1A611927
-
№АртикулНазвание
-
132-8M2012039 HOSE, Cooling Tube to "Y" FittingHOSE, Cooling Tube to "Y" Fitting
-
222-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose BarbFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
-
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting
Port, Cut to 17.00 InchesHOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting
Port, Cut to 17.00 Inches -
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
Starboard, Cut to 3.5 InchesHOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
Starboard, Cut to 3.5 Inches -
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
632-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
732-8M2007277 HOSE, Cooler to AccumulatorHOSE, Cooler to Accumulator
-
822-862603 FITTING, Male Quick Connector, Threaded - Engine BlockFITTING, Male Quick Connector, Threaded - Engine Block
-
922-864989A01 FITTING ASSEMBLY, Lower DistributionFITTING ASSEMBLY, Lower Distribution
-
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 InchesHOSE, Cylinder Block Drain to Distribution Fitting
Port Cut to 23 Inches, Starboard 17 Inches -
1132-863490 HOSE, Water Drain Accumulator to Distribution FittingHOSE, Water Drain Accumulator to Distribution Fitting
-
1232-865394 HOSEHOSE
-
1332-8M2021656 HOSE, Sea Pump to Water Orifice
3 Point Manual DrainHOSE, Sea Pump to Water Orifice
3 Point Manual Drain -
1332-865234 HOSE, Sea Pump to Water Orifice
Single Point Air Actuated DrainHOSE, Sea Pump to Water Orifice
Single Point Air Actuated Drain -
1532-8M2021655 HOSE, Water Orifice to Power Steering CoolerHOSE, Water Orifice to Power Steering Cooler
-
1632-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
Cut to 10.00 InchesHOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
Cut to 10.00 Inches -
17863841T TUBE, Water, Brass
Compact Hydraulic SteeringTUBE, Water, Brass
Compact Hydraulic Steering -
1822-862225 FITTING, Pushlock - Block Drian HoseFITTING, Pushlock - Block Drian Hose
-
1932-863465 HOSE, Drain Accumulator to Tee FittingHOSE, Drain Accumulator to Tee Fitting
-
2022-863464 FITTING, Tee
Bravo OnlyFITTING, Tee
Bravo Only -
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-864560 HOSE, Tee Fitting to Port Elbow
Non Riser, 1.7 Inch and 3 Inch RiserHOSE, Tee Fitting to Port Elbow
Non Riser, 1.7 Inch and 3 Inch Riser -
2232-864965 HOSE, Tee Fitting to Port Elbow
4.7 Inch and 6 Inch RiserHOSE, Tee Fitting to Port Elbow
4.7 Inch and 6 Inch Riser -
2332-864561 HOSE, Tee Fitting to Starboard Elbow
Non Riser, 1.7 Inch and 3 Inch RiserHOSE, Tee Fitting to Starboard Elbow
Non Riser, 1.7 Inch and 3 Inch Riser -
2332-864966 HOSE, Tee Fitting to Starboard Elbow
4.7 Inch and 6 Inch RiserHOSE, Tee Fitting to Starboard Elbow
4.7 Inch and 6 Inch Riser -
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
2654-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2754-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2854-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2954-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
3032-8M0062666 HOSE, (96.00 Inches Bulk)
Cut to 18.50 InchesHOSE, (96.00 Inches Bulk)
Cut to 18.50 Inches -
3122-865362 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3222-865324 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3332-8M2007277 HOSE, "Y" Fitting to CoolerHOSE, "Y" Fitting to Cooler
