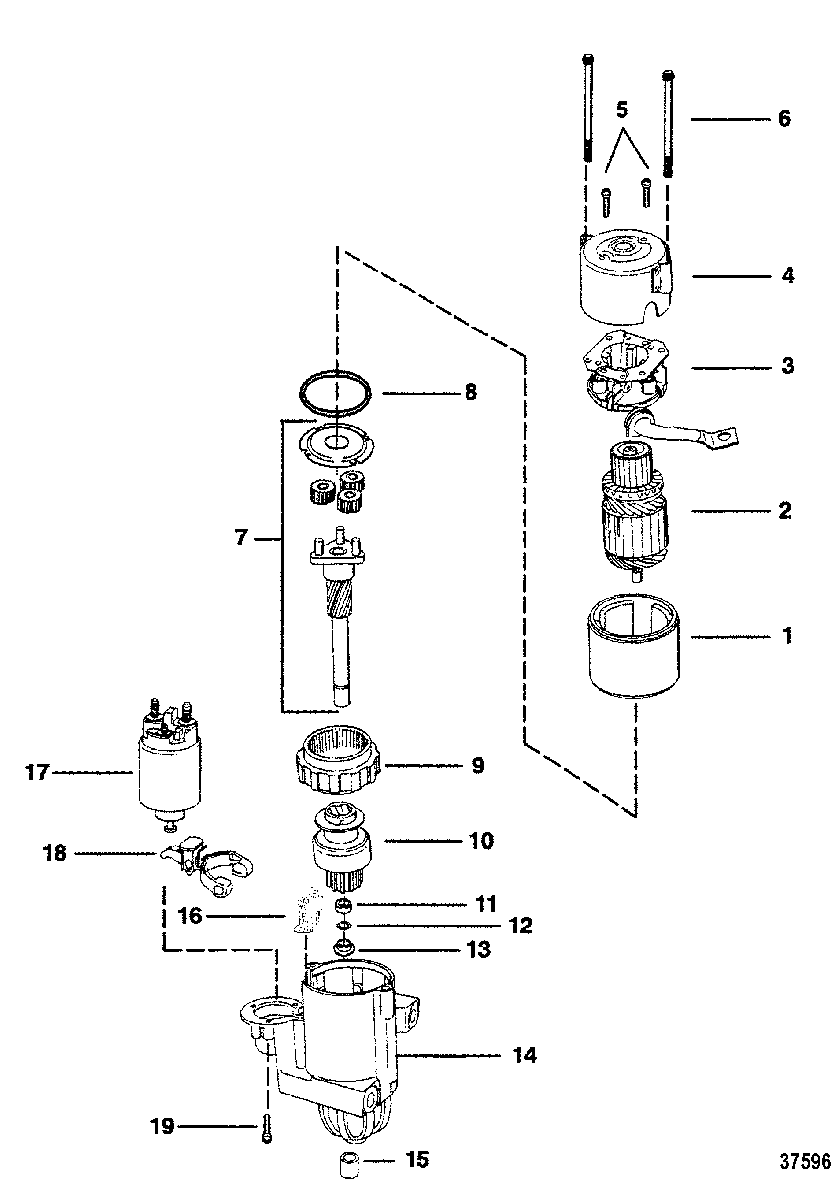

STARTER MOTOR(8 IN. - 2-7/8 IN. DIA. END CAP)(PG 260) для Mercruiser - 5.0LX (4 BBL.) GM 305 V-8 1988-1995 0B773740 THRU 0F600999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2N.S.S. Not Sold Separate, ARMATURENot Sold Separate, ARMATURE
-
3N.S.S. Not Sold Separate, BRUSH HOLDER AND SPRINGNot Sold Separate, BRUSH HOLDER AND SPRING
-
4N.S.S. Not Sold Separate, FRAMENot Sold Separate, FRAME
-
5N.S.S. Not Sold Separate, SCREWNot Sold Separate, SCREW
-
6N.S.S. Not Sold Separate, THRU BOLTNot Sold Separate, THRU BOLT
-
7N.S.S. Not Sold Separate, SHAFT AND GEARNot Sold Separate, SHAFT AND GEAR
-
8N.S.S. Not Sold Separate, GASKETNot Sold Separate, GASKET
-
9N.S.S. Not Sold Separate, GEARNot Sold Separate, GEAR
-
10N.S.S. Not Sold Separate, DRIVENot Sold Separate, DRIVE
-
1133291 COLLARCOLLAR
-
1253-33290 RING, RetainingRING, Retaining
-
13N.S.S. Not Sold Separate, THRUST COLLARNot Sold Separate, THRUST COLLAR
-
14809459 HOUSINGHOUSING
-
1523-814476 BUSHINGBUSHING
-
16N.S.S. Not Sold Separate, GROMMETNot Sold Separate, GROMMET
-
17809463A1 SOLENOIDSOLENOID
-
18N.S.S. Not Sold Separate, LEVERNot Sold Separate, LEVER
-
19N.S.S. Not Sold Separate, SCREWNot Sold Separate, SCREW
