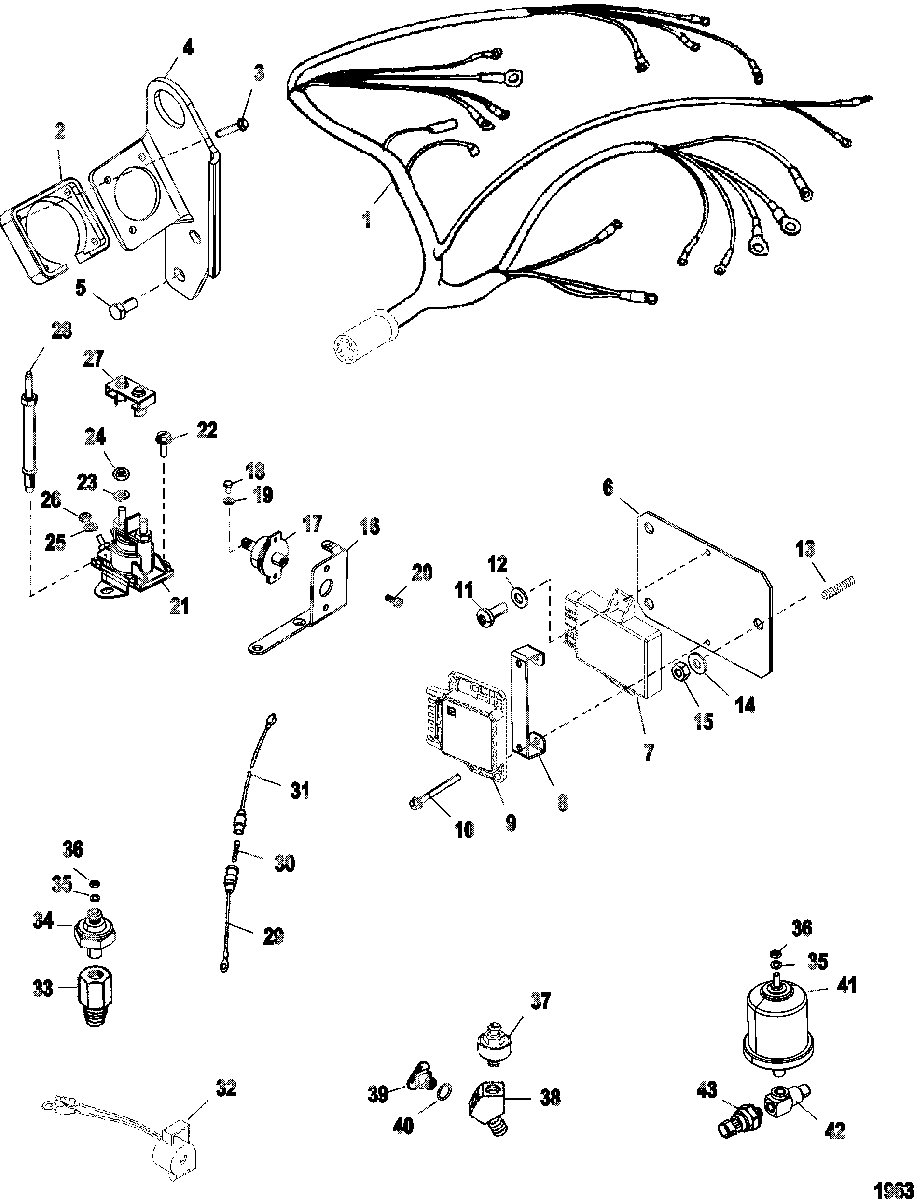

Electrical Components для Mercruiser - 5.7L CARB ALPHA/BRAVO 0M600000 THRU 0W300754
-
№АртикулНазвание
-
184-862575T02 HARNESS ASSEMBLY, Wiring
(5.0L Bravo/5.7L Alpha and Bravo)HARNESS ASSEMBLY, Wiring
(5.0L Bravo/5.7L Alpha and Bravo) -
184-862163T02 HARNESS ASSEMBLY, Wiring
(5.0L Alpha)HARNESS ASSEMBLY, Wiring
(5.0L Alpha) -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
622-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
6861516 BRACKETBRACKET
-
7861459T02 ICM MODULE, Ignition Control Module
(5.0L Alpha)ICM MODULE, Ignition Control Module
(5.0L Alpha) -
7861460T02 ICM MODULE, Ignition Control Module
(5.0L Bravo)ICM MODULE, Ignition Control Module
(5.0L Bravo) -
7861253T02 ICM MODULE, Ignition Control Module
(5.7L Alpha)ICM MODULE, Ignition Control Module
(5.7L Alpha) -
7861254T02 ICM MODULE, Ignition Control Module
(5.7L Bravo)ICM MODULE, Ignition Control Module
(5.7L Bravo) -
8861517 BRACKET
(5.0L Bravo)(5.7L Alpha/Bravo)BRACKET
(5.0L Bravo)(5.7L Alpha/Bravo) -
9806611T MODULE, Knock Control
(5.0L Bravo)(5.7L Alpha/Bravo)MODULE, Knock Control
(5.0L Bravo)(5.7L Alpha/Bravo) -
1010-41408 SCREW, (#10-32 x 1.50)
(5.0L Bravo)(5.7L Alpha/Bravo)SCREW, (#10-32 x 1.50)
(5.0L Bravo)(5.7L Alpha/Bravo) -
1110-861520 SCREW, (#10-32 x .500)
(5.0L Alpha)SCREW, (#10-32 x .500)
(5.0L Alpha) -
1212-89302 WASHER, (.203 x .406 x .040)
(5.0L Alpha)WASHER, (.203 x .406 x .040)
(5.0L Alpha) -
1310-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
1412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1511-64015 NUT, (.250-20)NUT, (.250-20)
-
16899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1810-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
1913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2010-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2189-96158T SOLENOIDSOLENOID
-
2210-805564 SCREW, (.250-20 x .750)
(Alpha)SCREW, (.250-20 x .750)
(Alpha) -
2210-805564 SCREW, (.250-20 x .750)
(Bravo)SCREW, (.250-20 x .750)
(Bravo) -
2313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2611-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2785-97861 INSULATORINSULATOR
-
2816-805459 STUD, Mercathode Mounting
(Bravo)STUD, Mercathode Mounting
(Bravo) -
2984-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo) -
3088-79091 FUSE, 20 Ampere
(Bravo)FUSE, 20 Ampere
(Bravo) -
3184-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo) -
32816492A6 ALARM KITALARM KIT
-
3322-32974 FITTING, (.125-27) AdaptorFITTING, (.125-27) Adaptor
-
3487-805605A1 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
3513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
37806612T SENSOR, KnockSENSOR, Knock
-
3822-8067051 FITTING, DualFITTING, Dual
-
3922-8M0119211 PLUG KIT, (.500-13) Royal Blue
(5.0L Alpha)PLUG KIT, (.500-13) Royal Blue
(5.0L Alpha) -
4025-62706 O-RING, (.426 x .070)
(5.0L Alpha)O-RING, (.426 x .070)
(5.0L Alpha) -
418M0068784 SENDER ASSEMBLYSENDER ASSEMBLY
-
4137293T SENDER ASSEMBLY
(Dual Station)SENDER ASSEMBLY
(Dual Station) -
4222-864669 FITTINGFITTING
-
4387-8M0070108 SWITCH, Oil PressureSWITCH, Oil Pressure
