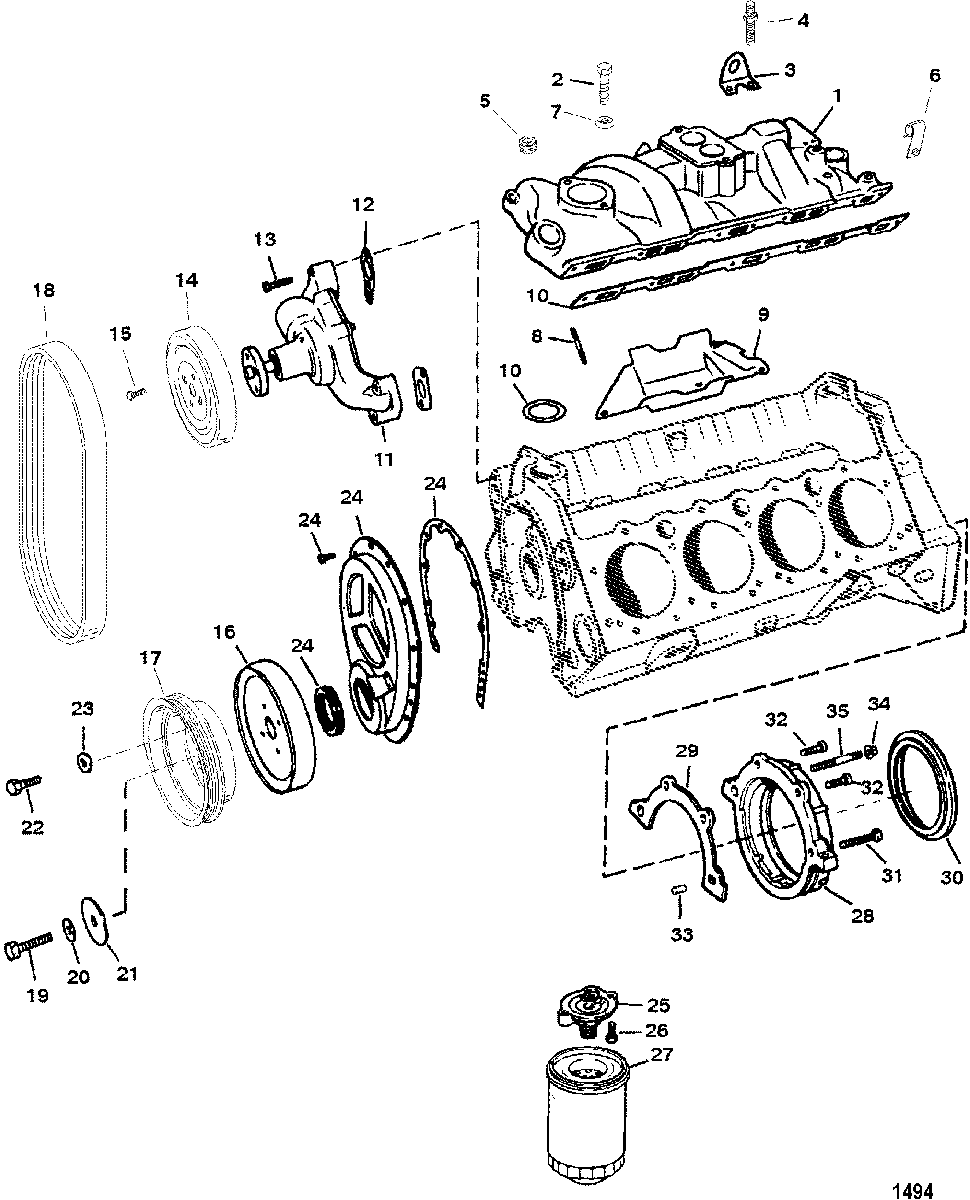

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L EFI (2 BBL.-TBI) GM 350 V-8 1997 0K001506 THRU 0K999999
-
№АртикулНазвание
-
117619 MANIFOLD, Intake
(2 BBL.)MANIFOLD, Intake
(2 BBL.) -
117620 MANIFOLD, Intake
(4 BBL. - HI-RISE)MANIFOLD, Intake
(4 BBL. - HI-RISE) -
210-11976 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
210-852939 BOLT (3/8-16 X 1-1/2 IN.)BOLT (3/8-16 X 1-1/2 IN.)
-
354-47512 LIFTING EYELIFTING EYE
-
416-806250 STUDSTUD
-
522-12524 PLUG, (.375)PLUG, (.375)
-
654-73668 J-CLIPJ-CLIP
-
712-46132 WASHERWASHER
-
8NSS NOT SOLD SEPARATE, STUD (GM#10229247)NOT SOLD SEPARATE, STUD (GM#10229247)
-
972647 GUARDGUARD
-
1027-17145 GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
1146-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
1227-34897 GASKETGASKET
-
1310-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1310-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1316-8M0076418 STUD, (.312-24/.375-16 x 2.5625)STUD, (.312-24/.375-16 x 2.5625)
-
14807729T PULLEYPULLEY
-
1510-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
16809892T BALANCER, HarmonicBALANCER, Harmonic
-
17807730T PULLEYPULLEY
-
1857-861758A1 BELT, Serpentine
(ALPHA)BELT, Serpentine
(ALPHA) -
1857-861757A1 BELT, Serpentine
(BRAVO)BELT, Serpentine
(BRAVO) -
1910-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
2013-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
2112-35332001 WASHERWASHER
-
2210-34352 SCREW, (.375-24 x .875)SCREW, (.375-24 x .875)
-
2312-34714 WASHERWASHER
-
24835005 COVER ASSEMBLY, Timing
(SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)COVER ASSEMBLY, Timing
(SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.) -
2571920 VALVE ASSEMBLY, Filter
W/O REMOTE OIL FILTERVALVE ASSEMBLY, Filter
W/O REMOTE OIL FILTER -
2610-54786 SCREW, (.312-18 x 1.250)
W/O REMOTE OIL FILTERSCREW, (.312-18 x 1.250)
W/O REMOTE OIL FILTER -
2735-866340Q03 FILTER, Oil
W/O REMOTE OIL FILTERFILTER, Oil
W/O REMOTE OIL FILTER -
28852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
-
2927-881715 GASKETGASKET
-
3026-852941 SEAL, Oil (REAR)SEAL, Oil (REAR)
-
3110-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
3210-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
3317-14263 PIN, DowelPIN, Dowel
-
3411-8M0098315 NUT, (.250-20)NUT, (.250-20)
-
3516-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
-27-806871A96 GASKET SET, OverhaulGASKET SET, Overhaul
