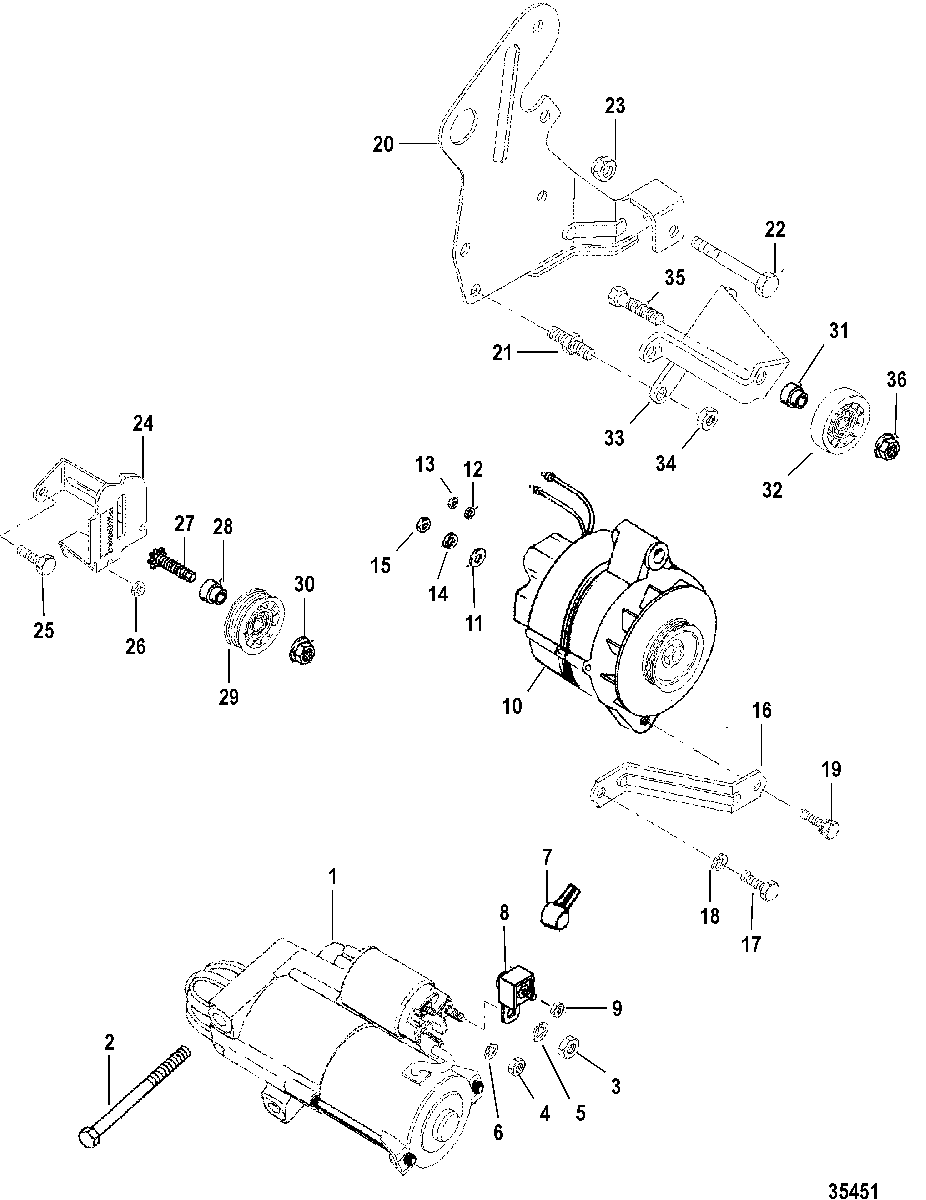

STARTER MOTOR AND ALTERNATOR для Mercruiser - 5.7L EFI GM 350 V-8 1998 0L010035 THRU 0L339999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY
(COMPONENT PARTS NOT AVAILABLE AT TIME OF PRINTING)STARTER MOTOR ASSEMBLY
(COMPONENT PARTS NOT AVAILABLE AT TIME OF PRINTING) -
210-8053432 SCREW, (.375-16 x 4.33)SCREW, (.375-16 x 4.33)
-
311-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
513-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
785-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
888-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
911-21825 NUT, (.250-28)NUT, (.250-28)
-
10807653T ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) -
1112-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1311-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1511-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
16807750T BRACEBRACE
-
1710-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1910-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
20860370T BRACKET, Alternator/Power SteeringBRACKET, Alternator/Power Steering
-
2116-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
2210-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
2311-23161 NUT, (.375-24)NUT, (.375-24)
-
24807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
2510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2611-29250 NUT, (.312-24)NUT, (.312-24)
-
2743-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
28865193 BUSHINGBUSHING
-
29807757T PULLEY ASSEMBLY, Idler - BlackPULLEY ASSEMBLY, Idler - Black
-
3011-859135 NUT, (.437-20)NUT, (.437-20)
-
31865193 BUSHING
CLOSED COOLING MODELSBUSHING
CLOSED COOLING MODELS -
328M6500024 PULLEY
CLOSED COOLING MODELSPULLEY
CLOSED COOLING MODELS -
33807753T1 BRACKET, Idler
CLOSED COOLING MODELSBRACKET, Idler
CLOSED COOLING MODELS -
3411-32219 NUT, (.375-16)
CLOSED COOLING MODELSNUT, (.375-16)
CLOSED COOLING MODELS -
3510-816601 SCREW, (.437-20 x 1.500)
CLOSED COOLING MODELSSCREW, (.437-20 x 1.500)
CLOSED COOLING MODELS -
3611-859135 NUT, (.437-20)
CLOSED COOLING MODELSNUT, (.437-20)
CLOSED COOLING MODELS
