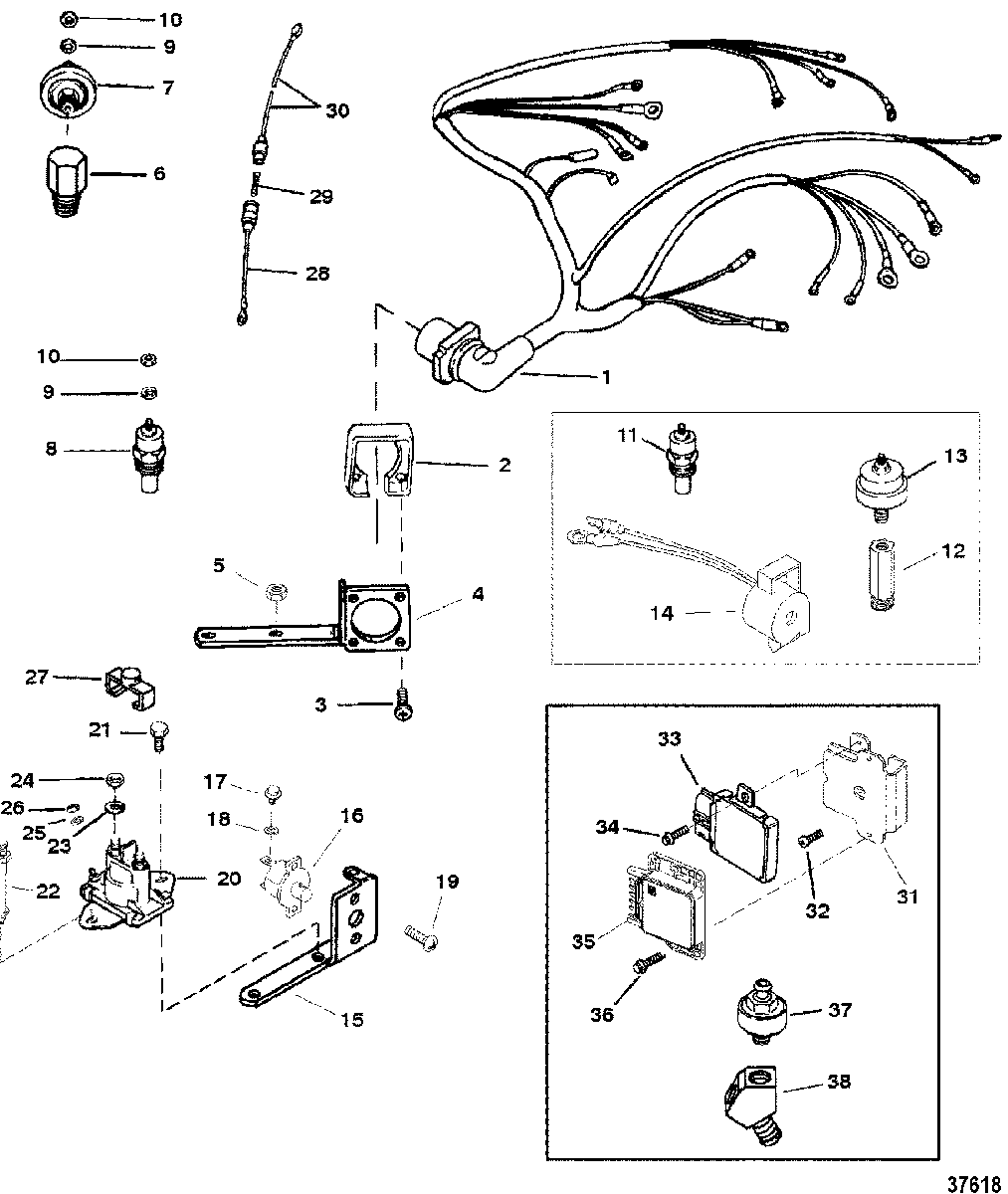

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1997 0K001527 THRU 0K999999
-
№АртикулНазвание
-
184-860217A2 HARNESS ASSEMBLY
5.7L ALPHA/BRAVOHARNESS ASSEMBLY
5.7L ALPHA/BRAVO -
184-860216A2 HARNESS ASSEMBLY
5.7LX ALPHA/BRAVO & 350 MAGNUM ALPHAHARNESS ASSEMBLY
5.7LX ALPHA/BRAVO & 350 MAGNUM ALPHA -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805383T BRACKET, Harness MountingBRACKET, Harness Mounting
-
511-32219 NUT, (.375-16)NUT, (.375-16)
-
622-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
78M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
737293T SENDER ASSEMBLY, Oil Pressure
DUAL STATIONSENDER ASSEMBLY, Oil Pressure
DUAL STATION -
8806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
849734 SENDER ASSEMBLY, Water Temperature
DUAL STATIONSENDER ASSEMBLY, Water Temperature
DUAL STATION -
913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1011-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1148952 SWITCH, Water Temperature
AUDIO WARNING SYSTEMSWITCH, Water Temperature
AUDIO WARNING SYSTEM -
1222-805059 FITTING
AUDIO WARNING SYSTEMFITTING
AUDIO WARNING SYSTEM -
1387-805605A1 SWITCH ASSEMBLY
AUDIO WARNING SYSTEMSWITCH ASSEMBLY
AUDIO WARNING SYSTEM -
14816492A6 ALARM KIT
AUDIO WARNING SYSTEMALARM KIT
AUDIO WARNING SYSTEM -
15899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1688-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1710-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
1813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1910-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2089-96158T SOLENOID, StarterSOLENOID, Starter
-
2110-805564 SCREW, (.250-20 x .750)
ALPHA ENGINESSCREW, (.250-20 x .750)
ALPHA ENGINES -
2110-805564 SCREW, (.250-20 x .750)
BRAVO ENGINESSCREW, (.250-20 x .750)
BRAVO ENGINES -
2216-805459 STUD, Mercathode Mounting
BRAVO ENGINESSTUD, Mercathode Mounting
BRAVO ENGINES -
2313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2785-97861 INSULATORINSULATOR
-
2884-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINESCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINES -
2988-79091 FUSE, 20 Ampere
BRAVO ENGINESFUSE, 20 Ampere
BRAVO ENGINES -
3084-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINESCABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINES -
31807763T BRACKETBRACKET
-
3210-861520 SCREW, (10-32 x .50)SCREW, (10-32 x .50)
-
33807264A01 ICM MODULE, Ignition Control Module
5.7L ALPHAICM MODULE, Ignition Control Module
5.7L ALPHA -
33807645A01 ICM MODULE, Ignition Control Module
5.7L BRAVOICM MODULE, Ignition Control Module
5.7L BRAVO -
33807264A01 ICM MODULE, Ignition Control Module
5.7LX ALPHA AND 350 MAGNUM ALPHAICM MODULE, Ignition Control Module
5.7LX ALPHA AND 350 MAGNUM ALPHA -
33806956A01 ICM MODULE, Ignition Control Module
5.7LX BRAVOICM MODULE, Ignition Control Module
5.7LX BRAVO -
33808026A01 MODULE, Ignition Control
5.7LX ALPHA SWISS EMISSIONMODULE, Ignition Control
5.7LX ALPHA SWISS EMISSION -
33808038T1 MODULE, Ignition Control
5.7LX BRAVO (BSO1 AND SAV1) SWISS EMISSIONSMODULE, Ignition Control
5.7LX BRAVO (BSO1 AND SAV1) SWISS EMISSIONS -
3410-806826 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
35806611T MODULE, Knock Control
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHAMODULE, Knock Control
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA -
3610-806827 SCREW, (#8-32 x .380)
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHASCREW, (#8-32 x .380)
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA -
37806612T SENSOR, Knock
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHASENSOR, Knock
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA -
3822-8067051 FITTING, Dual
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHAFITTING, Dual
5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA
