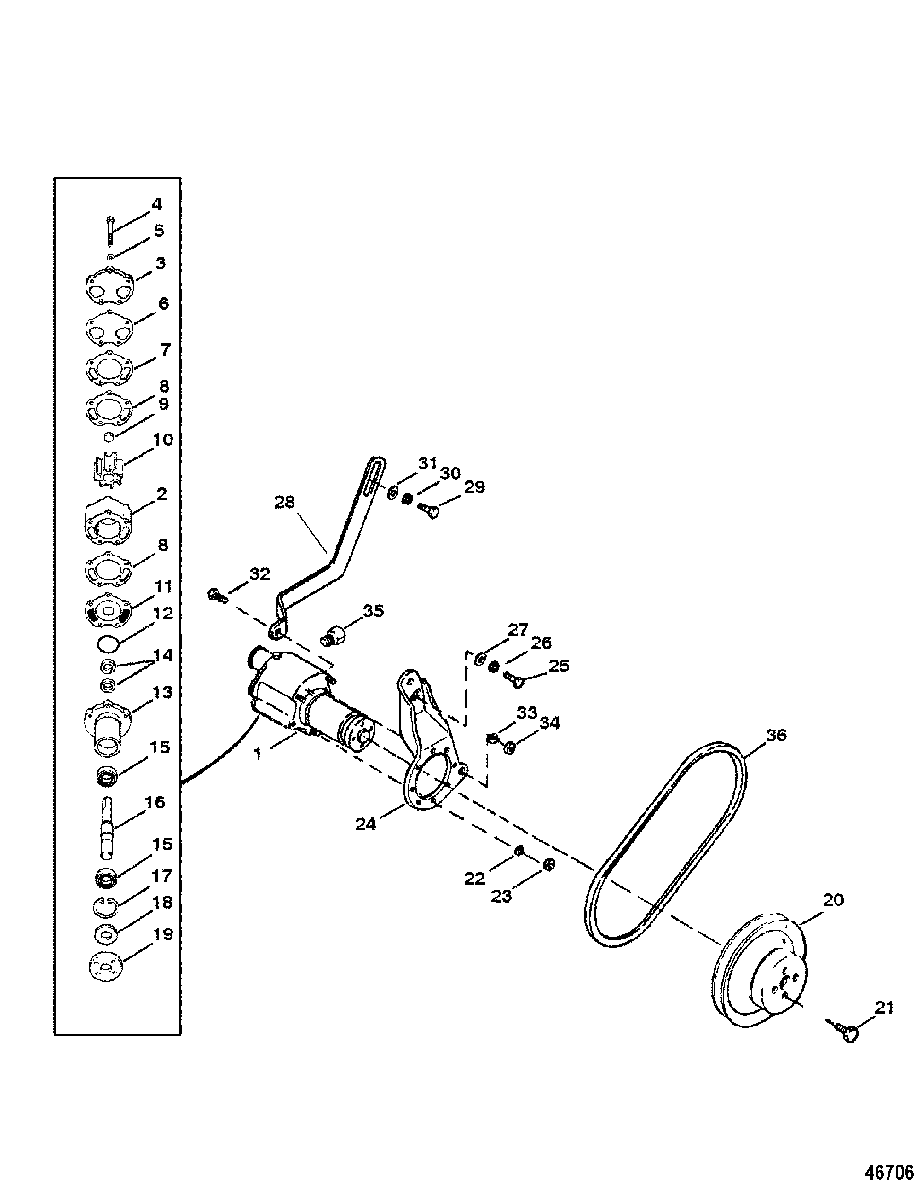

SEA WATER PUMP ASSEMBLY(BRAVO ENGINES) для Mercruiser - 5.7LX BRAVO EFI (GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508
-
№АртикулНазвание
-
146-807151A12 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
387631A4 COVER KITCOVER KIT
-
410-73275 SCREW, (.312-18 x 2.88) (2-7/8")SCREW, (.312-18 x 2.88) (2-7/8")
-
410-99347 SCREW, (.312-18 x 3.75) (3-3/4")SCREW, (.312-18 x 3.75) (3-3/4")
-
512-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
627-8052151 GASKETGASKET
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
1194576 WEAR PLATEWEAR PLATE
-
1225-94288 QUAD RINGQUAD RING
-
1346-94913A2 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1426-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1530-72961 BEARING, BallBEARING, Ball
-
1659501A1 SHAFTSHAFT
-
1753-23720 RING, RetainingRING, Retaining
-
1826-72785 SEALSEAL
-
1947530 HUBHUB
-
2052822T PULLEYPULLEY
-
2110-47277 SCREW, (.312-24 x .750) (3/4")SCREW, (.312-24 x .750) (3/4")
-
2213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2311-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2489535T1 BRACKETBRACKET
-
2510-34353 SCREW, (.375-16 x 1.00) (1")SCREW, (.375-16 x 1.00) (1")
-
2613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2712-34714 WASHERWASHER
-
28896091 BRACEBRACE
-
2910-34353 SCREW, (.375-16 x 1.00) (1")SCREW, (.375-16 x 1.00) (1")
-
3013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3112-34714 WASHERWASHER
-
3210-35786 SCREW, (.375-24 x 1.00) (1")SCREW, (.375-24 x 1.00) (1")
-
3313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3411-46335 NUT, (.375-24)NUT, (.375-24)
-
3522-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
3657-13457Q BELTBELT
