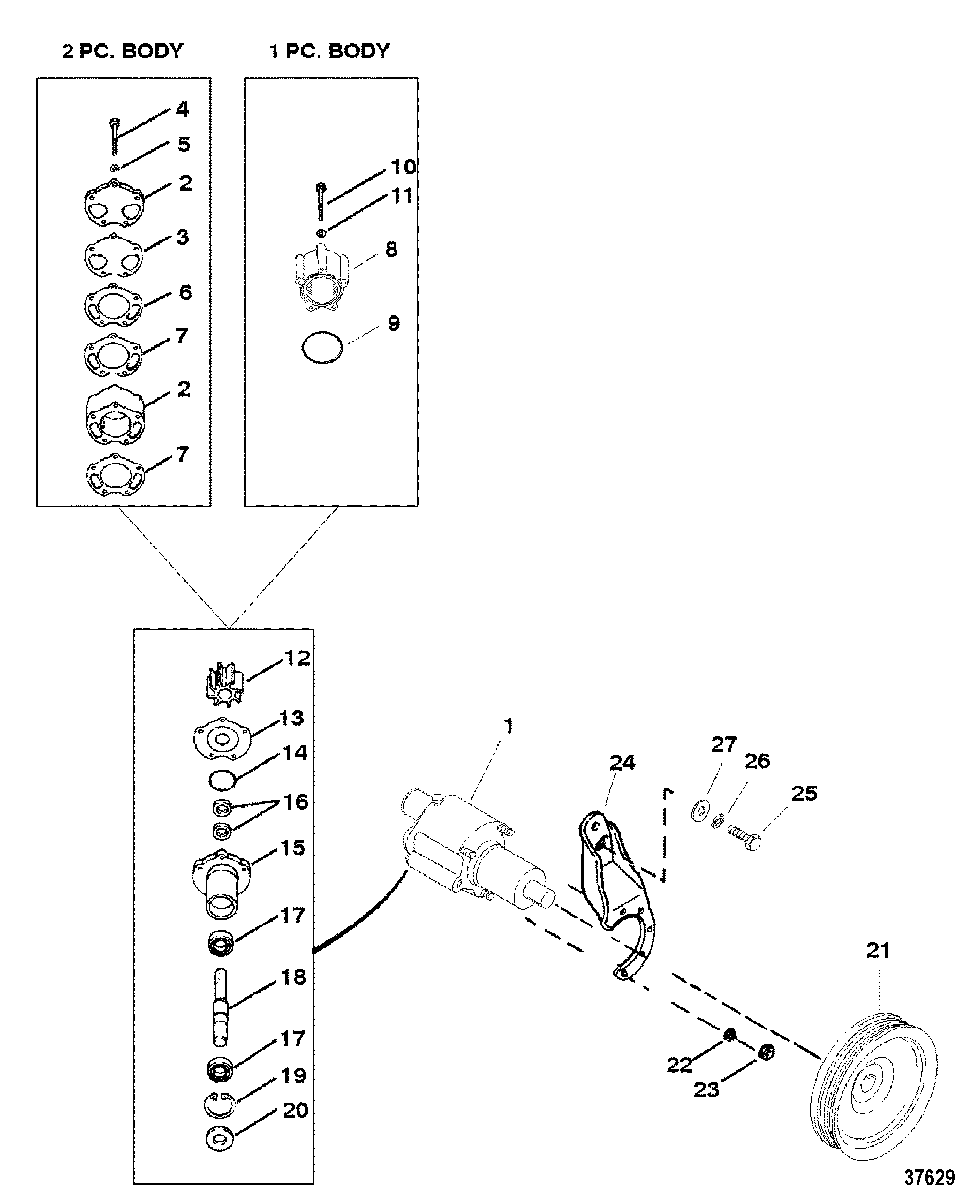

SEA WATER PUMP ASSEMBLY(USE WITH BRAVO ENGINES) для Mercruiser - 5.7LX EFI (4 BBL.-TBI) GM 350 V-8 1997 0K001506 THRU 0K999999
-
№АртикулНазвание
-
146-807151A9 PUMP ASSEMBLY, Sea WaterPUMP ASSEMBLY, Sea Water
-
246-807151A14 BODY AND COVER
TWO PIECE BODYBODY AND COVER
TWO PIECE BODY -
327-8052151 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
410-73275 SCREW, (.312-18 x 2.88)
TWO PIECE BODYSCREW, (.312-18 x 2.88)
TWO PIECE BODY -
410-99347 SCREW, (.312-18 x 3.75)
TWO PIECE BODYSCREW, (.312-18 x 3.75)
TWO PIECE BODY -
512-20084 WASHER, (.328 x .562 x .062)
TWO PIECE BODYWASHER, (.328 x .562 x .062)
TWO PIECE BODY -
694916 WEAR PLATE (OUTER)
TWO PIECE BODYWEAR PLATE (OUTER)
TWO PIECE BODY -
727-94914 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
846-807151A14 BODY AND COVER
ONE PIECE BODYBODY AND COVER
ONE PIECE BODY -
925-33465 QUAD RING
ONE PIECE BODYQUAD RING
ONE PIECE BODY -
1010-807356 SCREW, (.312-18 x 2.680)
ONE PIECE BODYSCREW, (.312-18 x 2.680)
ONE PIECE BODY -
1010-74191 SCREW, (.312-18 x 3.250)
ONE PIECE BODYSCREW, (.312-18 x 3.250)
ONE PIECE BODY -
1112-814806 WASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODYWASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODY -
1247-59362T1 IMPELLERIMPELLER
-
1394576 WEAR PLATE (INNER)WEAR PLATE (INNER)
-
1425-94288 QUAD RINGQUAD RING
-
1546-94913A5 HOUSING ASSEMBLY, PumpHOUSING ASSEMBLY, Pump
-
1626-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1730-72961 BEARING, BallBEARING, Ball
-
1859501A1 SHAFTSHAFT
-
1953-23720 RING, RetainingRING, Retaining
-
2026-72785 SEALSEAL
-
21861579 PULLEYPULLEY
-
2213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2311-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
248077491 BRACKETBRACKET
-
2510-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2712-34714 WASHERWASHER
