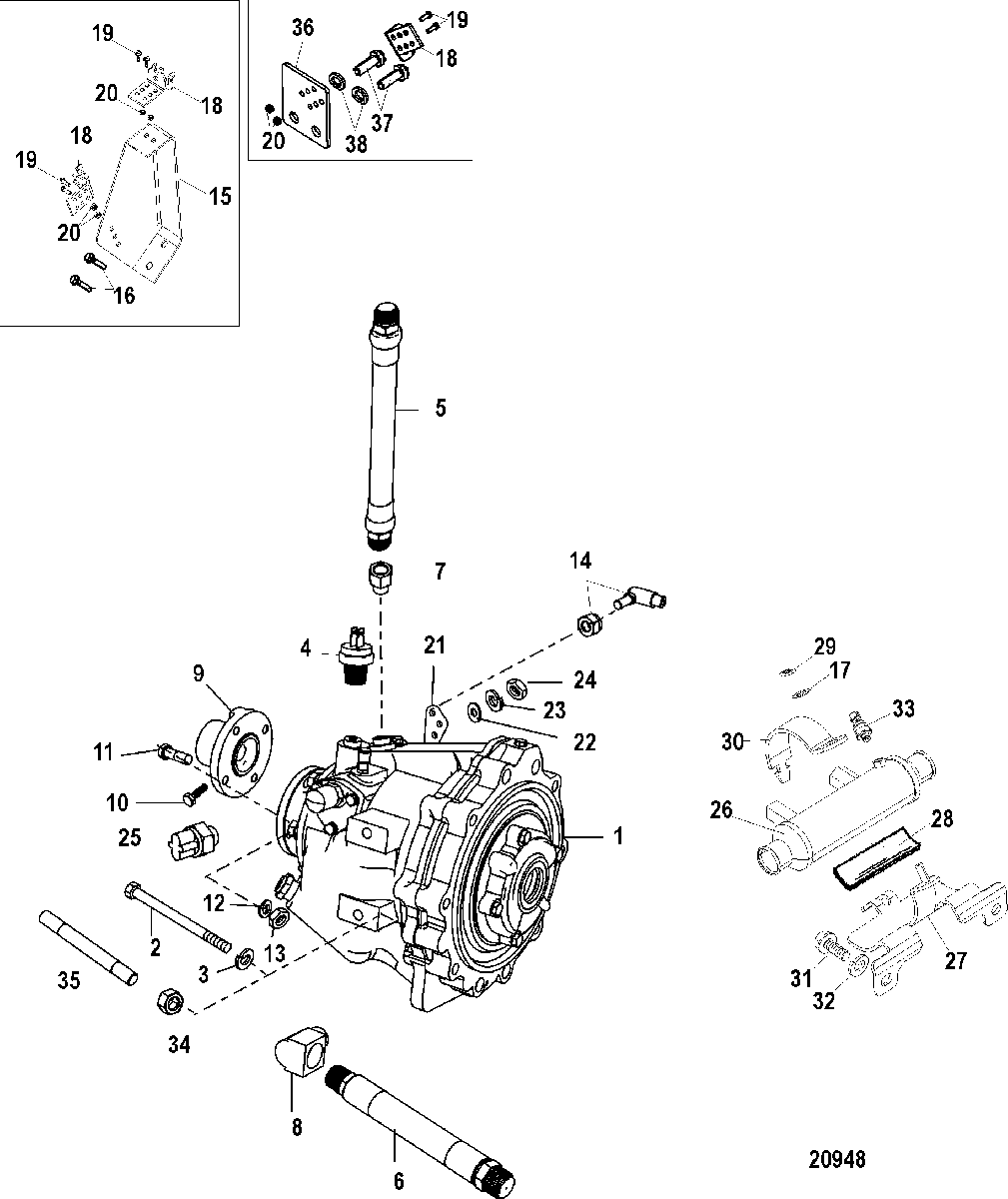

Transmission And Related Parts(Borg-Warner 71C/ 72C) для Mercruiser - SCORPION 377 0W698433 & Up
-
№АртикулНазвание
-
147805A7 TRANSMISSION ASSEMBLY
(71C)(1.1:1)TRANSMISSION ASSEMBLY
(71C)(1.1:1) -
147805T16 TRANSMISSION
(71C)(1.0:1)(With Walters Adaptor)TRANSMISSION
(71C)(1.0:1)(With Walters Adaptor) -
147810A19 TRANSMISSION
(72C)(1.0:1)TRANSMISSION
(72C)(1.0:1) -
147811A7 TRANSMISSION
(72C)(1.50:1)TRANSMISSION
(72C)(1.50:1) -
210-60179 SCREW, (.437-14 x 3.500)SCREW, (.437-14 x 3.500)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
487-88031 SWITCH ASSEMBLY, TemperatureSWITCH ASSEMBLY, Temperature
-
532-8054782 HOSE, (23.00 Inches), Oil
(71C)HOSE, (23.00 Inches), Oil
(71C) -
532-8054781 HOSE, (19.50), Oil
(72C)HOSE, (19.50), Oil
(72C) -
632-8054781 HOSE, (19.50), Oil
(71C)HOSE, (19.50), Oil
(71C) -
632-475166 HOSE ASSEMBLY, (30.00 Inches), Oil
(72C)HOSE ASSEMBLY, (30.00 Inches), Oil
(72C) -
722-63835 ELBOW, 45 Degree
(71C)ELBOW, 45 Degree
(71C) -
722-88517 FITTING, Reducing
(72C)FITTING, Reducing
(72C) -
822-47629 ELBOW, 90 DegreeELBOW, 90 Degree
-
987917A1 FLANGE ASSEMBLY, (4.00 x 1.00)FLANGE ASSEMBLY, (4.00 x 1.00)
-
1010-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1110-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
1213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1311-32219 NUT, (.375-16)NUT, (.375-16)
-
14807484 BALL JOINT ASSEMBLY, Quick ReleaseBALL JOINT ASSEMBLY, Quick Release
-
15861073T02 BRACKETBRACKET
-
1610-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
1712-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
18807485T BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1910-89766 SCREW, (#10-32 x .620) Stainless SteelSCREW, (#10-32 x .620) Stainless Steel
-
2011-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2143325 LEVERLEVER
-
2212-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
2313-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2411-22053 NUT, (.312-24)NUT, (.312-24)
-
2547613 SWITCH, Neutral SafetySWITCH, Neutral Safety
-
26863842T02 COOLER, Transmission Oil
(71C)COOLER, Transmission Oil
(71C) -
26863832T01 COOLER, Transmission Oil
(72C)COOLER, Transmission Oil
(72C) -
27865219T BRACKET, CoolerBRACKET, Cooler
-
28772234 PADPAD
-
2911-8267088 NUT, (.250-20)NUT, (.250-20)
-
30807445T CLAMP, CoolerCLAMP, Cooler
-
3110-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
338M6000623 SENSOR, PressureSENSOR, Pressure
-
3411-22024 NUT, (.437-14)NUT, (.437-14)
-
3516-57921 STUD, (.437-14/.437-20 x 4.00)STUD, (.437-14/.437-20 x 4.00)
-
36866077 BRACKET, Shift CableBRACKET, Shift Cable
-
3713-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
3810-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
