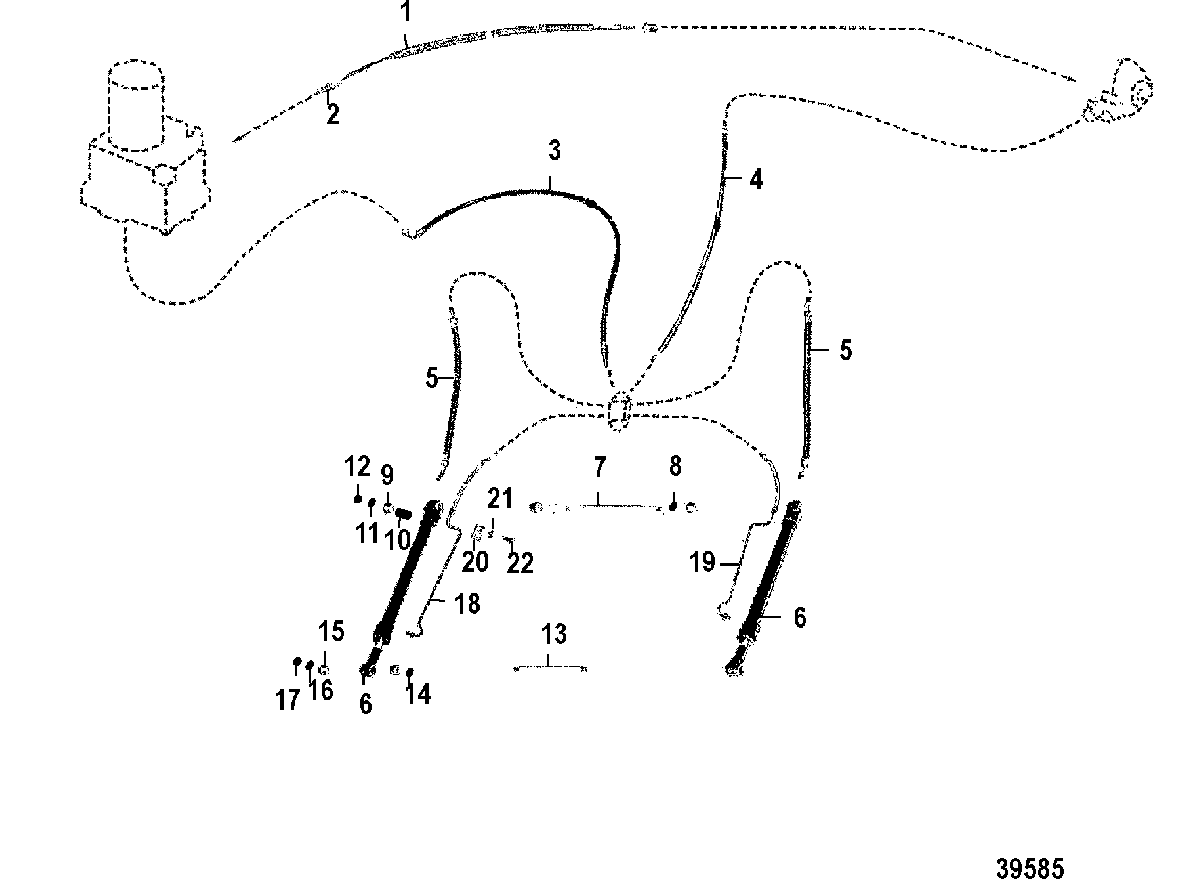

TRIM CYLINDERS AND HYDRAULIC HOSES(EXTERNAL LINE) для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576
-
№АртикулНазвание
-
132-52951A1 HOSE, HYDRAULIC PUMP TO VALVE
(IN-LINE ENGINES)HOSE, HYDRAULIC PUMP TO VALVE
(IN-LINE ENGINES) -
132-8M0111655 TUBING, HYDRAULIC PUMP TO VALVE
(V-8 ENGINESTUBING, HYDRAULIC PUMP TO VALVE
(V-8 ENGINES -
222-49718 NUT, COMPRESSION-HYDRAULIC TUBE ATTACHINGNUT, COMPRESSION-HYDRAULIC TUBE ATTACHING
-
332-55816 HOSE, HYDRULIC-CONNECTOR TO PUMPHOSE, HYDRULIC-CONNECTOR TO PUMP
-
432-59842 HOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVEHOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVE
-
532-86036Q HOSE, HYDRAULIC-TRIM CYLINDER TO CONNECTORHOSE, HYDRAULIC-TRIM CYLINDER TO CONNECTOR
-
687173A10 TRIM CYLINDER ASSEMBLY, COMPLETETRIM CYLINDER ASSEMBLY, COMPLETE
-
-87068A1 OVERHAUL KIT, TRIM CYLINDEROVERHAUL KIT, TRIM CYLINDER
-
-25-60342A3 SEAL KIT, TRIM CYLINDERSEAL KIT, TRIM CYLINDER
-
717-45735 PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
812-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
923-89574 BUSHING, RUBBER-FRONT ANCHOR PINBUSHING, RUBBER-FRONT ANCHOR PIN
-
1024-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1112-46765 WASHER, (.390 x 1.50 x .120), FRONT ANCHOR PINWASHER, (.390 x 1.50 x .120), FRONT ANCHOR PIN
-
1211-82671013 NUT, (.375-24), FRONT ANCHOR PINNUT, (.375-24), FRONT ANCHOR PIN
-
1317-45738 PIN, REAR ANCHOR (7 1/2")PIN, REAR ANCHOR (7 1/2")
-
1412-45737 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1523-89574 BUSHING, RUBBER-REAR ANCHOR PINBUSHING, RUBBER-REAR ANCHOR PIN
-
1612-46765 WASHER, (.390 x 1.50 x .120), REAR ANCHOR PINWASHER, (.390 x 1.50 x .120), REAR ANCHOR PIN
-
1711-82671013 NUT, (.375-24), REAR ANCHOR PINNUT, (.375-24), REAR ANCHOR PIN
-
1832-87234 HOSE, HYDRAULIC-TRIM CYLINDER (PORT)HOSE, HYDRAULIC-TRIM CYLINDER (PORT)
-
1932-87235 HOSE, HYDRAULIC-TRIM CYLINDER (STARBOARD)HOSE, HYDRAULIC-TRIM CYLINDER (STARBOARD)
-
2087057 PLATE, CLAMPING-TRIM CYLINDER HOSEPLATE, CLAMPING-TRIM CYLINDER HOSE
-
2110-73013 SCREW, 10-32 x 1.50, CLAMPING PLATESCREW, 10-32 x 1.50, CLAMPING PLATE
-
2211-859124 NUT, (#10-32) Stainless Steel, CLAMPING PLATE SCREWNUT, (#10-32) Stainless Steel, CLAMPING PLATE SCREW
