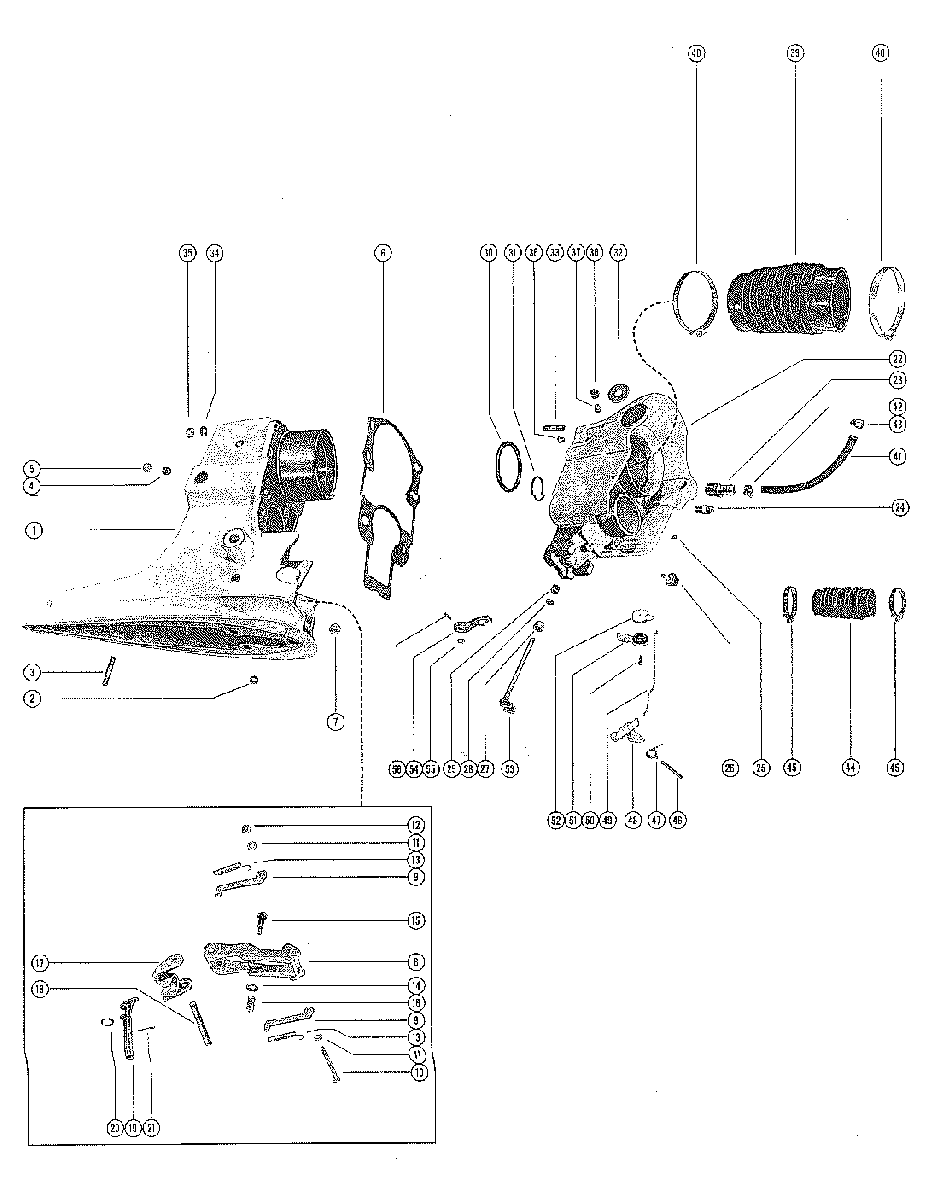

DRIVE SHAFT HOUSING ASSEMBLY AND BELL HOUSING ASSEMBLY для Mercruiser - 160 1967-1969 2065190 THRU 2763441
-
№АртикулНазвание
-
11547-2763A6 DRIVE SHAFT HOUSING ASSEMBLY
S/N: 2495185 and belowDRIVE SHAFT HOUSING ASSEMBLY
S/N: 2495185 and below -
11547-3546A8 DRIVE SHAFT HOUSING ASSEMBLY
S/N: 2495186 and upDRIVE SHAFT HOUSING ASSEMBLY
S/N: 2495186 and up -
223-32632 BUSHING, DRIVE SHAFT HOUSINGBUSHING, DRIVE SHAFT HOUSING
-
316-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16 )STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16 )
-
422-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET )PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET )
-
519-32652 WELCH, PLUG, DRIVE SHAFT HOUSINGWELCH, PLUG, DRIVE SHAFT HOUSING
-
627-64818Q4 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
711-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSINFG STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSINFG STUD
-
837829A2 ARM ASSEMBLY, REVERSE HOOK - DRIVE SHAFT HOUSING
SEE NOTE BELOWARM ASSEMBLY, REVERSE HOOK - DRIVE SHAFT HOUSING
SEE NOTE BELOW -
932520 HOOK, REVERSE
SEE NOTE BELOWHOOK, REVERSE
SEE NOTE BELOW -
1010-32527 SCREW, REVERSE HOOKS TO RESERVE HOOK ARM (2 11/16)
SEE NOTE BELOWSCREW, REVERSE HOOKS TO RESERVE HOOK ARM (2 11/16)
SEE NOTE BELOW -
1112-29245 WASHER, REVERSE OKS TO REVERSE ARM SCREW
SEE NOTE BELOWWASHER, REVERSE OKS TO REVERSE ARM SCREW
SEE NOTE BELOW -
1211-826709109 NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SEE NOTE BELOWNUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
SEE NOTE BELOW -
1324-37827 SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SEE NOTE BELOWSPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
SEE NOTE BELOW -
1412-34931 WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SEE NOTE BELOWWASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SEE NOTE BELOW -
1510-32694 SCREW,REVERSE HOOK ARM TO DRIVE SHAFT HOUSING (1 3/8 )
SEE NOTE BELOWSCREW,REVERSE HOOK ARM TO DRIVE SHAFT HOUSING (1 3/8 )
SEE NOTE BELOW -
1624-32659 SPRING,TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SEE NOTE BELOWSPRING,TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
SEE NOTE BELOW -
1732588A1 STOP ASSEMBLY, REVERSE HOOK ARM
SEE NOTE BELOWSTOP ASSEMBLY, REVERSE HOOK ARM
SEE NOTE BELOW -
1817-45574 PIN, PIVOT - REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
SEE NOTE BELOWPIN, PIVOT - REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
SEE NOTE BELOW -
1932628T SHAFT, SHIFT - INTERMEDIATESHAFT, SHIFT - INTERMEDIATE
-
2012-32666 WASHER, INTERMEDIATE SHIFT SHAFTWASHER, INTERMEDIATE SHIFT SHAFT
-
2118-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAININGCOTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
-
2245807A1 BELL HOUSING ASSEMBLY (WITH CRANK LEVER OON SIDE OF BELL HOU)BELL HOUSING ASSEMBLY (WITH CRANK LEVER OON SIDE OF BELL HOU)
-
2268417A1 BELL HOUSING ASSEMBLY (WITHOUT CRANK LEVER ON SIDE OF BELL H)BELL HOUSING ASSEMBLY (WITHOUT CRANK LEVER ON SIDE OF BELL H)
-
--27-64818Q4 GASKET,DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6GASKET,DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6 -
2322-33066 CONNECTOR, WATER HOSE TO BELL HOUSINGCONNECTOR, WATER HOSE TO BELL HOUSING
-
2490-52247 CONNECTOR, SHIFT CABLE - BELL HOUSING
SEE NOTE BELOWCONNECTOR, SHIFT CABLE - BELL HOUSING
SEE NOTE BELOW -
2510-25612 SCREW, DRIVE - BELL HOUSING FLANGESCREW, DRIVE - BELL HOUSING FLANGE
-
2631014 BUMPER, BELL HOUSINGBUMPER, BELL HOUSING
-
2723-814308 BUSHING, BELL HOUSING (5/8)BUSHING, BELL HOUSING (5/8)
-
2826-45587 OIL SEAL, BELL HOUSINGOIL SEAL, BELL HOUSING
-
2923-805041A2 BUSHING, BELL HOUSING (5/16)BUSHING, BELL HOUSING (5/16)
-
3027-35982 GASKET, RUBBER - BELL HOUSINGGASKET, RUBBER - BELL HOUSING
-
3125-33504 "O" RING, BELL HOUSING"O" RING, BELL HOUSING
-
3212-38000 WASHER, SYNTHANE - BELL HOUSINGWASHER, SYNTHANE - BELL HOUSING
-
3316-59579 STUD, BELL HSG. TO DRIVE SHAFT HSG.STUD, BELL HSG. TO DRIVE SHAFT HSG.
-
3412-35935 WASHER, BELL HOUSING STUDWASHER, BELL HOUSING STUD
-
3511-34933 NUT, BELL HOUSING STUDNUT, BELL HOUSING STUD
-
3610-36398 SCREW, PLUG - BELL HOUSING (1/4)SCREW, PLUG - BELL HOUSING (1/4)
-
3722-74036 FITTING, GREASE - BELL HOUSINGFITTING, GREASE - BELL HOUSING
-
3819-77633Q LUBRICATE, BELL HOUSING GREASE FITTINGLUBRICATE, BELL HOUSING GREASE FITTING
-
3936223A2 BELLOWS ASSEMBLY, UNIVERSAL JOINTBELLOWS ASSEMBLY, UNIVERSAL JOINT
-
4054-815504372 CLAMP,UNIVERSAL JOINT BELLOWS TO BELL HOUSING & GIMBLE HOUSGCLAMP,UNIVERSAL JOINT BELLOWS TO BELL HOUSING & GIMBLE HOUSG
-
4132-32461 HOSE, WATER -BELL HOUSING TO GIMBAL HOUSINGHOSE, WATER -BELL HOUSING TO GIMBAL HOUSING
-
4254-815504310 CLAMP, WATER HOSE TO SELL HOUSING CONNECTORCLAMP, WATER HOSE TO SELL HOUSING CONNECTOR
-
4354-815504310 CLAMP, WATER HOSE TO GIMBLE HOUSING WATER TUBECLAMP, WATER HOSE TO GIMBLE HOUSING WATER TUBE
-
4354-815504310 CLAMP,WATERHOSE TO GIMBAL HOUSING WATER TUBECLAMP,WATERHOSE TO GIMBAL HOUSING WATER TUBE
-
4418654A1 BELLOWS, EXHAUST - BELL HOUSING TO GOMBALHOUSINGBELLOWS, EXHAUST - BELL HOUSING TO GOMBALHOUSING
-
4554-815504348 CLAMSA, EXHAUST BELLOWS TO BELLHOUSEING AND GIMBLE HOUSINGCLAMSA, EXHAUST BELLOWS TO BELLHOUSEING AND GIMBLE HOUSING
-
4617-20302 PIN, PIVOT-REVERSE HOOK RELEACE LEVER TO BLL HOUSING
SEE NOTE BELOWPIN, PIVOT-REVERSE HOOK RELEACE LEVER TO BLL HOUSING
SEE NOTE BELOW -
4724-36102 SPRING, TORSION - REVERSE HOOK RELEASE LEVER 1
SEE NOTE BELOWSPRING, TORSION - REVERSE HOOK RELEASE LEVER 1
SEE NOTE BELOW -
4832629A1 LEVER ASSEMBLY, REVERSE HOOK RELEASE - BELLHOUSER
SEE NOTE BELOWLEVER ASSEMBLY, REVERSE HOOK RELEASE - BELLHOUSER
SEE NOTE BELOW -
4932745 LINK ROD, RELEASE HANDLE TO RELEASE LEVER
SEE NOTE BELOWLINK ROD, RELEASE HANDLE TO RELEASE LEVER
SEE NOTE BELOW -
5010-32651 SCREW, CRANK LEVER AND HANDLE TO BELL HOUSING (3/4 0 1)
SEE NOTE BELOWSCREW, CRANK LEVER AND HANDLE TO BELL HOUSING (3/4 0 1)
SEE NOTE BELOW -
5110-32651 HANDLE, RESERVED HOOK RELEASE - BELL HOUSING
SEE NOTE BELOWHANDLE, RESERVED HOOK RELEASE - BELL HOUSING
SEE NOTE BELOW -
5232625 LEVER, CRANK-HOOK RELEASE LINK ROD
SEE NOTE BELOWLEVER, CRANK-HOOK RELEASE LINK ROD
SEE NOTE BELOW -
5345589A3 SHAFT ASSEMBLY, SHIFT -UPPERSHAFT ASSEMBLY, SHIFT -UPPER
-
5445518A3 LEVER ASEMBLY, UPPER SHIFT SHAFTLEVER ASEMBLY, UPPER SHIFT SHAFT
-
5512-39116 WASHER, UPPER SHIFT LEVERWASHER, UPPER SHIFT LEVER
-
5610-8M0084649 SCREW, UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16)SCREW, UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16)
-
-1547-2763A9 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2187468 and belowREPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2187468 and below -
-1547-2763A9 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2187469 - 2524924REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2187469 - 2524924 -
-1547-3546A9 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2524925 - 09999999REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 120 S/N: 2524925 - 09999999 -
-1547-2763A8 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2182197 and belowREPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2182197 and below -
-1547-2763A8 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2182198 - 2495185REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2182198 - 2495185 -
-1547-3546A10 REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2495186 - 09999999REPLACEMENT PARTS - DRIVE SHAFT HOUSING ASM COMPLETE
MERCRUISER 160 S/N: 2495186 - 09999999
