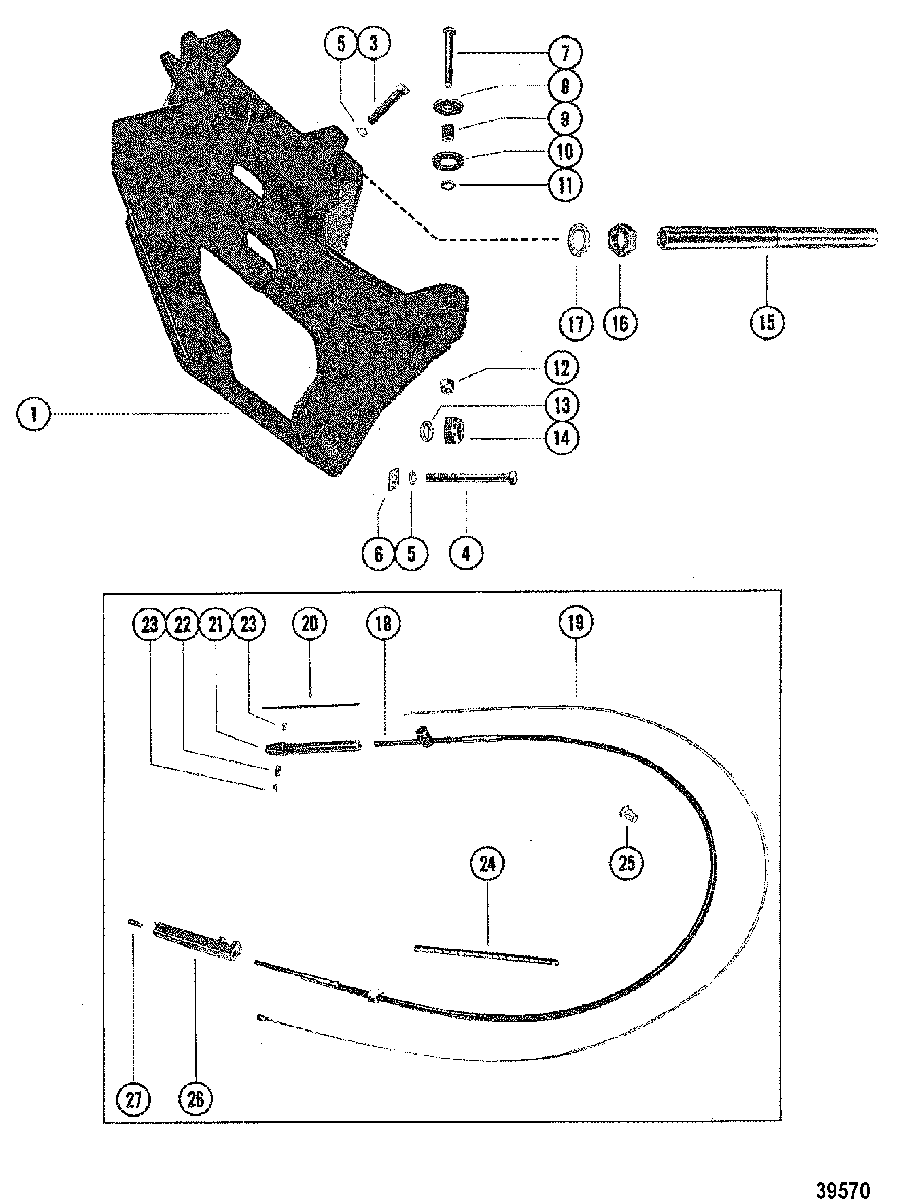

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 165 1978-1981 4890460 & Up
-
№АртикулНазвание
-
165550A2 PLATE ASSEMBLY, TRANSOM
(IN-LINE ENGINES)PLATE ASSEMBLY, TRANSOM
(IN-LINE ENGINES) -
165545A12 PLATE, TRANSOM
(V-8 ENGINES)PLATE, TRANSOM
(V-8 ENGINES) -
310-37269 SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSINGSCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
-
410-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSINGSCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
-
513-32993 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
612-37271 WASHER, SQUARE - TRANSOM PLATE SCREWWASHER, SQUARE - TRANSOM PLATE SCREW
-
710-97934 SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREWWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREW
-
923-99299 SPACER, TRANSOM PLATE SCREWSPACER, TRANSOM PLATE SCREW
-
1012-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREWWASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
-
1113-33734 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
1211-82671317 NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREWNUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
-
1312-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLTWASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1411-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLTNUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1571565A2 TUBE, STEERING
(IN-LINE-ENGINES)TUBE, STEERING
(IN-LINE-ENGINES) -
1575158T TUBE, STEERING
V-8 ENGINES-NON-POWER STRG.TUBE, STEERING
V-8 ENGINES-NON-POWER STRG. -
1611-8M0041651 NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBENUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
-
1712-37985 WASHER, STEERING CABLE GUIDE TUBEWASHER, STEERING CABLE GUIDE TUBE
-
18865436A02 CABLE ASSEMBLY, SHIFT ACTUATINGCABLE ASSEMBLY, SHIFT ACTUATING
-
19865436A02 CORE WIRE, INNER SHIFT CABLECORE WIRE, INNER SHIFT CABLE
-
2032-38377 TUBE, SHIFT ACTUATING CABLETUBE, SHIFT ACTUATING CABLE
-
2143433 GUIDE, SHIFT ACTUATING CABLE ENDGUIDE, SHIFT ACTUATING CABLE END
-
2220007 ANCHOR, SHIFT ACTUATING CABLE END GUIDEANCHOR, SHIFT ACTUATING CABLE END GUIDE
-
2310-20518 SET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDESET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
-
2438473 WRAPPING, Spiral, SHIFT ACTUATING CABLEWRAPPING, Spiral, SHIFT ACTUATING CABLE
-
2514705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDETUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
-
26865436A02 SLIDE, SHIFT ACTUATING CABLESLIDE, SHIFT ACTUATING CABLE
-
2710-31700 SCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDESCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDE
