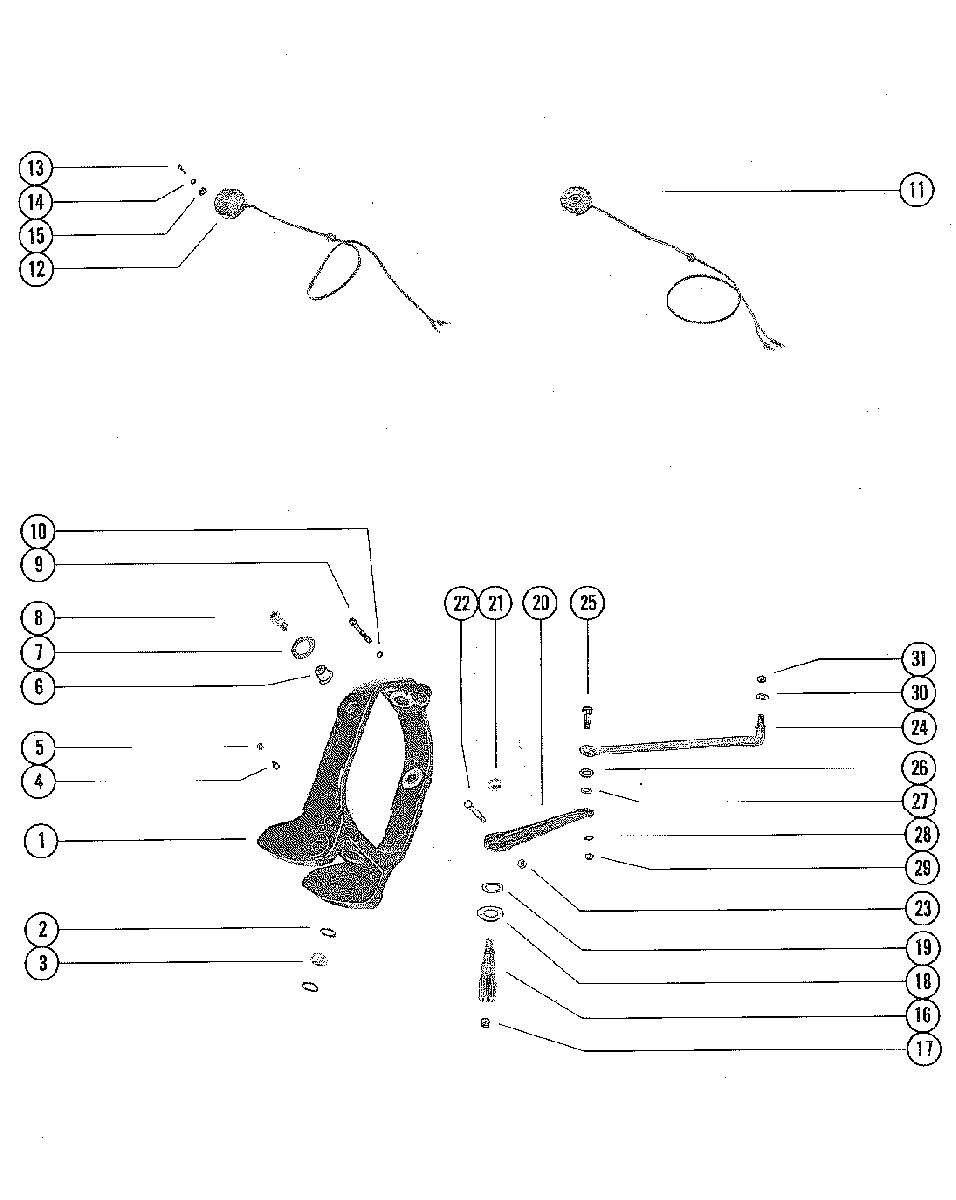

GIMBAL RING AND STEERING LEVER для Mercruiser - 215E 1970-1972 2909035 THRU 2915034
-
№АртикулНазвание
-
142385A7 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
226-54927 OIL SEAL, GIMBAL RINGOIL SEAL, GIMBAL RING
-
331-54928 ROLLER BEARING, GIMBAL RING (SWIVEL PIN)ROLLER BEARING, GIMBAL RING (SWIVEL PIN)
-
422-69059 FITTING GREASE-GIMBAL RINGFITTING GREASE-GIMBAL RING
-
519-77633Q LUBRICAP, GIMBAL RING GREASE FITTINGLUBRICAP, GIMBAL RING GREASE FITTING
-
623-54002 BUSHING, GIMBAL RING (HINGE PIN)BUSHING, GIMBAL RING (HINGE PIN)
-
712-54019 WASHER, ANTI-GALLING-BELL HOUSING (HINGE PIN)WASHER, ANTI-GALLING-BELL HOUSING (HINGE PIN)
-
817-59812 PIN, HINGE-GIMBAL RING TO HOUSING (6POINT SOCKET)PIN, HINGE-GIMBAL RING TO HOUSING (6POINT SOCKET)
-
817-59812 PIN, HINGE-GIMBAL RING TO HOUSING (12 POINT SOCKET)PIN, HINGE-GIMBAL RING TO HOUSING (12 POINT SOCKET)
-
910-45833 SCREW, UPPER SWIVEL SHAFT RETAINING-GIMBAL RING (2 1/2")SCREW, UPPER SWIVEL SHAFT RETAINING-GIMBAL RING (2 1/2")
-
1012-20546 WASHER, UPPER SWIVEL SHAFT RETAINING SCREWWASHER, UPPER SWIVEL SHAFT RETAINING SCREW
-
1163115A10 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
-
12805320A2 SENDER ASSEMBLY, TRIM INDICATOR (STARBOARD SIDE)SENDER ASSEMBLY, TRIM INDICATOR (STARBOARD SIDE)
-
1310-37978 SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")
-
1413-26996 LOCKWASHER, TRIM SENDER AND SWITCH SCREWLOCKWASHER, TRIM SENDER AND SWITCH SCREW
-
1557008 RETAINER, TRIM SENDER AND SWITCH SCREWRETAINER, TRIM SENDER AND SWITCH SCREW
-
1642385A7 SHAFT, UPPER SWIVEL-GIMBAL RING TO GIMBAL HOUSINGSHAFT, UPPER SWIVEL-GIMBAL RING TO GIMBAL HOUSING
-
1722-32561 PLUG, PIPE-UPPER SWIVEL SHAFTPLUG, PIPE-UPPER SWIVEL SHAFT
-
1812-54026 WASHER, UPPER SWIVEL SHAFT (2" O.D.)WASHER, UPPER SWIVEL SHAFT (2" O.D.)
-
1912-54027 WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)
-
2088433 LEVER, STEERING-UPPER SWIVEL SHAFTLEVER, STEERING-UPPER SWIVEL SHAFT
-
2111-8M2014641 NUT, STEERING LEVER TO UPPER SWIVEL SHAFTNUT, STEERING LEVER TO UPPER SWIVEL SHAFT
-
2210-807204 SCREW,STTERING LEVER TO UPPER SWIVEL SHAFT (2")SCREW,STTERING LEVER TO UPPER SWIVEL SHAFT (2")
-
2311-20696 NUT, STEERING LEVER SCREWNUT, STEERING LEVER SCREW
-
2467538A1 LINK ROD ASSEMBLY, STEERINGLINK ROD ASSEMBLY, STEERING
-
2510-54488 BOLT, LINK ROD TO STEERING LEVERBOLT, LINK ROD TO STEERING LEVER
-
2612-34966 WASHER, NYLON-LINK ROD BOLTWASHER, NYLON-LINK ROD BOLT
-
2713-54667 WASHER, WAVE-LINK ROD BOLTWASHER, WAVE-LINK ROD BOLT
-
2812-20086 WASHER, LINK ROD BOLTWASHER, LINK ROD BOLT
-
2911-8M0042636 NUT, LINK ROD BOLTNUT, LINK ROD BOLT
-
3012-20086 WASHER, LINK RODWASHER, LINK ROD
-
3111-8M0042636 NUT, LINK RODNUT, LINK ROD
