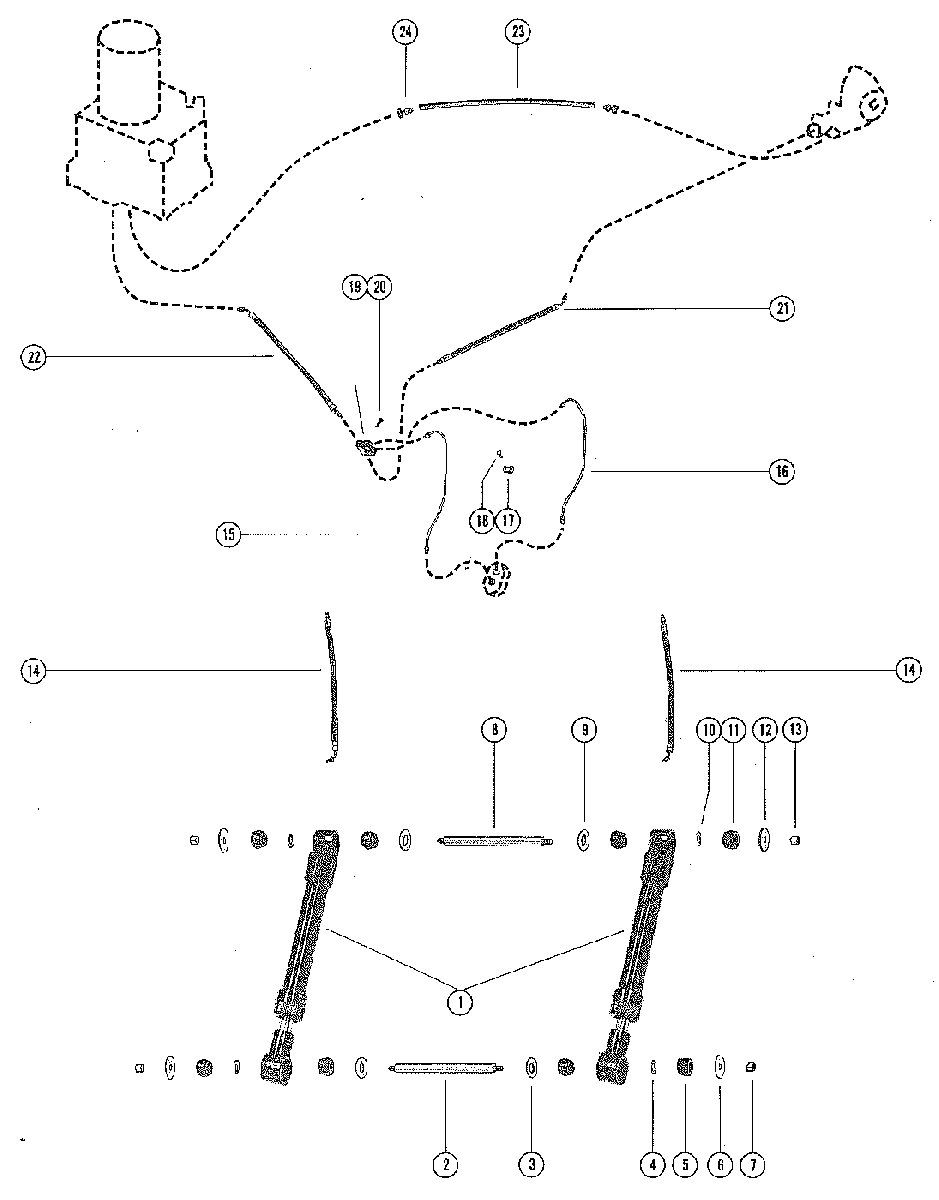

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 215H 1970 2782203 THRU 2909034
-
№АртикулНазвание
-
147342A23 TRIM CYLINDER ASSEMBLY, COMPLETE
HYDRAULIC SHIFTTRIM CYLINDER ASSEMBLY, COMPLETE
HYDRAULIC SHIFT -
147342A7 TRIM CYLINDER ASSEMBLY, COMPLETE
ELECTRIC SHIFTTRIM CYLINDER ASSEMBLY, COMPLETE
ELECTRIC SHIFT -
217-14874A1 PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")
-
312-89664 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (59/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (59/64" I.D.)
-
424-49593 SPRING, DRIVE SHAFT HOUSING ANCHOR PINSPRING, DRIVE SHAFT HOUSING ANCHOR PIN
-
523-90203 BUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PINBUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PIN
-
612-89665 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)
-
711-35000 NUT, DRIVE SHAFT HOUSING ANCHOR PINNUT, DRIVE SHAFT HOUSING ANCHOR PIN
-
817-14875A1 PIN, ANCHOR - GIMBAL RING (13 1/4")PIN, ANCHOR - GIMBAL RING (13 1/4")
-
912-89664 WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)
-
1024-49593 SPRING, GIMBAL RING ANCHOR PINSPRING, GIMBAL RING ANCHOR PIN
-
1123-90203 BUSHING, RUBBER - GIMBAL RING ANCHOR PINBUSHING, RUBBER - GIMBAL RING ANCHOR PIN
-
1212-89665 WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)
-
1311-35000 NUT, GIMBAL RING ANCHOR PINNUT, GIMBAL RING ANCHOR PIN
-
1432-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYKINDER (12 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM CYKINDER (12 1/2")
-
1532-54409 TUBING, HYDRAULIC - LOWER CONNECTOR TO UPPER CONNECTORTUBING, HYDRAULIC - LOWER CONNECTOR TO UPPER CONNECTOR
-
1632-54408 TUBING, HYDRAULIC - LOWER CONNECTOR TO UPPER CONNECTORTUBING, HYDRAULIC - LOWER CONNECTOR TO UPPER CONNECTOR
-
1754-54930 CLAMP, HYDRAULIC TUBING TO GIMBAL HOUSINGCLAMP, HYDRAULIC TUBING TO GIMBAL HOUSING
-
1810-98253 SCREW, CLAMP TO GIMBAL HOUSING (1/2")SCREW, CLAMP TO GIMBAL HOUSING (1/2")
-
1954515 CONNECTOR, HYDRAULIC - GIMBAL HOUSING (UPPER)CONNECTOR, HYDRAULIC - GIMBAL HOUSING (UPPER)
-
2010-28668 SCREW, UPPER CONNECTOR TO GIMBAL HOUSING (7/8")SCREW, UPPER CONNECTOR TO GIMBAL HOUSING (7/8")
-
2132-57833 HOSE, HYDRAULIC - CONNECTOR TO VALVE (12 3/4")
HYDRAULIC SHIFTHOSE, HYDRAULIC - CONNECTOR TO VALVE (12 3/4")
HYDRAULIC SHIFT -
2232-57830 HOSE, HYDRAULIC - CONNECTOR TO PUMP (11 3/4")
HYDRAULIC SHIFTHOSE, HYDRAULIC - CONNECTOR TO PUMP (11 3/4")
HYDRAULIC SHIFT -
2332-52951A1 TUBING ASS Y, HYDRAULIC PUMP TO REVERSE LOCK VALVE (15")
HYDRAULIC SHIFTTUBING ASS Y, HYDRAULIC PUMP TO REVERSE LOCK VALVE (15")
HYDRAULIC SHIFT -
2132-56287A1 HOSE, HYDRAULIC - CONNECTOR TO VALVE (15")
ELECTRIC SHIFTHOSE, HYDRAULIC - CONNECTOR TO VALVE (15")
ELECTRIC SHIFT -
2232-58431A1 HOSE, HYDRAULIC - CONNECTOR TO PUMP (44")
ELECTRIC SHIFTHOSE, HYDRAULIC - CONNECTOR TO PUMP (44")
ELECTRIC SHIFT -
2332-8M0111655 TUBING ASS Y, HYDRAULIC PUMP TO REVERSE LOCK VALVE (49")
ELECTRIC SHIFTTUBING ASS Y, HYDRAULIC PUMP TO REVERSE LOCK VALVE (49")
ELECTRIC SHIFT -
2422-49718 NUT, COMPRESSION - HYDRAULIC TUBING ATTACHINGNUT, COMPRESSION - HYDRAULIC TUBING ATTACHING
