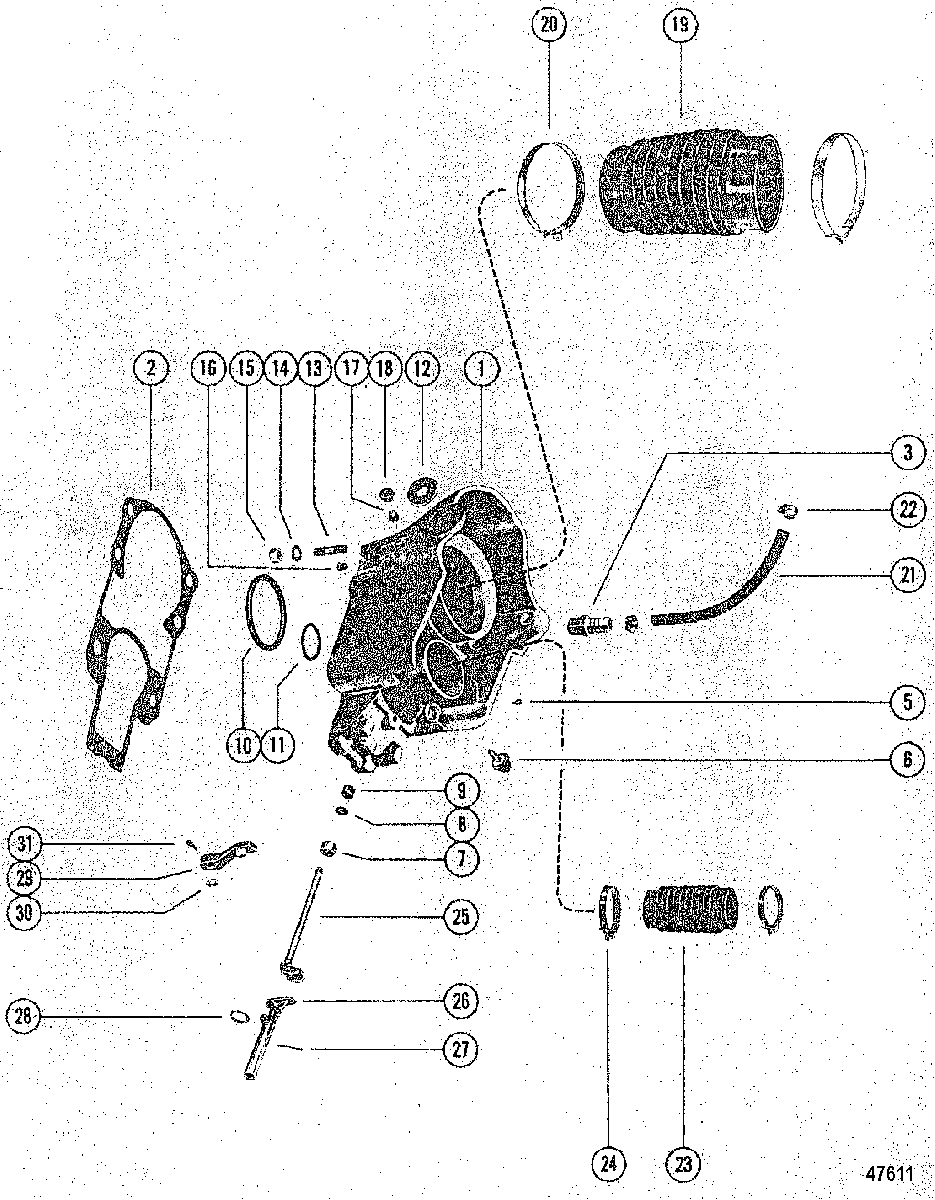

BELL HOUSING ASSEMBLY для Mercruiser - 225-S 1974 3856268 THRU 4200499
-
№АртикулНазвание
-
168417A1 BELL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)BELL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
-
142815A6 BELL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER)BELL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER)
-
227-64818Q4 GASKET, DRIVE SHAFT HSG. TO BELL HSG.
--PART OF DRIVE SHAFT HOUSING ASSEMBLYGASKET, DRIVE SHAFT HSG. TO BELL HSG.
--PART OF DRIVE SHAFT HOUSING ASSEMBLY -
322-33066 CONNECTOR, (.500-14) Straight - Brass, WATER HOSE TO BELL HOUSINGCONNECTOR, (.500-14) Straight - Brass, WATER HOSE TO BELL HOUSING
-
510-25612 SCREW, DRIVE - BELL HOUSING FLANGESCREW, DRIVE - BELL HOUSING FLANGE
-
663679 BUMPER, BELL HOUSINGBUMPER, BELL HOUSING
-
723-814308 BUSHING, BELL HOUSING (5/8")BUSHING, BELL HOUSING (5/8")
-
826-45587 SEAL, Oil, BELL HOUSINGSEAL, Oil, BELL HOUSING
-
923-805041A2 BUSHING, BELL HOUSING (5/16")BUSHING, BELL HOUSING (5/16")
-
1027-35982 GASKET, Rubber, RUBBER - BELL HOUSINGGASKET, Rubber, RUBBER - BELL HOUSING
-
1125-33504 O-RING, BELL HOUSINGO-RING, BELL HOUSING
-
1212-38000 WASHER, BELL HOUSING(WITHOUT GIMBAL TRIM SENDER)WASHER, BELL HOUSING(WITHOUT GIMBAL TRIM SENDER)
-
1212-72498 WASHER, Synthane, BELL HOUSING(WITH GIMBAL TRIM SENDER)WASHER, Synthane, BELL HOUSING(WITH GIMBAL TRIM SENDER)
-
1316-59579 STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVE SHAFT HOUSINGSTUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVE SHAFT HOUSING
-
1412-35935 WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUDWASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD
-
1511-34933 NUT, (.437-20) Stainless Steel, BELL HOUSING STUDNUT, (.437-20) Stainless Steel, BELL HOUSING STUD
-
1610-36398 SCREW, (.250-28 x .240), PLUG - BELL HOUSING (1/4")
WITHOUT GIMBALL TRIM SENDERSCREW, (.250-28 x .240), PLUG - BELL HOUSING (1/4")
WITHOUT GIMBALL TRIM SENDER -
1722-74036 FITTING, GREASE - BELL HOUSING
WITHOUT GIMBALL TRIM SENDERFITTING, GREASE - BELL HOUSING
WITHOUT GIMBALL TRIM SENDER -
1819-77633Q LUBRICAP, BELL HOUSING GREASE FITTING
WITHOUT GIMBALL TRIM SENDERLUBRICAP, BELL HOUSING GREASE FITTING
WITHOUT GIMBALL TRIM SENDER -
1960932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINTBELLOWS ASSEMBLY, UNIVERSAL JOINT
-
2054-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG.CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG.
-
2132-47642 HOSE, (49.00 Inches Bulk), BELL HOUSING TO GIMBAL HOUSINGHOSE, (49.00 Inches Bulk), BELL HOUSING TO GIMBAL HOUSING
-
2254-815504310 CLAMP, WATER HOSE ATTACHINGCLAMP, WATER HOSE ATTACHING
-
2318654A1 BELLOWS, Exhaust, EXHAUST - BELL HOUSING TO GIMBAL HOUSINGBELLOWS, Exhaust, EXHAUST - BELL HOUSING TO GIMBAL HOUSING
-
2454-815504348 CLAMP, EXHAUST BELLOWS TO BELL HOUSING AND GIMBAL HOUSINGCLAMP, EXHAUST BELLOWS TO BELL HOUSING AND GIMBAL HOUSING
-
2545589A3 SHAFT ASSEMBLY, SHIFT - UPPERSHAFT ASSEMBLY, SHIFT - UPPER
-
26621041 SHAFT, SHIFT - INTERMEDIATESHAFT, SHIFT - INTERMEDIATE
-
2718-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAININGCOTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
-
2812-32666 WASHER, INTERMEDIATE SHIFT SHAFTWASHER, INTERMEDIATE SHIFT SHAFT
-
2945518A3 LEVER ASEMBLY, UPPER SHIFT SHAFTLEVER ASEMBLY, UPPER SHIFT SHAFT
-
3012-39116 WASHER, UPPER SHIFT LEVERWASHER, UPPER SHIFT LEVER
-
3110-8M0084649 SCREW, (.250-28), UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16")SCREW, (.250-28), UPPER SHIFT LEVER TO SHIFT SHAFT (1 1/16")
