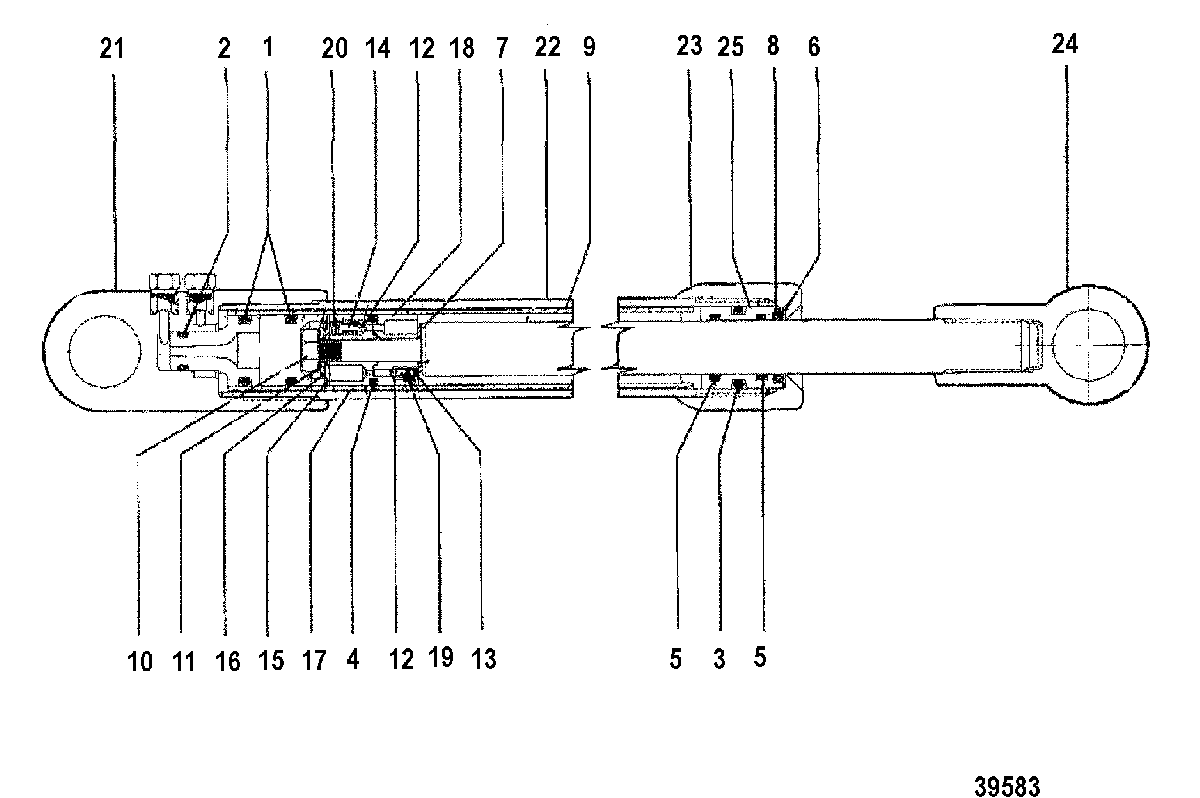

POWER TRIM CYLINDER REPAIR KITS(INTERNAL LINE) для Mercruiser - 228 1978-1982 4898730 THRU 6225576
-
№АртикулНазвание
-
-45522A3 REPAIR KIT, Pivot EndREPAIR KIT, Pivot End
-
-25-60342A2 O-RING KITO-RING KIT
-
1N.S.S. Not Sold Separate, O-Ring (3/4"X1X5/32")Not Sold Separate, O-Ring (3/4"X1X5/32")
-
2N.S.S. Not Sold Separate, O-Ring (3/8"X9/16"X3/32")Not Sold Separate, O-Ring (3/8"X9/16"X3/32")
-
3N.S.S. Not Sold Separate, O-Ring (7/8"X1 1/8"X1/8")Not Sold Separate, O-Ring (7/8"X1 1/8"X1/8")
-
4N.S.S. Not Sold Separate, O-Ring (13/16"X3/32 SQ.)Not Sold Separate, O-Ring (13/16"X3/32 SQ.)
-
5N.S.S. Not Sold Separate, O-Ring (3/4"X15/16"X1/8")Not Sold Separate, O-Ring (3/4"X15/16"X1/8")
-
6N.S.S. Not Sold Separate, Washer, PLAIN-END CAPNot Sold Separate, Washer, PLAIN-END CAP
-
7N.S.S. Not Sold Separate, Washer, SEALINGNot Sold Separate, Washer, SEALING
-
8N.S.S. Not Sold Separate, Rod ScraperNot Sold Separate, Rod Scraper
-
9N.S.S. Not Sold Separate, Tube, INNERNot Sold Separate, Tube, INNER
-
10N.S.S. Not Sold Separate, Nut, PISTON RODNot Sold Separate, Nut, PISTON ROD
-
11N.S.S. Not Sold Separate, Washer, PISTON ROD NUTNot Sold Separate, Washer, PISTON ROD NUT
-
12N.S.S. Not Sold Separate, Ball, STEELNot Sold Separate, Ball, STEEL
-
13N.S.S. Not Sold Separate, Spring, BY-PASSNot Sold Separate, Spring, BY-PASS
-
14N.S.S. Not Sold Separate, Rivet, TUBULARNot Sold Separate, Rivet, TUBULAR
-
15N.S.S. Not Sold Separate, Washer, SHOCK PISTONNot Sold Separate, Washer, SHOCK PISTON
-
16N.S.S. Not Sold Separate, Washer, SHOCK PISTONNot Sold Separate, Washer, SHOCK PISTON
-
17N.S.S. Not Sold Separate, Piston, SHOCK-IMPACTNot Sold Separate, Piston, SHOCK-IMPACT
-
18N.S.S. Not Sold Separate, Piston, SHOCK-RETURNNot Sold Separate, Piston, SHOCK-RETURN
-
19N.S.S. Not Sold Separate, EyeletNot Sold Separate, Eyelet
-
20N.S.S. Not Sold Separate, Spring, COMPRESSIONNot Sold Separate, Spring, COMPRESSION
-
--77442A1 REPAIR KIT, Outer TubeREPAIR KIT, Outer Tube
-
21N.S.S. Not Sold Separate, End Cap-Gimbal ringNot Sold Separate, End Cap-Gimbal ring
-
22N.S.S. Not Sold Separate, Tube, OUTERNot Sold Separate, Tube, OUTER
-
2377442A1 END CAPEND CAP
-
2445522T1 PIVOT ENDPIVOT END
-
2545726 BEARING, PISTON RODBEARING, PISTON ROD
