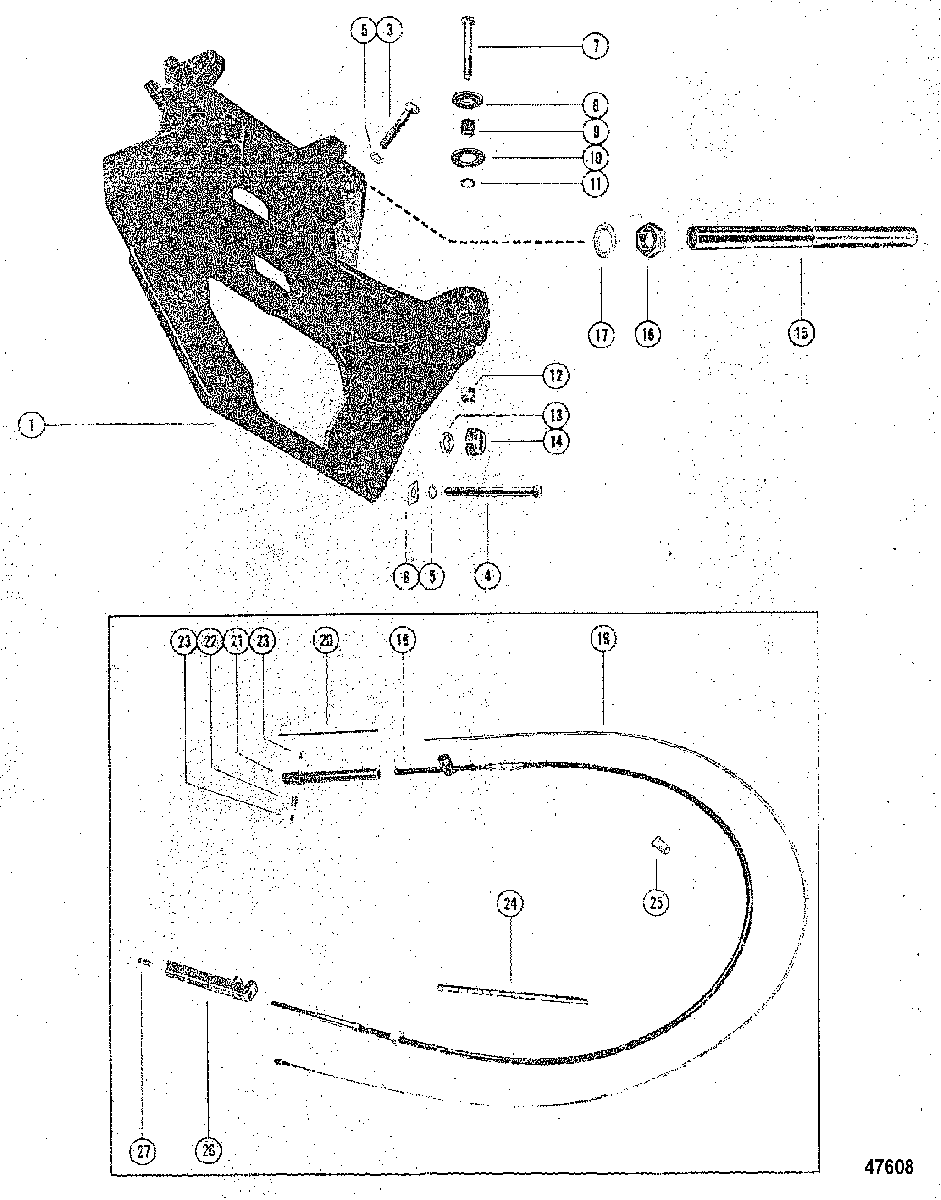

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 233 1975-1977 4200500 & Up
-
№АртикулНазвание
-
165545A12 PLATE, TRANSOM(WITHOUT GIMBAL TRIM SENDER)PLATE, TRANSOM(WITHOUT GIMBAL TRIM SENDER)
-
165545A12 PLATE, TRANSOM(WITH GIMBAL TRIM SENDER)PLATE, TRANSOM(WITH GIMBAL TRIM SENDER)
-
310-37269 SCREW, (.437-14 x 2.00), TRANSOM PLATETO GIMBAL HOUSING (2")SCREW, (.437-14 x 2.00), TRANSOM PLATETO GIMBAL HOUSING (2")
-
410-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
-
513-32993 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
612-37271 WASHER, SQUARE - TRANSOM PLATE SCREWWASHER, SQUARE - TRANSOM PLATE SCREW
-
710-97934 SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREWWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREW
-
923-99299 SPACER, TRANSOM PLATE SCREWSPACER, TRANSOM PLATE SCREW
-
1012-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREWWASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
-
1113-33734 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
1211-82671317 NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREWNUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
-
1312-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLTWASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1411-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLTNUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1575158T TUBE, STEERING CABLE GUIDE (7/8" O.D.)TUBE, STEERING CABLE GUIDE (7/8" O.D.)
-
1611-8M0041651 NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBENUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
-
1712-37985 WASHER, STEERING CABLE GUIDE TUBEWASHER, STEERING CABLE GUIDE TUBE
-
18865436A02 CABLE ASSEMBLY, SHIFT ACTUATING
SN# 4428019 & BelowCABLE ASSEMBLY, SHIFT ACTUATING
SN# 4428019 & Below -
18865436A02 CABLE ASSEMBLY, SHIFT ACTUATING
SN# 4428020 & UpCABLE ASSEMBLY, SHIFT ACTUATING
SN# 4428020 & Up -
19865436A02 CORE WIRE, INNER SHIFT CABLECORE WIRE, INNER SHIFT CABLE
-
2032-38377 TUBE, SHIFT ACTUATING CABLETUBE, SHIFT ACTUATING CABLE
-
2143433 GUIDE, SHIFT ACTUATING CABLE ENDGUIDE, SHIFT ACTUATING CABLE END
-
2220007 ANCHOR, SHIFT ACTUATING CABLE END GUIDEANCHOR, SHIFT ACTUATING CABLE END GUIDE
-
2310-20518 SET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDESET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
-
2438473 WRAPPING, Spiral, SHIFT ACTUATING CABLEWRAPPING, Spiral, SHIFT ACTUATING CABLE
-
2514705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDETUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
-
26865436A02 SLIDE, SHIFT ACTUATING CABLESLIDE, SHIFT ACTUATING CABLE
-
2710-31700 SCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDESCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDE
Все узлы модели:
- BELL HOUSING ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GIMBAL HOUSING ASSEMBLY
- GIMBAL RING ASSEMBLY AND STEERING LEVER
- HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL
- HYDRAULIC PUMP ASSEMBLY, COMPLETE
- POWER TRIM CYLINDER REPAIR KITS(INTERNAL LINE)
- • TRANSOM PLATE AND SHIFT CABLE
- TRIM CYLINDERS AND HYDRAULIC HOSES
