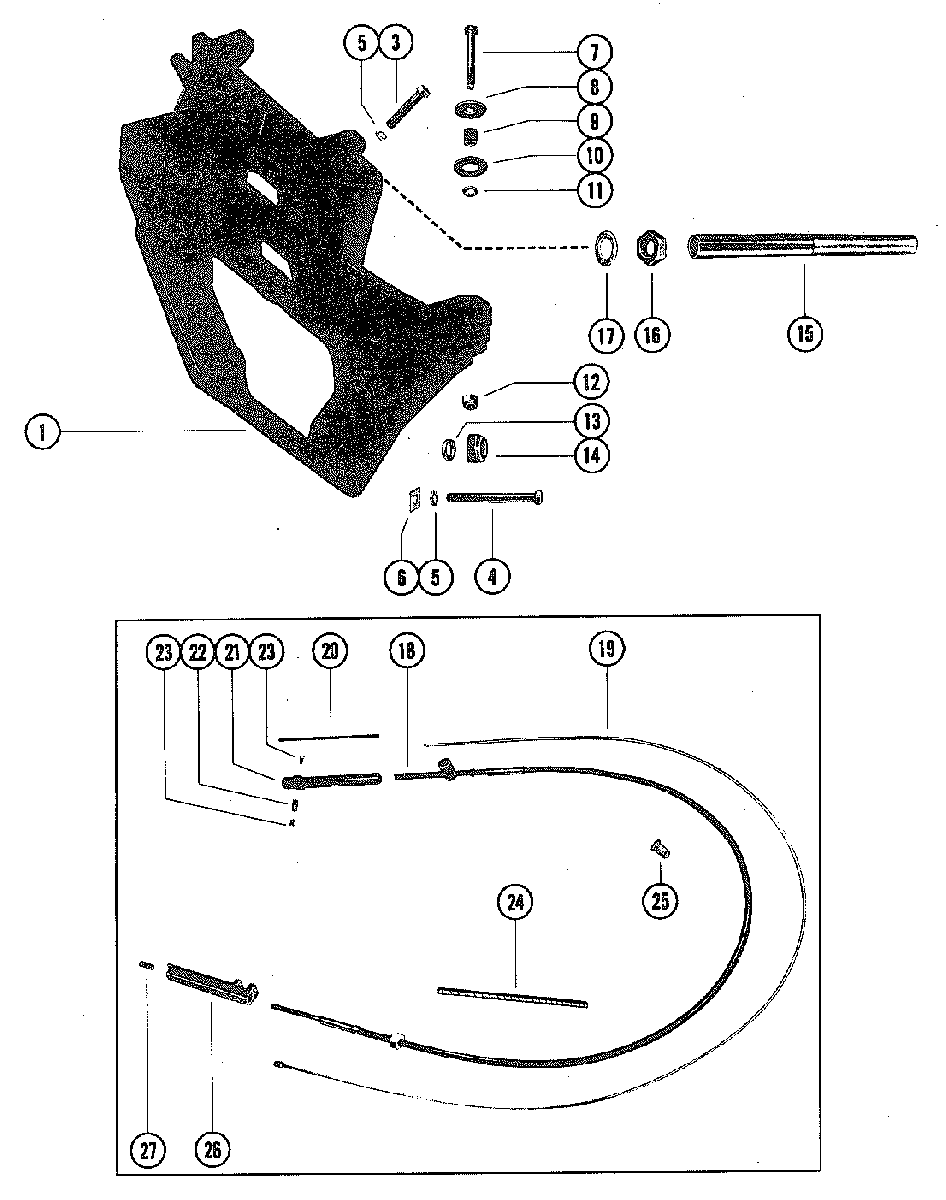

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 250 1977 4791300 THRU 4898729
-
№АртикулНазвание
-
165545A12 PLATE, TRANSOMPLATE, TRANSOM
-
310-37269 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2")SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2")
-
410-37268 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
-
513-32993 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
612-37271 WASHER, SQUARE - TRANSOM PLATE SCREWWASHER, SQUARE - TRANSOM PLATE SCREW
-
710-97934 SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")
-
812-28421 WASHER, TRANSOM PLATE SCREWWASHER, TRANSOM PLATE SCREW
-
923-99299 SPACER, TRANSOM PLATE SCREWSPACER, TRANSOM PLATE SCREW
-
1012-32834 WASHER, TRANSOM PLATE SCREWWASHER, TRANSOM PLATE SCREW
-
1113-33734 LOCKWASHER, TRANSOM PLATE SCREWLOCKWASHER, TRANSOM PLATE SCREW
-
1211-82671317 NUT, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREWNUT, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
-
1312-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLTWASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1411-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLTNUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1575158T TUBE, STEERING CABLE GUIDE (7/8" O.D.)
NOT USED ON MERCRUSIER 250TUBE, STEERING CABLE GUIDE (7/8" O.D.)
NOT USED ON MERCRUSIER 250 -
1611-8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE
NOT USED ON MERCRUSIER 250NUT, JAM - STEERING CABLE GUIDE TUBE
NOT USED ON MERCRUSIER 250 -
1712-37985 WASHER, STEERING CABLE GUIDE TUBE
NOT USED ON MERCRUSIER 250WASHER, STEERING CABLE GUIDE TUBE
NOT USED ON MERCRUSIER 250 -
18865436A02 CABLE ASSEMBLY, SHIFT ACTUATINGCABLE ASSEMBLY, SHIFT ACTUATING
-
19865436A02 CORE WIRE ASS'Y, INNER SHIFT CABLECORE WIRE ASS'Y, INNER SHIFT CABLE
-
2032-38377 TUBE, SHIFT ACTUATING CABLETUBE, SHIFT ACTUATING CABLE
-
2143433 GUIDE, SHIFT ACTUATING CABLE ENDGUIDE, SHIFT ACTUATING CABLE END
-
2220007 ANCHOR, SHIFT ACTUATING CABLE END GUIDEANCHOR, SHIFT ACTUATING CABLE END GUIDE
-
2310-20518 SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDESCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
-
2438473 WRAPPING, SHIFT ACTUATING CABLEWRAPPING, SHIFT ACTUATING CABLE
-
2514705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDETUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
-
26865436A02 SLIDE, SHIFT ACTUATING CABLESLIDE, SHIFT ACTUATING CABLE
-
2710-31700 SCREW, SET - SHIFT ACTUATING CABLE TO SLIDESCREW, SET - SHIFT ACTUATING CABLE TO SLIDE
