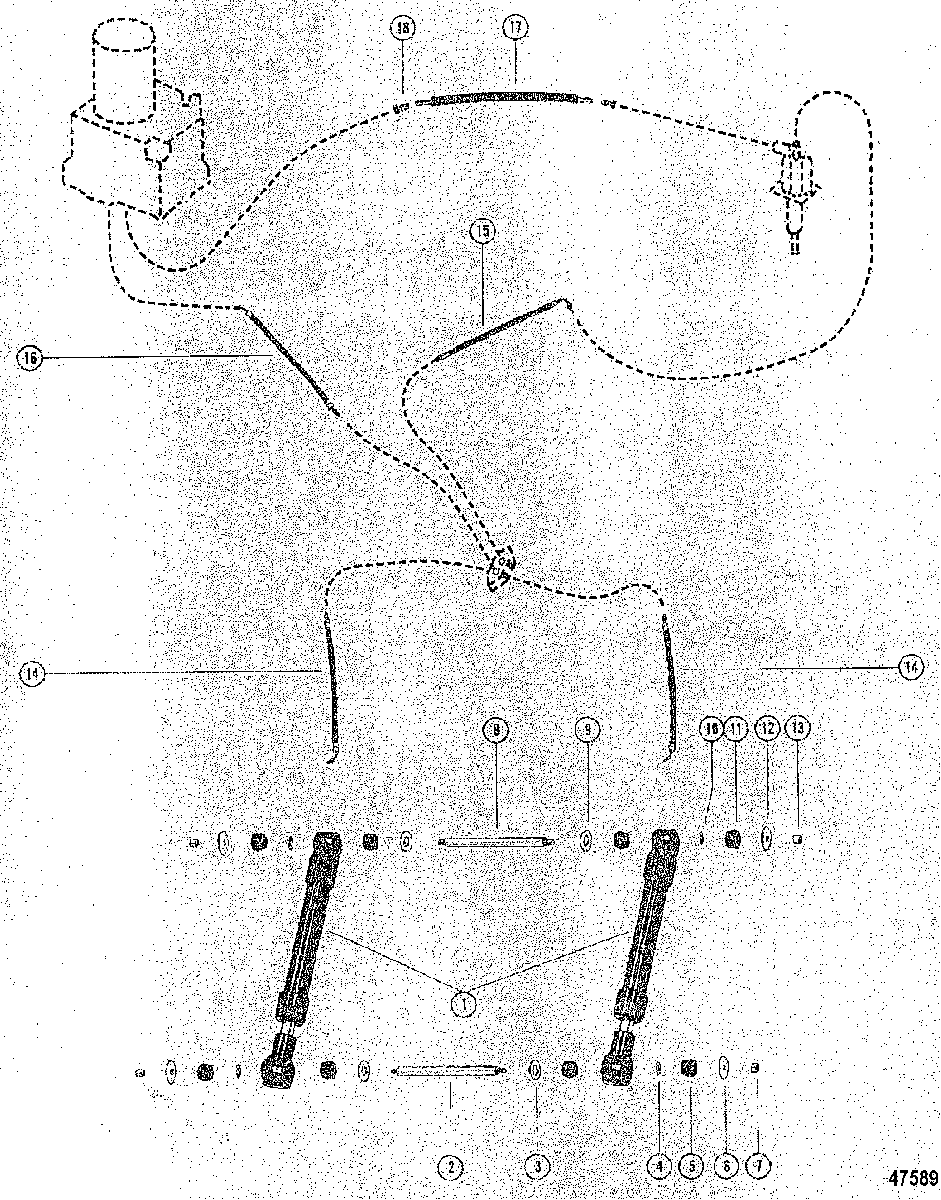

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 255-TRS 1973-1974 3377316 THRU 4203749
-
№АртикулНазвание
-
147342A23 CYLINDER ASSEMBLY, COMPLETE (SEE NOTE BELOW)CYLINDER ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
217-14874A1 PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")
-
312-89664 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (59/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (59/64" I.D.)
-
424-49593 SPRING, DRIVE SHAFT HOUSING ANCHOR PINSPRING, DRIVE SHAFT HOUSING ANCHOR PIN
-
523-90203 BUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PINBUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PIN
-
612-89665 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)
-
711-35000 NUT, (.500-20) Stainless Steel, DRIVE SHAFT HOUSING ANCHOR PINNUT, (.500-20) Stainless Steel, DRIVE SHAFT HOUSING ANCHOR PIN
-
817-14875A1 PIN, ANCHOR - GIMBAL RING (13 1/4")PIN, ANCHOR - GIMBAL RING (13 1/4")
-
912-89664 WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)
-
1024-49593 SPRING, GIMBAL RING ANCHOR PINSPRING, GIMBAL RING ANCHOR PIN
-
1123-90203 BUSHING, RUBBER - GIMBAL RING ANCHOR PINBUSHING, RUBBER - GIMBAL RING ANCHOR PIN
-
1212-89665 WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)
-
1311-35000 NUT, (.500-20) Stainless Steel, GIMBAL RING ANCHOR PINNUT, (.500-20) Stainless Steel, GIMBAL RING ANCHOR PIN
-
1432-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
-
1532-63158A1 HOSE, HYDRAULIC - CONNECTOR TO VALVE (25")HOSE, HYDRAULIC - CONNECTOR TO VALVE (25")
-
1632-63157A1 HOSE, HYDRAULIC - CONNECTOR TO PUMP (50 1/2")HOSE, HYDRAULIC - CONNECTOR TO PUMP (50 1/2")
-
1732-8M0111655 TUBING, HYDRAULIC PUMP TO REVERSE LOCK VALVE (49")TUBING, HYDRAULIC PUMP TO REVERSE LOCK VALVE (49")
-
1822-49718 NUT, COMPRESSION - HYDRAULIC TUBING ATTACHINGNUT, COMPRESSION - HYDRAULIC TUBING ATTACHING
