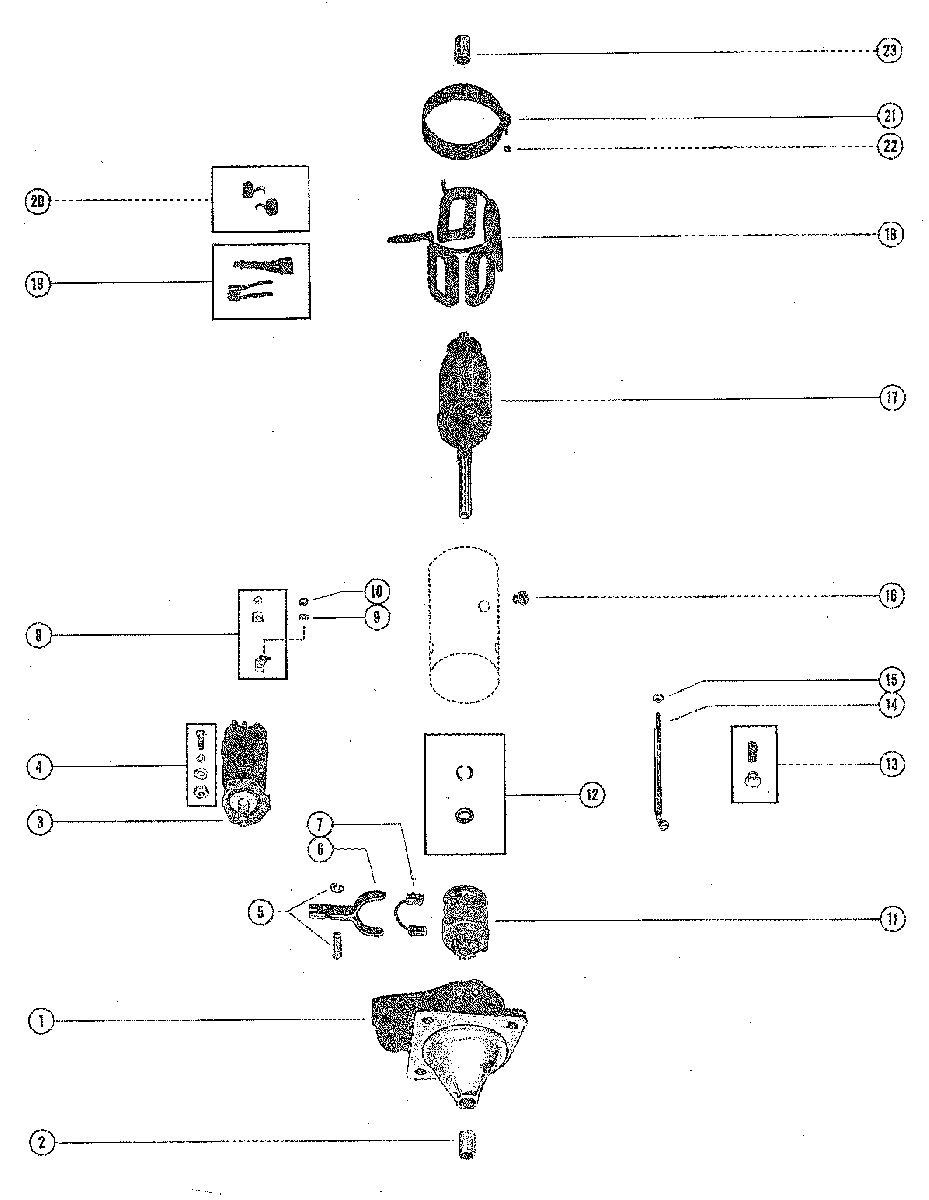

STARTER MOTOR ASSEMBLY для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
50-58059 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
146649 HOUSING, STARTERHOUSING, STARTER
-
223-37154 BUSHING, STARTER HOUSINGBUSHING, STARTER HOUSING
-
346641 STARTER SOLENOID, STARTER HOUSINGSTARTER SOLENOID, STARTER HOUSING
-
410-46665 SCREW KIT, STARTER SOLENOID TO STARTER HOUSINGSCREW KIT, STARTER SOLENOID TO STARTER HOUSING
-
517-46644 PIN ASSEMBLY, SOLENOID ARM TO STARTER HOUSINGPIN ASSEMBLY, SOLENOID ARM TO STARTER HOUSING
-
646645 ARM, STARTER SOLENOIDARM, STARTER SOLENOID
-
746646 INSERT, STARTER SOLENOID ARMINSERT, STARTER SOLENOID ARM
-
811-46664 NUT AND TERMINAL KIT, STARTER SOLENOIDNUT AND TERMINAL KIT, STARTER SOLENOID
-
913-27660 LOCKWASHER, STARTER SOLENOID TERMINALLOCKWASHER, STARTER SOLENOID TERMINAL
-
1011-46648 NUT, STARTER SOLENOID TERMINALNUT, STARTER SOLENOID TERMINAL
-
1146650 DRIVE ASSEMBLY, CLUTCHDRIVE ASSEMBLY, CLUTCH
-
1223-46651 BUSHING ASSEMBLY, CLUTCH DRIVE RETAININGBUSHING ASSEMBLY, CLUTCH DRIVE RETAINING
-
1346655 GROMMET KIT, STARTER HOUSINGGROMMET KIT, STARTER HOUSING
-
1410-46652 BOLT, THRU- STARTER HOUSINGBOLT, THRU- STARTER HOUSING
-
1511-46654 NUT, STARTER HOUSING THRU BOLTNUT, STARTER HOUSING THRU BOLT
-
1610-46653 SCREW, STARTER FIELD COILSCREW, STARTER FIELD COIL
-
1746656 ARMATUREARMATURE
-
1846657 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
1946661 BRUSH KIT, STARTER (POSITIVE AND NEGATIVE)BRUSH KIT, STARTER (POSITIVE AND NEGATIVE)
-
2024-46662 SPRING KIT, STARTER BRUSHSPRING KIT, STARTER BRUSH
-
2146658 BAND, STARTER MOTORBAND, STARTER MOTOR
-
2211-46659 NUT, STARTER MOTOR BAND SCREWNUT, STARTER MOTOR BAND SCREW
-
2323-37154 BUSHING, END COVERBUSHING, END COVER
