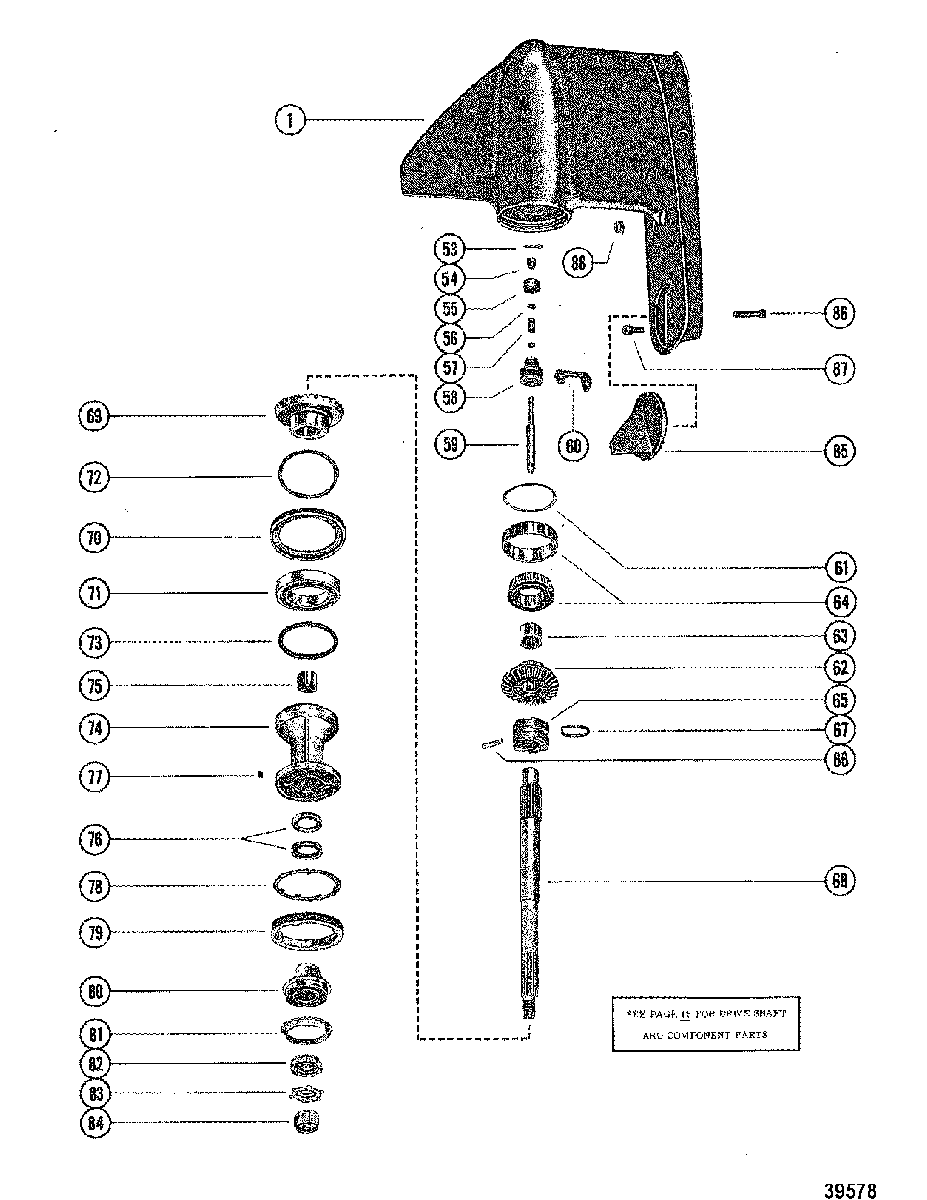

GEAR HOUSING ASSEMBLY для Mercruiser - 898 1978-1982 4898730 THRU 6225576
-
№АртикулНазвание
-
-1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11623-5356A4 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
5318-469501 COTTON PIN, CLUTCH ACTUATING SHAFTCOTTON PIN, CLUTCH ACTUATING SHAFT
-
54N.S.S. Not Sold Separate, SLEEVE, ADJUSTING (REPLACED BY 19755A2)Not Sold Separate, SLEEVE, ADJUSTING (REPLACED BY 19755A2)
-
55N.S.S. Not Sold Separate, RETAINER, SPRING (REPLACED BY 19755A2)Not Sold Separate, RETAINER, SPRING (REPLACED BY 19755A2)
-
56N.S.S. Not Sold Separate, WASHER (REPLACED BY 19755A2)Not Sold Separate, WASHER (REPLACED BY 19755A2)
-
57N.S.S. Not Sold Separate, SPRING (REPLACED BY 19755A2)Not Sold Separate, SPRING (REPLACED BY 19755A2)
-
58N.S.S. Not Sold Separate, SPOOL (REPLACED BY 19755A2)Not Sold Separate, SPOOL (REPLACED BY 19755A2)
-
59N.S.S. Not Sold Separate, SHAFT (REPLACED BY 19755A2)Not Sold Separate, SHAFT (REPLACED BY 19755A2)
-
-818349T1 SHIFT SPOOL KITSHIFT SPOOL KIT
-
608M2009865 CRANK, ShiftCRANK, Shift
-
6115-47397A1 SHIM SETSHIM SET
-
62N.S.S. Not Sold Separate, FORWARD GEAR (PART OF 43-96084A4)Not Sold Separate, FORWARD GEAR (PART OF 43-96084A4)
-
6331-30895T BEARING, NeedleBEARING, Needle
-
6431-35928T1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
6552-853594T CLUTCHCLUTCH
-
6617-8M0100263 PIN, CrossPIN, Cross
-
6724-30893 SPRING, RETAINER-CROSS PINSPRING, RETAINER-CROSS PIN
-
6844-8M0140440 PROPELLER SHAFTPROPELLER SHAFT
-
69N.S.S. Not Sold Separate, REVERSE GEAR (PART OF 43-96084A4)Not Sold Separate, REVERSE GEAR (PART OF 43-96084A4)
-
7035915 THRUST RING, BEARING CARRIERTHRUST RING, BEARING CARRIER
-
7130-88957T BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
7215-97166 SHIMSHIM
-
7325-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
7473020A14 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7531-30956T BEARING, NeedleBEARING, Needle
-
7626-76868 SEALSEAL
-
7728-30281 KEYKEY
-
7814-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
798M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
8056292Q04 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8112-35965 WASHER, CUPPEDWASHER, CUPPED
-
8212-31211Q03 WASHER, Splined, PROPELLER SHAFTWASHER, Splined, PROPELLER SHAFT
-
8314-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8411-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
8597-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
(2-3/8")TRIM TAB ASSEMBLY, GEAR HOUSING
(2-3/8") -
8534127T2 TRIM TAB ASSEMBLY, GEAR HOUSING
(4")TRIM TAB ASSEMBLY, GEAR HOUSING
(4") -
8610-32470 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
8710-30206 SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVESHAFT HOUSINGSCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVESHAFT HOUSING
-
8811-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING TO GEAR HOUSING STUDNUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING TO GEAR HOUSING STUD
-
-43-96084A08 GEAR REPLACEMENT KIT, COMPLETEGEAR REPLACEMENT KIT, COMPLETE
-
-26-33144A2 SEAL KITSEAL KIT
