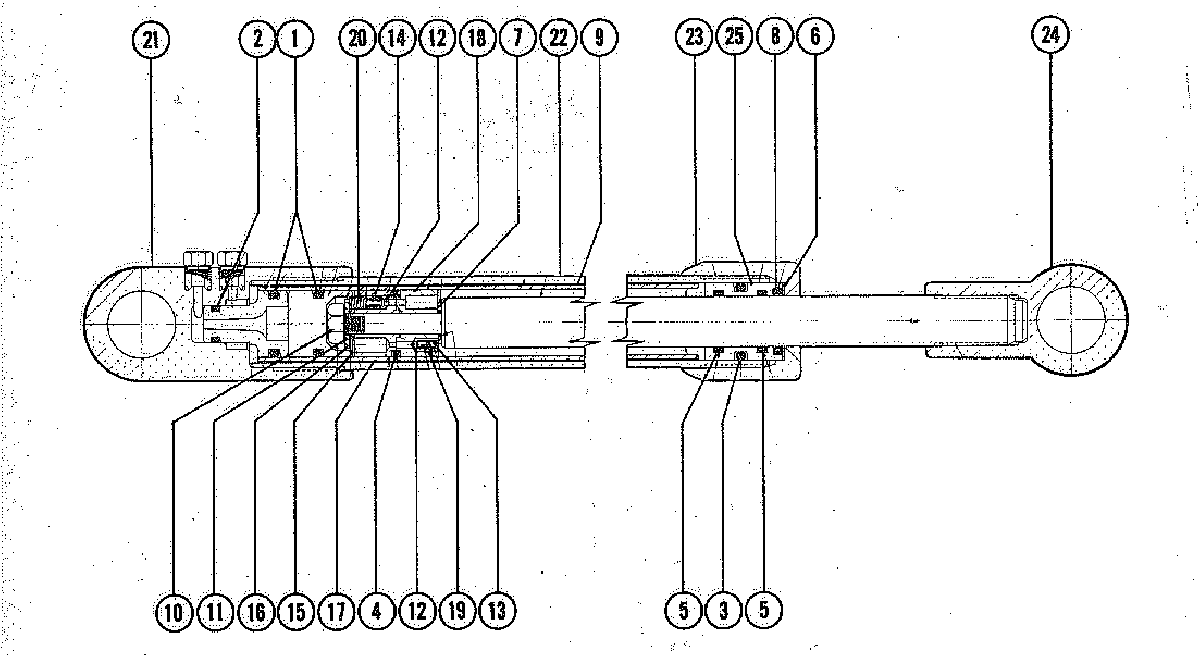

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - 898/228 1977 4782330 THRU 4898729
-
№АртикулНазвание
-
-45522A3 OVERHAUL KITOVERHAUL KIT
-
-25-60342A2 "O" RING KIT"O" RING KIT
-
1N.S.S. "O"RING (3/4" X 1 X 5/32")"O"RING (3/4" X 1 X 5/32")
-
2N.S.S. "O"RING (3/8" X 9/16" X 3/32")"O"RING (3/8" X 9/16" X 3/32")
-
3N.S.S. "O"RING (7/8" X 11/8" X 1/8")"O"RING (7/8" X 11/8" X 1/8")
-
4N.S.S. "O"RING (13/16" X 3/32 SQ.)"O"RING (13/16" X 3/32 SQ.)
-
5N.S.S. "O" RING (3/4" X 15/16" X 1/8")."O" RING (3/4" X 15/16" X 1/8").
-
6N.S.S. WASHER, PLAIN-END CAPWASHER, PLAIN-END CAP
-
7N.S.S. WASHER, SEALINGWASHER, SEALING
-
8N.S.S. ROD SCRAPERROD SCRAPER
-
9N.S.S. TUBE, INNERTUBE, INNER
-
10N.S.S. NUT, PISTON RODNUT, PISTON ROD
-
11N.S.S. WASHER, PISTON ROD NUTWASHER, PISTON ROD NUT
-
12N.S.S. BALL, STEELBALL, STEEL
-
13N.S.S. SPRING, BY-PASSSPRING, BY-PASS
-
14N.S.S. RIVET, TUBULARRIVET, TUBULAR
-
15N.S.S. WASHER, SHOCK PISTONWASHER, SHOCK PISTON
-
16N.S.S. WASHER, SHOCK PISTONWASHER, SHOCK PISTON
-
17N.S.S. POSTON, SHOCK-IMPACTPOSTON, SHOCK-IMPACT
-
18N.S.S. PISTON, SHOCK-RETURNPISTON, SHOCK-RETURN
-
19N.S.S. EYELETEYELET
-
20N.S.S. SPRING,COMPRESSIONSPRING,COMPRESSION
-
--77442A1 TUBE KITTUBE KIT
-
21N.S.S. END CAP-GIMBAL RINGEND CAP-GIMBAL RING
-
22N.S.S. TUBE, OUTERTUBE, OUTER
-
23N.S.S. END CAPEND CAP
-
2445522T1 PIVOT ENDPIVOT END
-
2545726 BEARING, PISTON RODBEARING, PISTON ROD
Все узлы модели:
- BELL HOUSING ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GIMBAL HOUSING ASSEMBLY
- GIMBAL RING ASSEMBLY AND STEERING LEVER
- HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL
- HYDRAULIC PUMP ASSEMBLY, COMPLETE
- POWER STEERING KIT
- • POWER TRIM CYLINDER REPAIR KITS
- SHIFT BRACKET AND REVERSE LOCK VALVE
- TRANSOM PLATE AND SHIFT CABLE
- TRIM CYLINDERS AND HYDRAULIC HOSES
