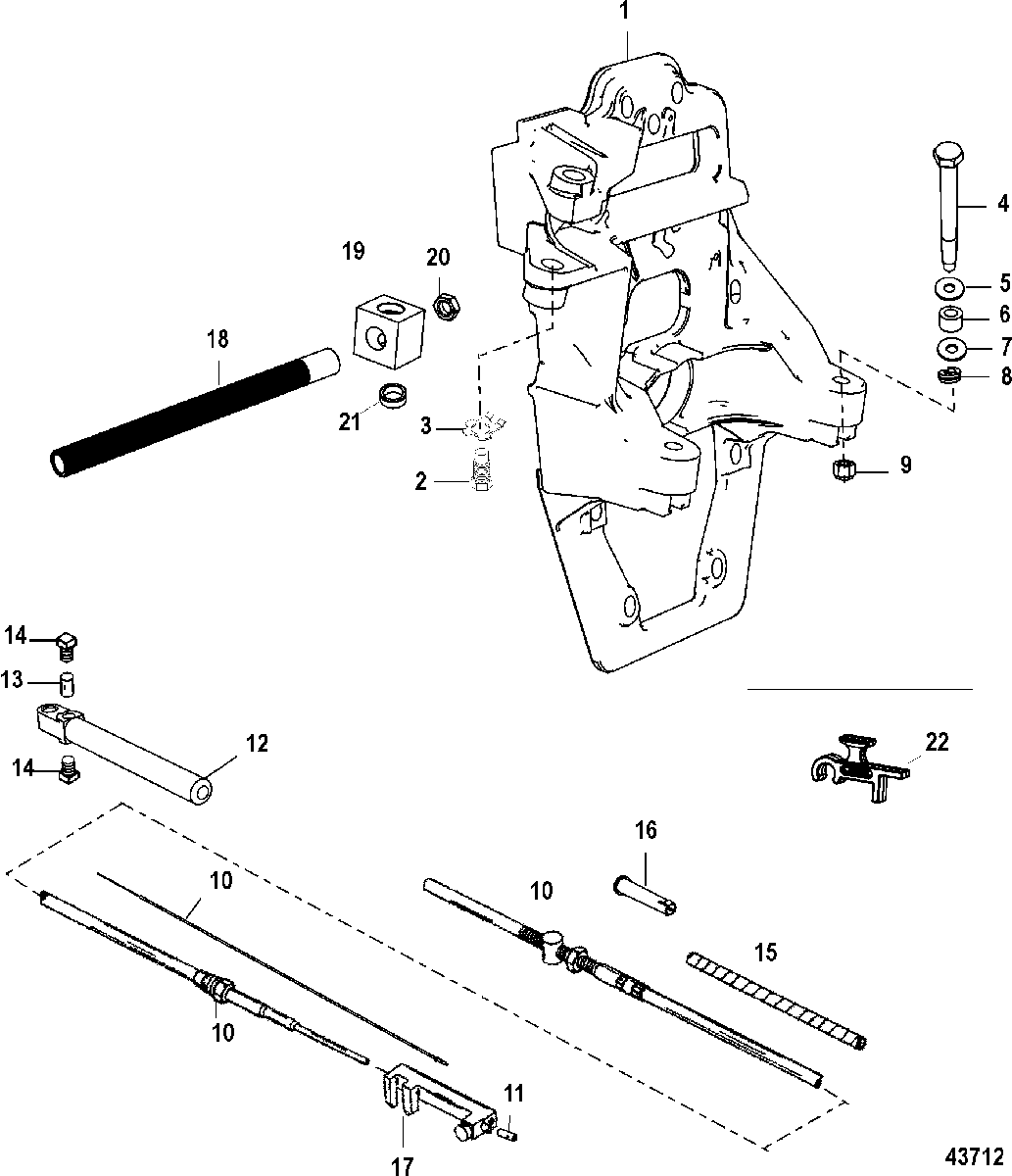

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
210-8M0113173 BOLTBOLT
-
314-42254 WASHERWASHER
-
410-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
512-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
623-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
712-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
813-33734 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
911-863332 NUT, (.500-20)NUT, (.500-20)
-
10865436A02 CABLE ASSEMBLY, ShiftCABLE ASSEMBLY, Shift
-
1110-31700 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
-43433A01 GUIDE KITGUIDE KIT
-
1243433 GUIDEGUIDE
-
1343436 ANCHORANCHOR
-
1410-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
1538473 WRAPPING, SpiralWRAPPING, Spiral
-
16861632T INSERT (3.28 Inches)INSERT (3.28 Inches)
-
1614705 INSERT (.78 Inches)INSERT (.78 Inches)
-
17865436A02 SLIDESLIDE
-
-95846A3 TUBE ASSEMBLY, Steering
(Non Power Steering)TUBE ASSEMBLY, Steering
(Non Power Steering) -
1896400 TUBE, Steering
(Non Power Steering)TUBE, Steering
(Non Power Steering) -
1995846 SWIVEL BLOCK
(Non Power Steering)SWIVEL BLOCK
(Non Power Steering) -
2011-47525 NUT, (.875-14)
(Non Power Steering)NUT, (.875-14)
(Non Power Steering) -
2123-95803 BUSHING
(Non Power Steering)BUSHING
(Non Power Steering) -
2291-865232 TOOL, Shift SlideTOOL, Shift Slide
