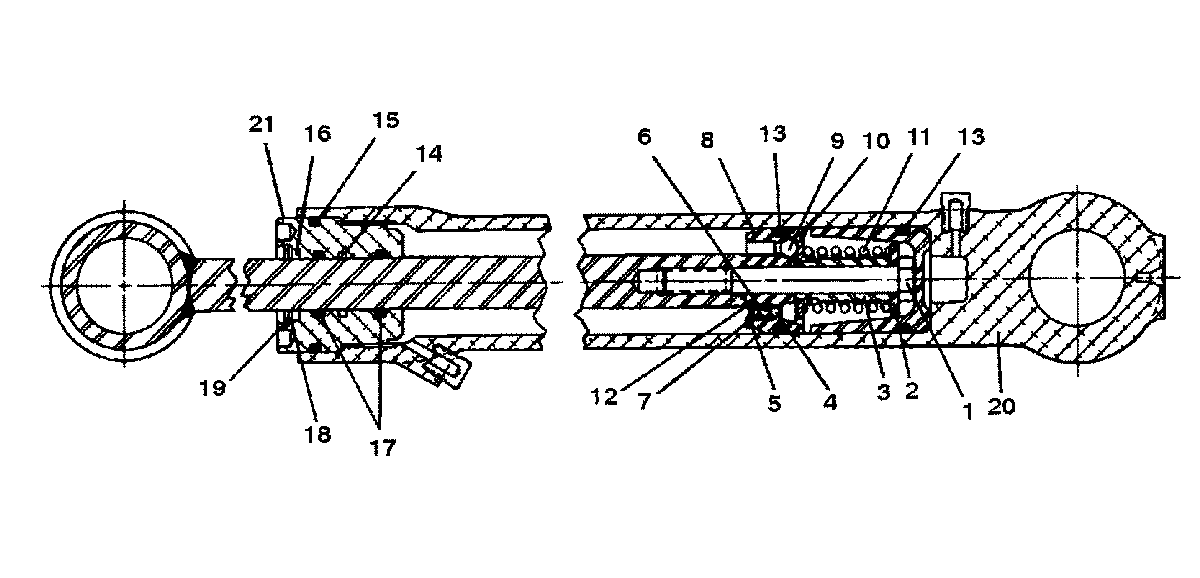

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - BLACKHAWK 1994-1995 ALL
-
№АртикулНазвание
-
-87399A2 OVERHAUL KITOVERHAUL KIT
-
1N.S.S. SCREW (10-15-X 3-3/8)SCREW (10-15-X 3-3/8)
-
2N.S.S. WASHERWASHER
-
3N.S.S. GUIDEGUIDE
-
4N.S.S. STEEL BALL (.109 DIA.)STEEL BALL (.109 DIA.)
-
5N.S.S. PINPIN
-
6N.S.S. SPRINGSPRING
-
7N.S.S. EYELETEYELET
-
8N.S.S. PISTONPISTON
-
9N.S.S. BALL (.250 DIA.)BALL (.250 DIA.)
-
10N.S.S. PUSHERPUSHER
-
11N.S.S. SPRINGSPRING
-
-25-87400A2 SEAL KITSEAL KIT
-
12N.S.S. O-RINGO-RING
-
13N.S.S. O-RINGO-RING
-
14N.S.S. SPRINGSPRING
-
15N.S.S. O-RINGO-RING
-
16N.S.S. SCRAPER RODSCRAPER ROD
-
17N.S.S. O-RINGO-RING
-
18N.S.S. WASHERWASHER
-
19N.S.S. RETAINING RINGRETAINING RING
-
2098703T TUBE
(PORT)TUBE
(PORT) -
2098704T TUBE
(STARBOARD)TUBE
(STARBOARD) -
2198-8M0118340 CAPCAP
