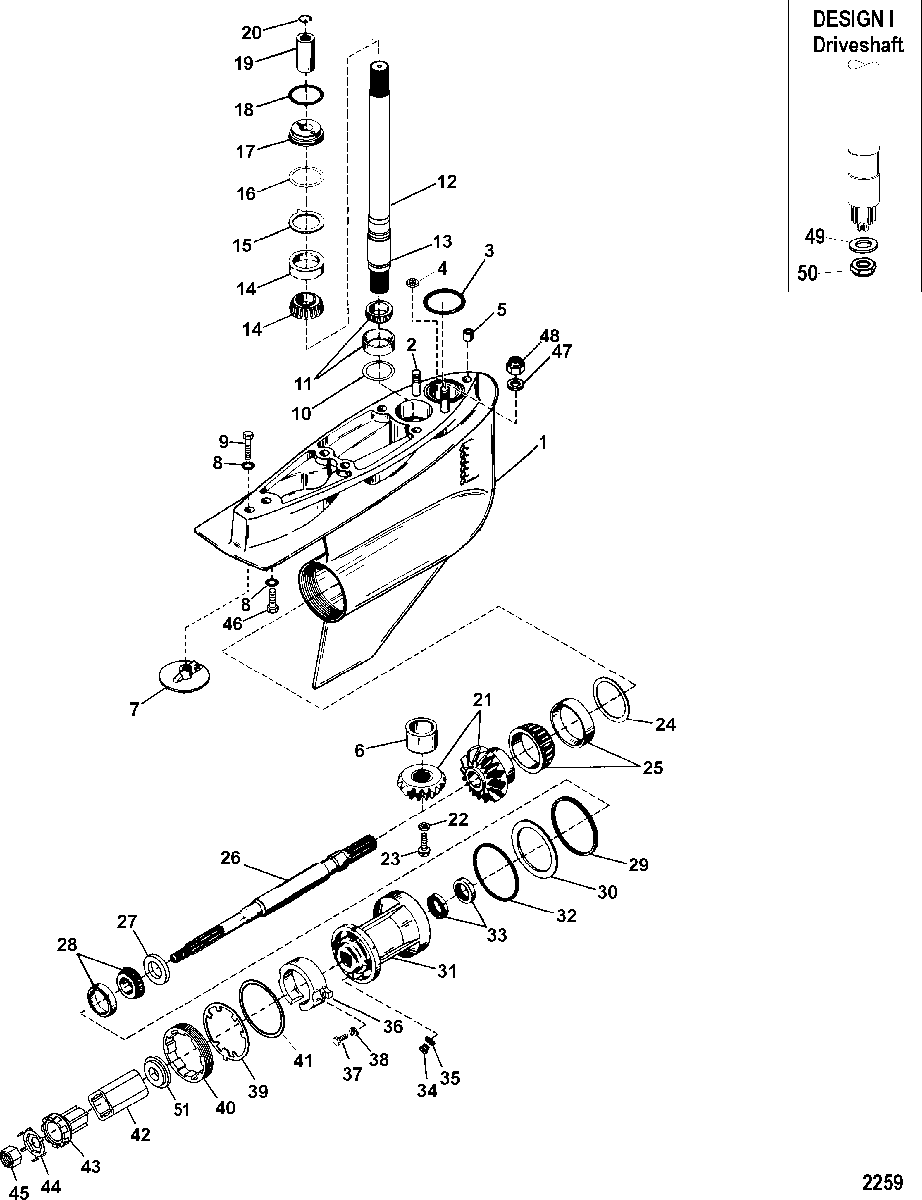

GEAR HOUSING(BRAVO ONE) для Mercruiser - BRAVO ONE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
_1656-8866A63 GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (STD)GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (STD) -
_1656-8866A55 GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (LWP)GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (LWP) -
_1656-8866A63 GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (DWP)GEAR HOUSING ASSEMBLY (Complete)
(BRAVO ONE) (DWP) -
11656-8866A64 GEAR HOUSING ASSEMBLY
(BRAVO ONE) (STD)GEAR HOUSING ASSEMBLY
(BRAVO ONE) (STD) -
11656-8866A54 GEAR HOUSING ASSEMBLY
(BRAVO ONE) (LWP)GEAR HOUSING ASSEMBLY
(BRAVO ONE) (LWP) -
11656-8866A64 GEAR HOUSING ASSEMBLY
(BRAVO ONE) (DWP)GEAR HOUSING ASSEMBLY
(BRAVO ONE) (DWP) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-455771 SEALSEAL
-
526-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
631-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
797-76214Q5 ANODE KITANODE KIT
-
813-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
910-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1015-92914A1 SHIM KITSHIM KIT
-
1131-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1245-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)DRIVESHAFT ASSEMBLY, (16.085 Long)
-
1331-815901 RACE, BearingRACE, Bearing
-
1431-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1514-86739 TAB WASHERTAB WASHER
-
1615-86749A1 SHIM KITSHIM KIT
-
1723-8M0046302 SPACERSPACER
-
1825-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1988243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2053-88242 RING, RetainingRING, Retaining
-
2143-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
2212-805068 WASHERWASHER
-
2310-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2415-87157A1 SHIM KITSHIM KIT
-
2531-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2644-41630T PROPELLER SHAFTPROPELLER SHAFT
-
2712-90886 WASHERWASHER
-
2831-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2967440T LOAD RINGLOAD RING
-
3012-42256 THRUST WASHER, (.105 Inch Thick)THRUST WASHER, (.105 Inch Thick)
-
3141641A8 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
3225-31534 O-RINGO-RING
-
3326-76868 SEALSEAL
-
3422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
3512-191833 WASHERWASHER
-
3697-806188Q01 ANODE ASSEMBLYANODE ASSEMBLY
-
3710-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
3813-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
3914-18323 TAB WASHERTAB WASHER
-
408M2000347 RETAINERRETAINER
-
4112-863195 SPACERSPACER
-
42835290Q1 DRIVE SLEEVE, PlasticDRIVE SLEEVE, Plastic
-
43826074Q1 ADAPTOR, Brass, PropellerADAPTOR, Brass, Propeller
-
4414-816629Q TAB WASHERTAB WASHER
-
4511-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
4610-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
4712-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
4811-35053 NUT, (.437-20)NUT, (.437-20)
-
4912-86746 WASHERWASHER
-
5011-20739 NUT, (.750-16)NUT, (.750-16)
-
5112-835467Q01 THRUST HUBTHRUST HUB
-
-97-888758Q02 ANODE KIT, Aluminum (Bravo I)ANODE KIT, Aluminum (Bravo I)
-
-97-888757Q02 ANODE KIT, Magnesium (Bravo I)ANODE KIT, Magnesium (Bravo I)
