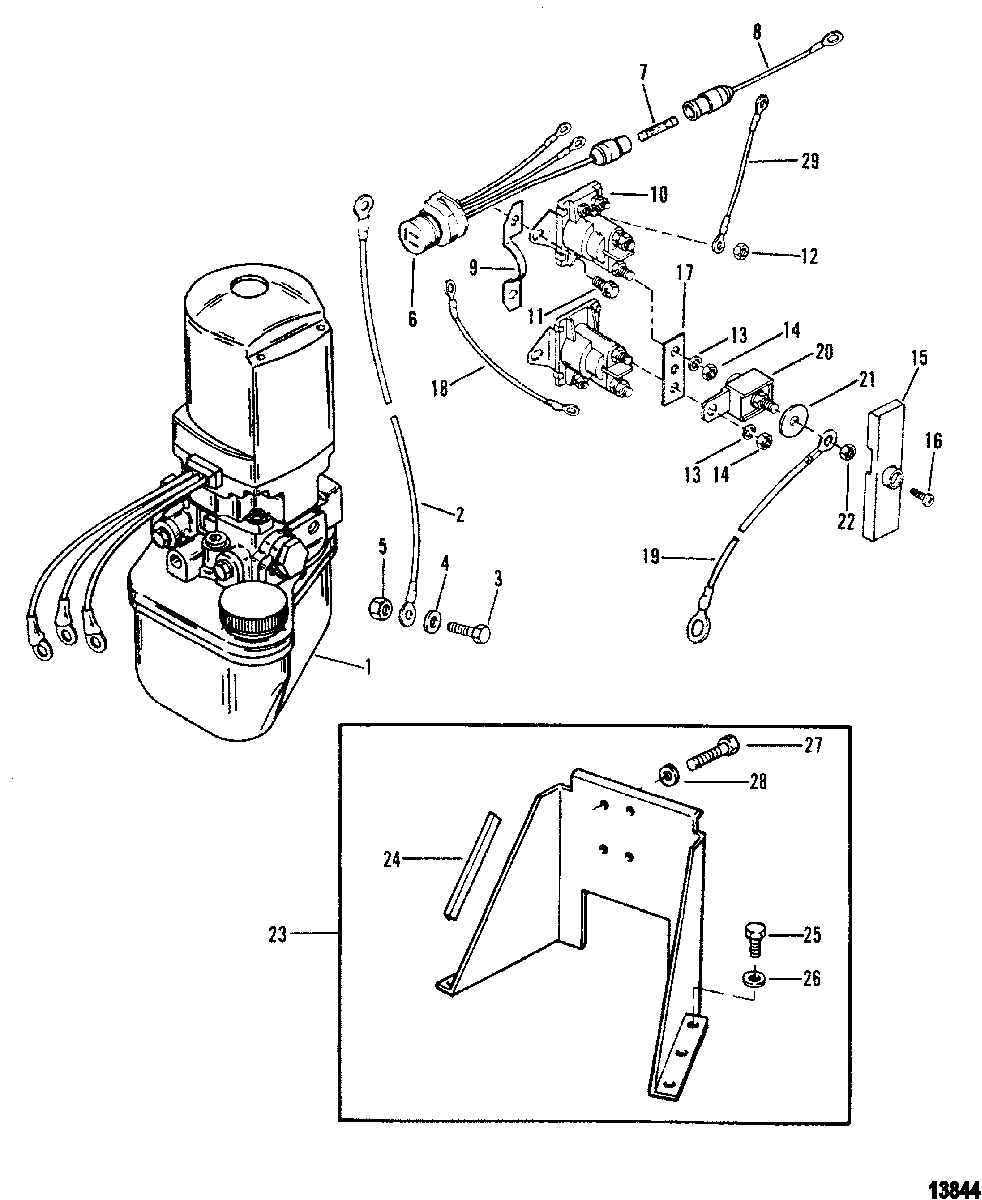

HYDRAULIC PUMP AND BRACKET для Mercruiser - BRAVO THREE 0B664190 THRU 0F729999
-
№АртикулНазвание
-
-865380A25 PUMP ASSEMBLY, Trim, Includes All Parts On This PagePUMP ASSEMBLY, Trim, Includes All Parts On This Page
-
1865380A13 PUMP/MOTOR ASSEMBLYPUMP/MOTOR ASSEMBLY
-
284-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, BatteryCABLE ASSEMBLY, (6.00 Feet) Black-Negative, Battery
-
310-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
412-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
511-68292 NUT, (.312-18)NUT, (.312-18)
-
684-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
788-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
884-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
988075 RETAINERRETAINER
-
1089-96158T SOLENOID, StarterSOLENOID, Starter
-
1110-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1211-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1585-861680 BOOTBOOT
-
1610-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
1794275 LINKLINK
-
1884-86322A15 CABLE ASSEMBLY, (5.50 Inches) BlackCABLE ASSEMBLY, (5.50 Inches) Black
-
1984-79139A12 CABLE ASSEMBLY, Red-Positive, BatteryCABLE ASSEMBLY, Red-Positive, Battery
-
2088-79023T10 FUSE ASSEMBLY, 110 AmpereFUSE ASSEMBLY, 110 Ampere
-
2112-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
2211-21825 NUT, (.250-28)NUT, (.250-28)
-
23862548A1 BRACKET ASSEMBLY, Floor MountedBRACKET ASSEMBLY, Floor Mounted
-
2458491 CHANNEL, Rubber (4.00 Inches)CHANNEL, Rubber (4.00 Inches)
-
2510-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2710-90271 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
2813-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2984-86322A24 CABLE ASSEMBLY, (4.00 Inches), BlackCABLE ASSEMBLY, (4.00 Inches), Black
