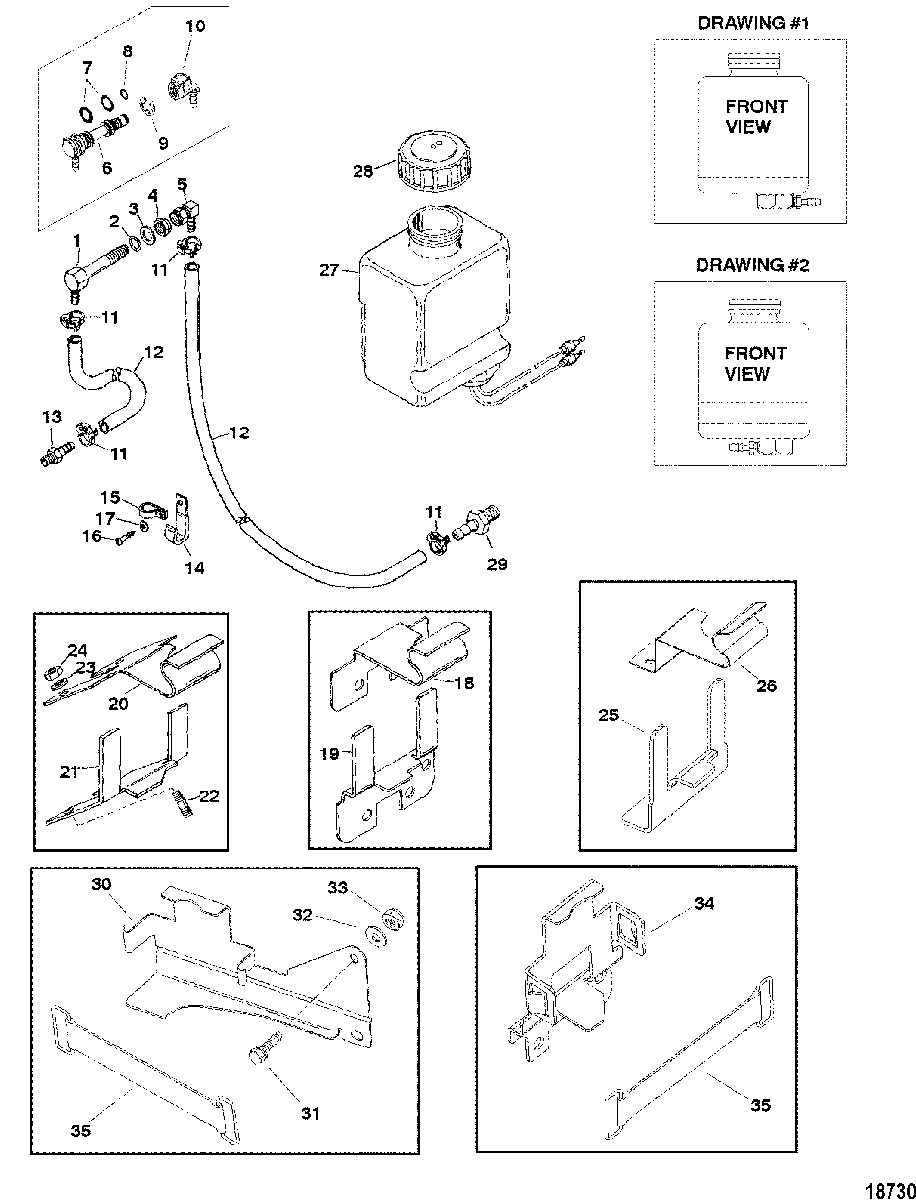

OIL RESERVOIR COMPONENTS для Mercruiser - BRAVO THREE 0F730000 THRU 0M100000
-
№АртикулНазвание
-
122-18922 CONNECTORCONNECTOR
-
225-201951 O-RINGO-RING
-
312-861854 WASHERWASHER
-
411-35053 NUT, (.437-20)NUT, (.437-20)
-
522-18923 FITTINGFITTING
-
622-861150T02 PLUG ASSEMBLY, Bulk HeadPLUG ASSEMBLY, Bulk Head
-
725-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
825-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
953-87843 E RINGE RING
-
1022-861163 QUICK CONNECTOR, (90 Degree)QUICK CONNECTOR, (90 Degree)
-
1154-415825 CLAMP, NylonCLAMP, Nylon
-
1232-8M0040618 HOSE, (54.00 Inches Bulk)HOSE, (54.00 Inches Bulk)
-
1322-16739 CONNECTORCONNECTOR
-
1454-642351 J CLIPJ CLIP
-
1554-23567 CLIPCLIP
-
1610-60605 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
178M0084613 C WASHERC WASHER
-
18860065A1 BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification)BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification) -
19860065A1 BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification)BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification) -
20806292T1 BRACKET
(See Illustration for Proper Identification)BRACKET
(See Illustration for Proper Identification) -
21807025T BRACKET
(See Illustration for Proper Identification)BRACKET
(See Illustration for Proper Identification) -
2216-8M2004610 STUD, (.375-16 x 2.130)
4.3LX/5.7L/5.7LX (Carb)STUD, (.375-16 x 2.130)
4.3LX/5.7L/5.7LX (Carb) -
2312-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2411-32219 NUT, (.375-16)NUT, (.375-16)
-
25806649T BRACKET, 262 MAG. EFI
(See Illustration for Proper Identification)BRACKET, 262 MAG. EFI
(See Illustration for Proper Identification) -
26806650T BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI
(See Illustration for Proper Identification)BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI
(See Illustration for Proper Identification) -
278M0075708 RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side
(SEE DRAWING #1)RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side
(SEE DRAWING #1) -
278M0075709 RESERVOIR, Fitting Pointing Toward Left Side
(SEE DRAWING #2)RESERVOIR, Fitting Pointing Toward Left Side
(SEE DRAWING #2) -
2836-8067271 CAP, Drive Lube Monitor, Oil BottleCAP, Drive Lube Monitor, Oil Bottle
-
2922-808624 CONNECTORCONNECTOR
-
30807839T1 BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
(See Illustration for Proper Identification)BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
(See Illustration for Proper Identification) -
3110-657461 SCREW AND LOCKWASHER, (.250-20 x .625) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)SCREW AND LOCKWASHER, (.250-20 x .625) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
-
3212-69057 WASHER, (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)WASHER, (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
-
3311-8267088 NUT, (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)NUT, (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
-
34860065A1 BRACKET KIT, Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification)BRACKET KIT, Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502)
(See Illustration for Proper Identification) -
35808023T STRAP, Bracket
(See Illustration for Proper Identification)STRAP, Bracket
(See Illustration for Proper Identification)
