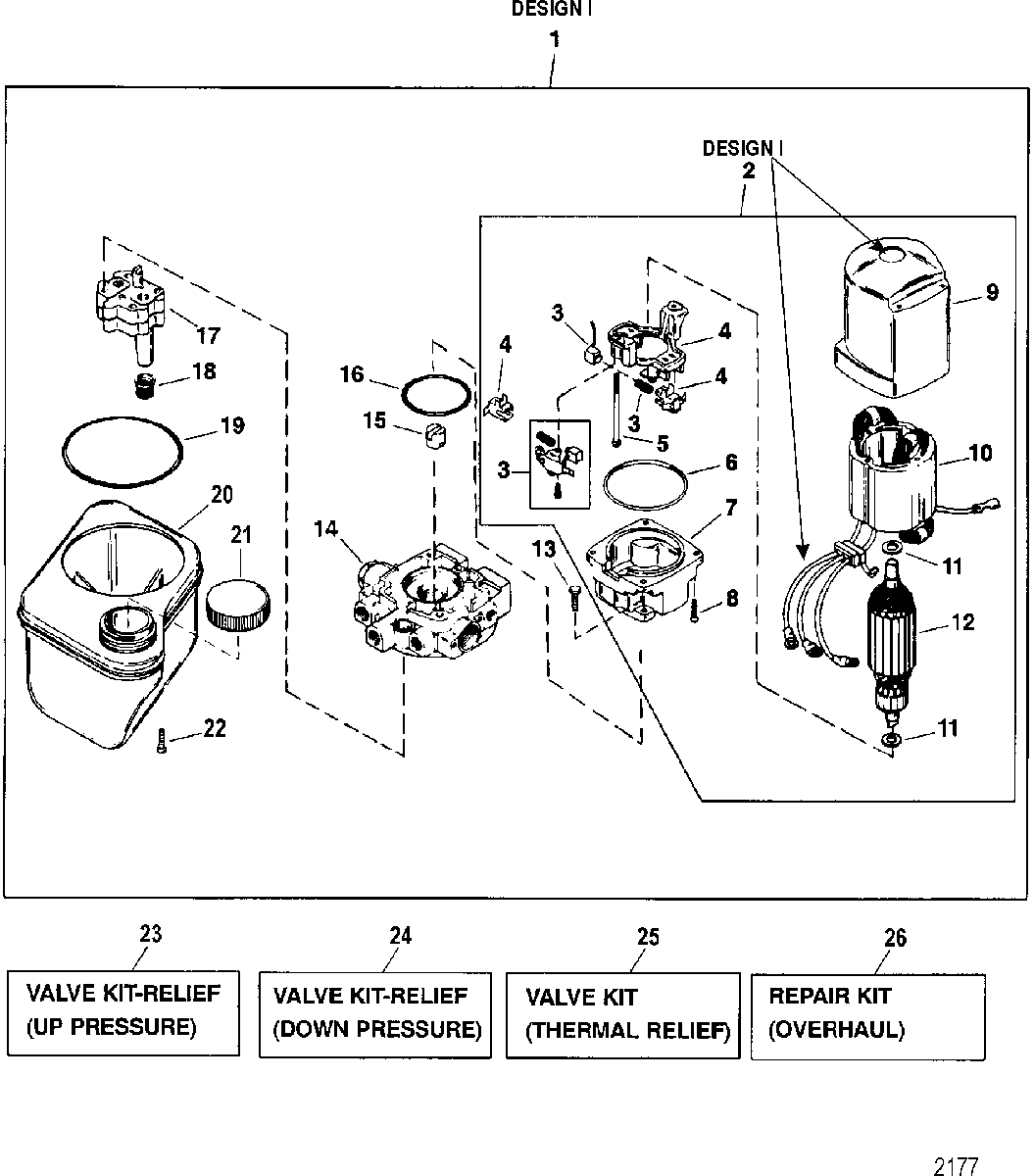

PUMP/MOTOR(BOTTOM MT RESERVOIR) (DESIGN I - 14336A8) для Mercruiser - BRAVO THREE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY, Bottom Mounted Reservoir
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line)PUMP/MOTOR ASSEMBLY, Bottom Mounted Reservoir
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line)MOTOR ASSEMBLY, Complete
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) -
3891736T BRUSH KITBRUSH KIT
-
4891736T HOLDER KIT, BrushHOLDER KIT, Brush
-
5891736T SCREWSCREW
-
6891736T O-RINGO-RING
-
7891736T END CAP ASSEMBLY, With BearingEND CAP ASSEMBLY, With Bearing
-
8891736T SCREWSCREW
-
9891736T COVER ASSEMBLY, With BearingCOVER ASSEMBLY, With Bearing
-
10891736T FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
11891736T WASHER, ThrustWASHER, Thrust
-
12891736T ARMATUREARMATURE
-
1310-823444 SCREWSCREW
-
14808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
15803852 COUPLINGCOUPLING
-
1625-89498 O-RING, Motor EndO-RING, Motor End
-
1718529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
1835-89496 FILTERFILTER
-
1925-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
2018525A1 RESERVOIR, Bottom Mounted
(With O-Ring Referece #19)RESERVOIR, Bottom Mounted
(With O-Ring Referece #19) -
2136-865448A01 CAP, Oil Reservoir, Oil ReservoirCAP, Oil Reservoir, Oil Reservoir
-
2210-18527 SCREW, With O-Ring And SpacerSCREW, With O-Ring And Spacer
-
23812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
24812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2595353A1 VALVE KIT, ReliefVALVE KIT, Relief
-
2618545A1 REPAIR KITREPAIR KIT
