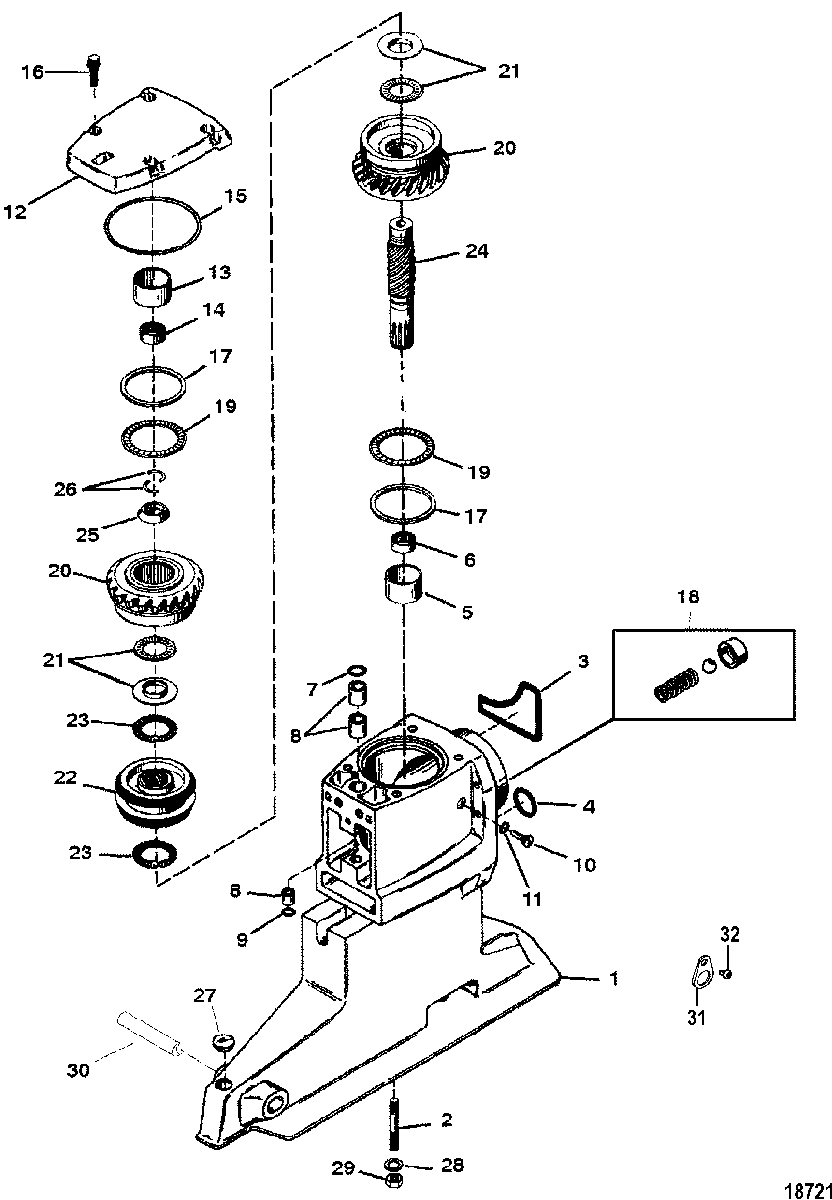

DRIVESHAFT HOUSING AND DRIVE GEARS(DIESEL ENGINE) для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000
-
№АртикулНазвание
-
11589-8868G21 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
316755Q1 SEALSEAL
-
425-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
531-815900 BEARINGBEARING
-
631-87156 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
725-62705 O-RINGO-RING
-
823-861209A1 BUSHING KITBUSHING KIT
-
926-127091 SEAL, OilSEAL, Oil
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1112-191833 WASHER, FiberWASHER, Fiber
-
1292068A6 TOP COVERTOP COVER
-
1331-815900 BEARINGBEARING
-
1431-87156 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1525-97387 O-RINGO-RING
-
1610-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1723-87560091 BEARING, Thrust (.091)
(RED)BEARING, Thrust (.091)
(RED) -
1723-87560094 BEARING, Thrust (.094)
(LIGHT BLUE)BEARING, Thrust (.094)
(LIGHT BLUE) -
1723-87560097 BEARING, Thrust (.097)
(GREEN)BEARING, Thrust (.097)
(GREEN) -
1824-17997A1 SPRING KITSPRING KIT
-
1931-86771 BEARING, ThrustBEARING, Thrust
-
2043-883473A3 GEAR SET (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III)
(27/32 TEETH)GEAR SET (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III)
(27/32 TEETH) -
2043-883476A3 GEAR SET (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III)
(27/29 TEETH)GEAR SET (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III)
(27/29 TEETH) -
2043-883479A3 GEAR SET (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III)
(23/30 TEETH)GEAR SET (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III)
(23/30 TEETH) -
2131-86768A2 BEARING ASSEMBLY, ThrustBEARING ASSEMBLY, Thrust
-
2252-807375A2 CLUTCH ASSEMBLY
(Refer to Service Bulletin 2001-17 for replacement parts)CLUTCH ASSEMBLY
(Refer to Service Bulletin 2001-17 for replacement parts) -
2324-93505 SPRINGSPRING
-
2445-812773T DRIVESHAFTDRIVESHAFT
-
2523-86770 COLLARCOLLAR
-
2697351 KEEPERKEEPER
-
2719-824928001 PLUGPLUG
-
2812-861854 WASHERWASHER
-
2911-35053 NUT, (.437-20)NUT, (.437-20)
-
30808006 INSERT, Trim AdjustmentINSERT, Trim Adjustment
-
318M2001743 PLATE, GroundPLATE, Ground
-
3210-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
-26-16709A2 SEAL KITSEAL KIT
