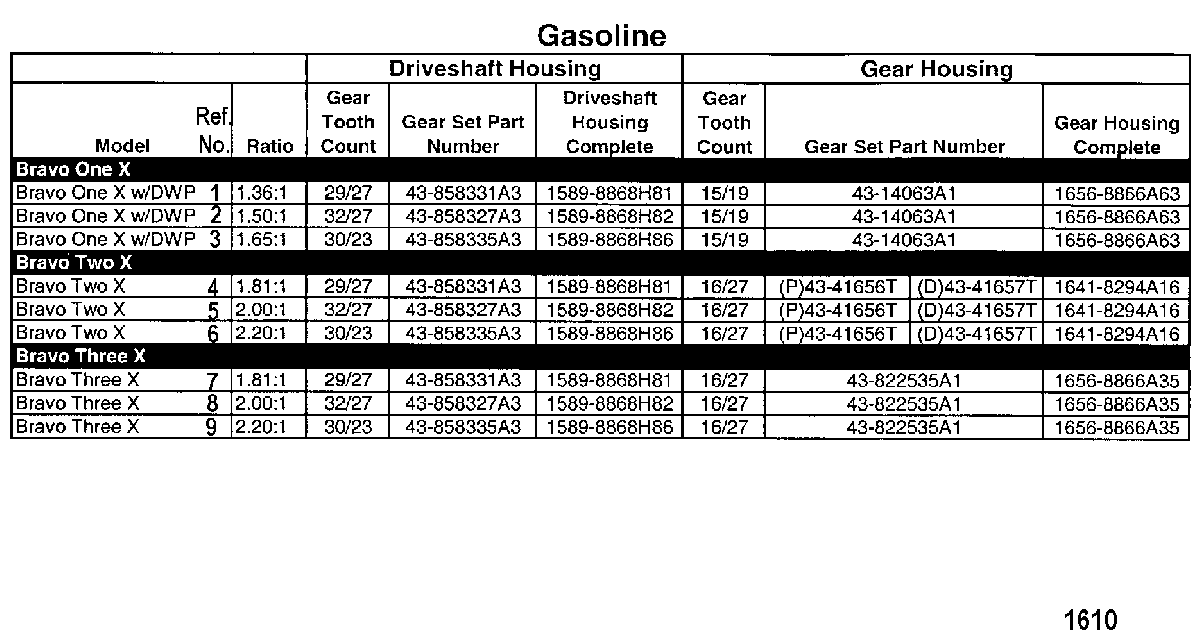

Sterndrive Unit Chart(Gasoline) Bravo X (I/II/III) для Mercruiser - BRAVO X ONE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
-NS NOT SHOWN, Bravo One XNOT SHOWN, Bravo One X
-
15237100NP STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.36:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.36:1 Ratio) -
11589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
143-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
11656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
143-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
25237200NP STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.50:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.50:1 Ratio) -
21589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
243-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
21656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
243-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
35237300NP STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.65:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo One X) (With DWP) (1.65:1 Ratio) -
31589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
343-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
31656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
343-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
-NS NOT SHOWN, Bravo Two XNOT SHOWN, Bravo Two X
-
45337400NP STERNDRIVE UNIT, Complete
(Bravo Two X) (1.81:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (1.81:1 Ratio) -
41589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
443-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
41641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
443-41656T GEAR, (16/27)GEAR, (16/27)
-
443-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
55337600NP STERNDRIVE UNIT, Complete
(Bravo Two X) (2.00:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (2.00:1 Ratio) -
51589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
543-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
51641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
543-41656T GEAR, (16/27)GEAR, (16/27)
-
543-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
65337500NP STERNDRIVE UNIT, Complete
(Bravo Two X) (2.20:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (2.20:1 Ratio) -
61589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
643-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
61641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
643-41656T GEAR, (16/27)GEAR, (16/27)
-
643-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
-NS NOT SHOWN, Bravo Three XNOT SHOWN, Bravo Three X
-
75447400NP STERNDRIVE UNIT, Complete
(Bravo Three X) (1.81:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (1.81:1 Ratio) -
71589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
743-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
71656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
743-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
85447600NP STERNDRIVE UNIT, Complete
(Bravo Three X) (2.00:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (2.00:1 Ratio) -
81589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
843-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
81656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
843-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
95447500NP STERNDRIVE UNIT, Complete
(Bravo Three X) (2.20:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (2.20:1 Ratio) -
91589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
943-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
91656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
943-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
