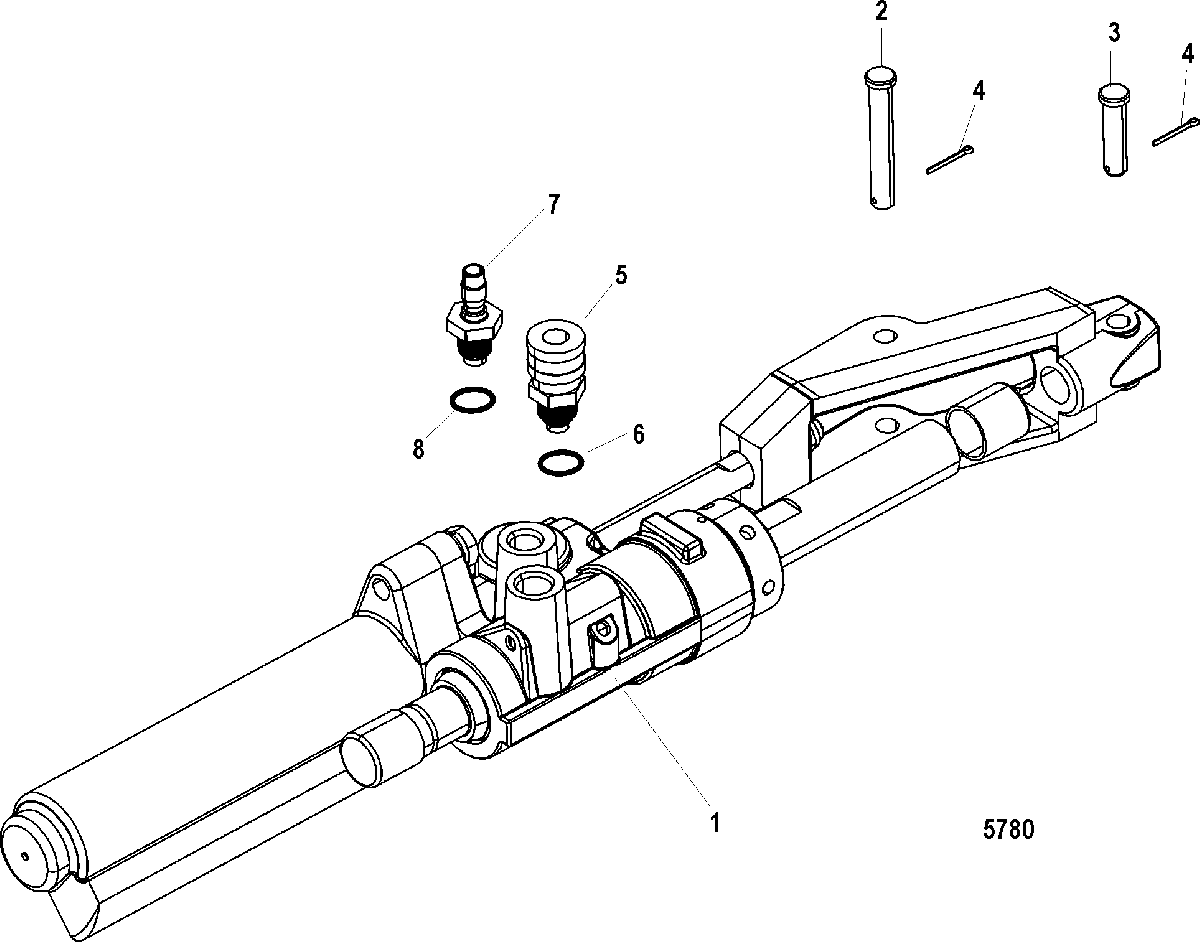

Power Steering для Mercruiser - BRAVO X THREE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
18M0063382 ACTUATOR ASSEMBLY, Power Steering
(Component Parts Not Sold Separately)ACTUATOR ASSEMBLY, Power Steering
(Component Parts Not Sold Separately) -
217-15878 PIN, Clevis, LongPIN, Clevis, Long
-
317-16419 PIN, Clevis, ShortPIN, Clevis, Short
-
418-46950 COTTER PINCOTTER PIN
-
522-865415 FITTING
SN# 0W100000 & UpFITTING
SN# 0W100000 & Up -
625-89879 O-RING, (.301 x .064)
SN# 0W100000 & UpO-RING, (.301 x .064)
SN# 0W100000 & Up -
722-865414001 FITTING
SN# 0W100000 & UpFITTING
SN# 0W100000 & Up -
825-806232 O-RING, (.239 x .064)
SN# 0W100000 & UpO-RING, (.239 x .064)
SN# 0W100000 & Up
