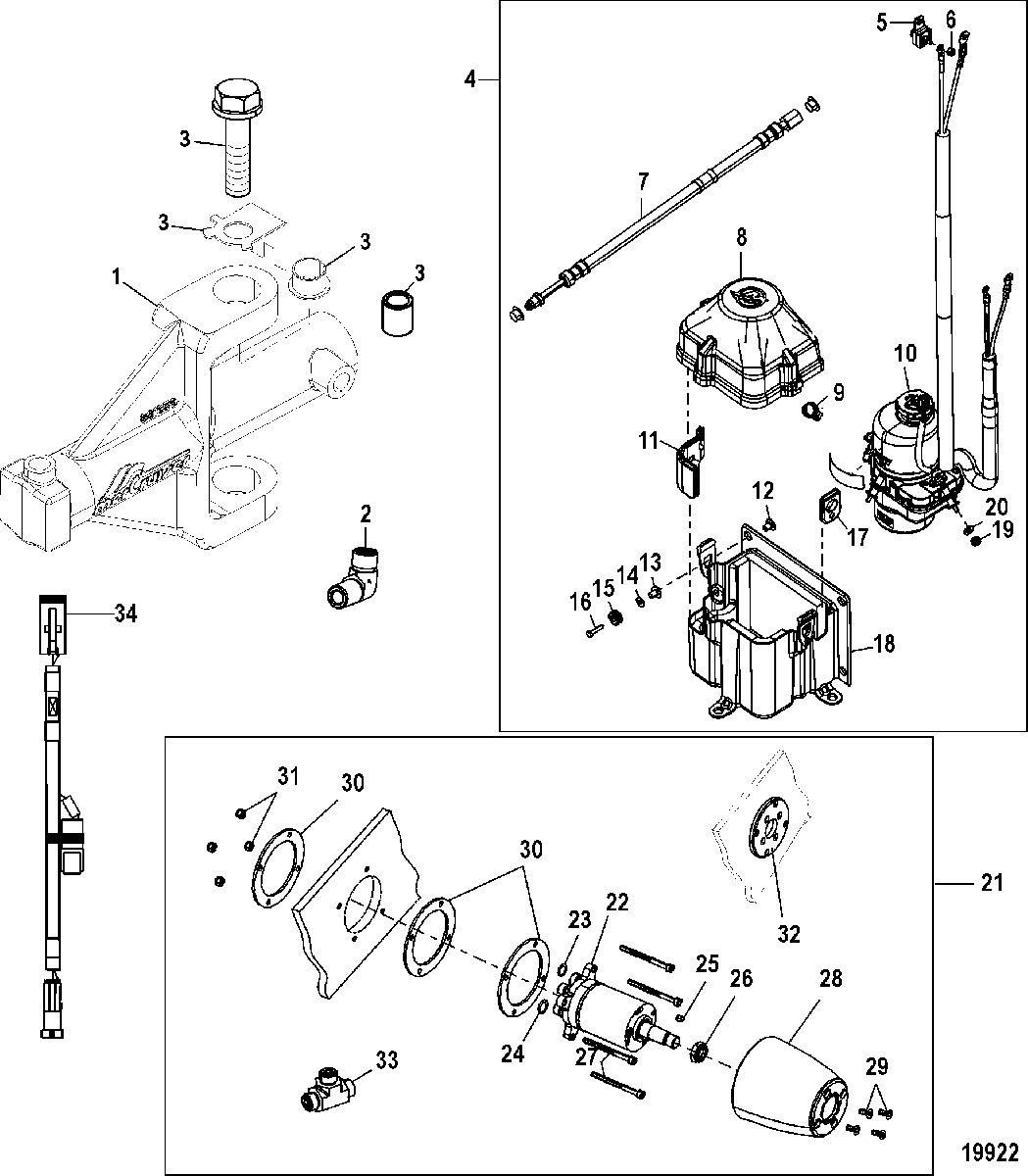

Electro-Hydraulic Power Steering Kit для Mercruiser - BRAVO X THREE 0W250000 & Up
-
№АртикулНазвание
-
1861659A1 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
28M2000345 FITTINGFITTING
-
3862018A1 BUSHING KIT, PivotBUSHING KIT, Pivot
-
48M0131262 PUMP KIT, Power Steering Pump KitPUMP KIT, Power Steering Pump Kit
-
588-79023T92 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
611-20184 NUT, (1/4-28X7/32)NUT, (1/4-28X7/32)
-
732-897643A01 HOSE KIT, DampeningHOSE KIT, Dampening
-
8893364A05 ENCLOSURE ASSEMBLY, Complete-Power Steering PumpENCLOSURE ASSEMBLY, Complete-Power Steering Pump
-
954-815504105 CLAMP, Worm Gear (11-18 mm)CLAMP, Worm Gear (11-18 mm)
-
10892485003 CAP, PumpCAP, Pump
-
1125-893368001 GROMMETGROMMET
-
1223-895320F1 BUSHINGBUSHING
-
1323-895320F1 BUSHINGBUSHING
-
1412-4002316 WASHERWASHER
-
1525-895319 GROMMETGROMMET
-
1610-895378 SCREW, (M6)SCREW, (M6)
-
1725-893369 GROMMETGROMMET
-
188M0080707 ENCLOSURE ASSEMBLY, Bottom-Power Steering PumpENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
-
1911-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2012-4002316 WASHERWASHER
-
218M0137445 STEERING HELM KIT, Standard (40 cc)STEERING HELM KIT, Standard (40 cc)
-
21895816A02 STEERING HELM KIT, Dual Standard (40 cc)STEERING HELM KIT, Dual Standard (40 cc)
-
228M0137444 HELM, Standard (40 cc)HELM, Standard (40 cc)
-
2325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2425-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
2528-893394 KEY, With Lock Tab (6.35 mm)KEY, With Lock Tab (6.35 mm)
-
2528-893394002 KEY, Short (4.75 mm)KEY, Short (4.75 mm)
-
2611-826709121 NUT, (.625-18) Stainless SteelNUT, (.625-18) Stainless Steel
-
2710-4008875 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
2710-4008850 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
28892328T COVER, HelmCOVER, Helm
-
2910-896842 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
30892327 PLATE, Helm BackingPLATE, Helm Backing
-
3111-401196 NUT, (M6)NUT, (M6)
-
32893395A01 PLATE, Flush Mount, OptionalPLATE, Flush Mount, Optional
-
-32-8M0046914 HOSE KIT, (1 Foot), Hydraulic, Cylinder to HelmHOSE KIT, (1 Foot), Hydraulic, Cylinder to Helm
-
-32-8M0046914 HOSE KIT, (2 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (2 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046915 HOSE KIT, (3 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (3 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046916 HOSE KIT, (4 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (4 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046917 HOSE KIT, (5 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (5 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046918 HOSE KIT, (6 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (6 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046919 HOSE KIT, (7 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (7 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046920 HOSE KIT, (8 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (8 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046921 HOSE KIT, (10 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (10 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046922 HOSE KIT, (12 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (12 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046923 HOSE KIT, (14 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (14 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046924 HOSE KIT, (16 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (16 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046925 HOSE KIT, (18 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (18 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046927 HOSE KIT, (22 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (22 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046928 HOSE KIT, (24 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (24 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046929 HOSE KIT, (26 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (26 Feet), Hydraulic, Cylinder to Helm
-
-32-8M0046931 HOSE KIT, (30 Feet), Hydraulic, Cylinder to HelmHOSE KIT, (30 Feet), Hydraulic, Cylinder to Helm
-
-32-892438K02 POWER STEERING HOSE KIT, Power Module (2 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (2 Feet), Hydraulic, Pump to Helm
-
-32-892438K03 POWER STEERING HOSE KIT, Power Module (3 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (3 Feet), Hydraulic, Pump to Helm
-
-32-892438K04 POWER STEERING HOSE KIT, Power Module (4 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (4 Feet), Hydraulic, Pump to Helm
-
-32-892438K05 POWER STEERING HOSE KIT, Power Module (5 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (5 Feet), Hydraulic, Pump to Helm
-
-32-892438K06 HOSE KIT, Power Module to Helm (6 Feet), Hydraulic, Pump to HelmHOSE KIT, Power Module to Helm (6 Feet), Hydraulic, Pump to Helm
-
-32-892438K07 HOSE KIT, Power Module to Helm (7 Feet), Hydraulic, Pump to HelmHOSE KIT, Power Module to Helm (7 Feet), Hydraulic, Pump to Helm
-
-32-892438K08 HOSE KIT, Power Module to Helm (8 Feet), Hydraulic, Pump to HelmHOSE KIT, Power Module to Helm (8 Feet), Hydraulic, Pump to Helm
-
-32-892438K10 POWER STEERING HOSE KIT, Power Module (10 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (10 Feet), Hydraulic, Pump to Helm
-
-32-892438K12 POWER STEERING HOSE KIT, Power Module (12 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (12 Feet), Hydraulic, Pump to Helm
-
-32-892438K14 POWER STEERING HOSE KIT, Power Module (14 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (14 Feet), Hydraulic, Pump to Helm
-
-32-892438K16 POWER STEERING HOSE KIT, Power Module (16 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (16 Feet), Hydraulic, Pump to Helm
-
-32-892438K18 POWER STEERING HOSE KIT, Power Module (18 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (18 Feet), Hydraulic, Pump to Helm
-
-32-892438K20 POWER STEERING HOSE KIT, Power Module (20 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (20 Feet), Hydraulic, Pump to Helm
-
-32-892438K22 POWER STEERING HOSE KIT, Power Module (22 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (22 Feet), Hydraulic, Pump to Helm
-
-32-892438K24 POWER STEERING HOSE KIT, Power Module (24 Feet), Hydraulic, Pump to HelmPOWER STEERING HOSE KIT, Power Module (24 Feet), Hydraulic, Pump to Helm
-
-32-892825008 HOSE, (8 ft.), Hydraulic, Helm to Pressure TankHOSE, (8 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825010 HOSE, (10 ft.), Hydraulic, Helm to Pressure TankHOSE, (10 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825012 HOSE, (12 ft.), Hydraulic, Helm to Pressure TankHOSE, (12 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825014 HOSE, (14 ft.), Hydraulic, Helm to Pressure TankHOSE, (14 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825016 HOSE, (16 ft.), Hydraulic, Helm to Pressure TankHOSE, (16 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825018 HOSE, (18 ft.), Hydraulic, Helm to Pressure TankHOSE, (18 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825020 HOSE, (20 ft.), Hydraulic, Helm to Pressure TankHOSE, (20 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825022 HOSE, (22 ft.), Hydraulic, Helm to Pressure TankHOSE, (22 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825024 HOSE, (24 ft.), Hydraulic, Helm to Pressure TankHOSE, (24 ft.), Hydraulic, Helm to Pressure Tank
-
-32-892825026 HOSE, (26 ft.), Hydraulic, Helm to Pressure TankHOSE, (26 ft.), Hydraulic, Helm to Pressure Tank
-
3322-892520 FITTING, Tee, Dual Station ApplicationFITTING, Tee, Dual Station Application
-
348M2000581 HARNESS ASSEMBLY, Jumper BreakoutHARNESS ASSEMBLY, Jumper Breakout
