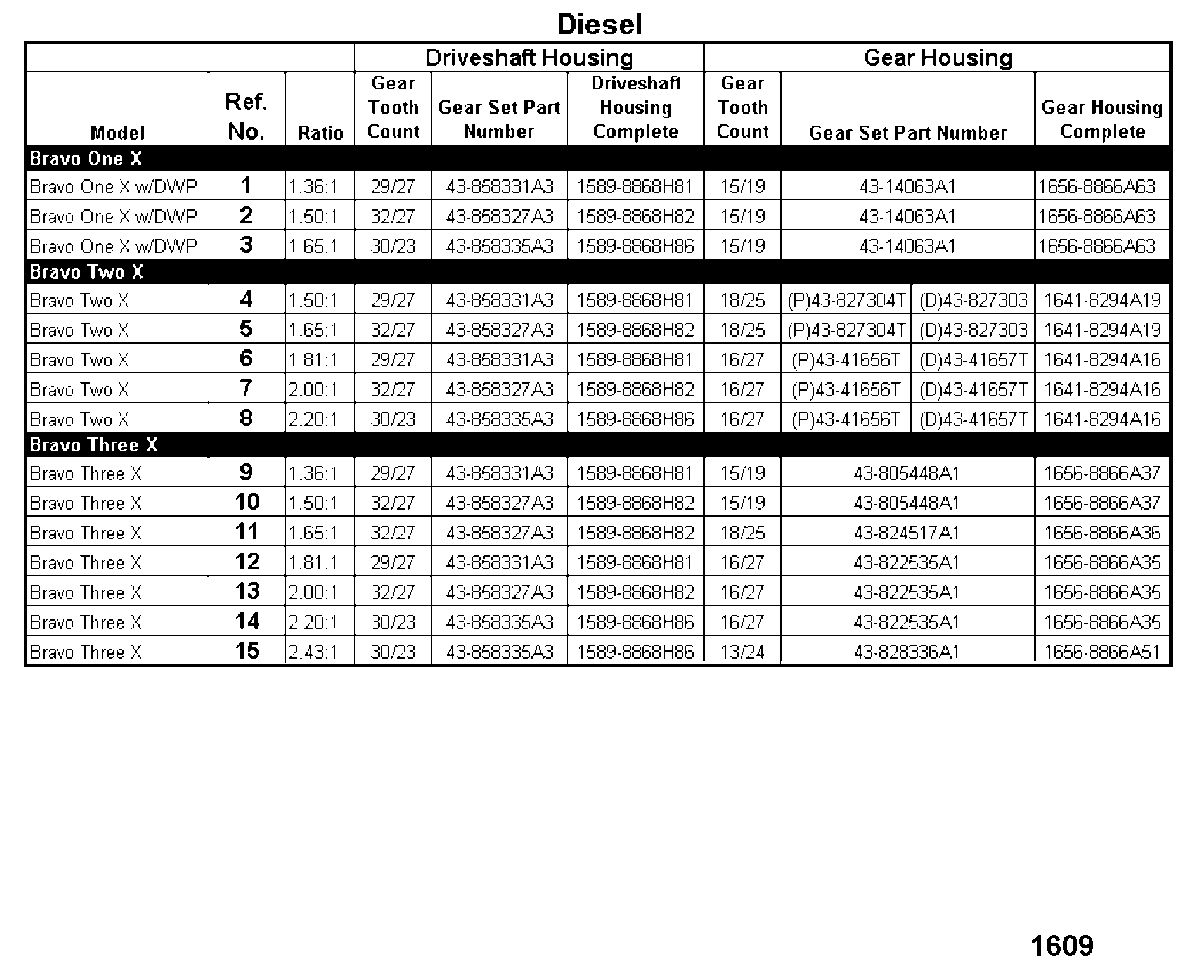

Sterndrive Unit Chart(Diesel) Bravo X (I/II/III) для Mercruiser - BRAVO X TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
-NS NOT SHOWN, Bravo One XNOT SHOWN, Bravo One X
-
15232100NZ END MODEL, Diesel Bravo I x 1.36:1 DWP, Complete
(Bravo One X) (With DWP) (1.36:1 Ratio)END MODEL, Diesel Bravo I x 1.36:1 DWP, Complete
(Bravo One X) (With DWP) (1.36:1 Ratio) -
11589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
143-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
11656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
143-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
25232200NZ END MODEL, Diesel Bravo I x 1.50:1 DWP, Complete
(Bravo One X) (With DWP) (1.50:1 Ratio)END MODEL, Diesel Bravo I x 1.50:1 DWP, Complete
(Bravo One X) (With DWP) (1.50:1 Ratio) -
21589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
243-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
21656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
243-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
35232300NZ END MODEL, Diesel Bravo I x 1.65:1 DWP, Complete
(Bravo One X) (With DWP) (1.65:1 Ratio)END MODEL, Diesel Bravo I x 1.65:1 DWP, Complete
(Bravo One X) (With DWP) (1.65:1 Ratio) -
31589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
343-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
31656-8866A63 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
343-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
-NS NOT SHOWN, Bravo Two XNOT SHOWN, Bravo Two X
-
45332200NP , Complete
(Bravo Two X) (1.50:1 Ratio), Complete
(Bravo Two X) (1.50:1 Ratio)Производитель Mercury-Mercruiser -
41589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
443-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
41641-8294A19 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
443-827304T GEAR, (18/25)GEAR, (18/25)
-
443-827303 GEAR, DRIVE (18/25)GEAR, DRIVE (18/25)
-
55332300NP STERNDRIVE UNIT, Complete
(Bravo Two X) (1.65:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (1.65:1 Ratio) -
51589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
543-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
51641-8294A19 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
543-827304T GEAR, (18/25)GEAR, (18/25)
-
543-827303 GEAR, DRIVE (18/25)GEAR, DRIVE (18/25)
-
65337400NP STERNDRIVE UNIT, Complete
(Bravo Two X) (1.81:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (1.81:1 Ratio) -
61589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
643-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
61641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
643-41656T GEAR, (16/27)GEAR, (16/27)
-
643-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
75337600NP STERNDRIVE UNIT, Complete
(Bravo Two X) (2.00:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (2.00:1 Ratio) -
71589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
743-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
71641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
743-41656T GEAR, (16/27)GEAR, (16/27)
-
743-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
85337500NP STERNDRIVE UNIT, Complete
(Bravo Two X) (2.20:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Two X) (2.20:1 Ratio) -
88868H68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
843-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
81641-8294A16 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
843-41656T GEAR, (16/27)GEAR, (16/27)
-
843-41657T GEAR, DRIVE (16/27)GEAR, DRIVE (16/27)
-
-NS NOT SHOWN, Bravo Three XNOT SHOWN, Bravo Three X
-
95442100NP STERNDRIVE UNIT, Complete
(Bravo Three X) (1.36:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (1.36:1 Ratio) -
91589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
943-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
91656-8M0046733 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
943-805448A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
105442200NP STERNDRIVE UNIT, Complete
(Bravo Three X) (1.50:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (1.50:1 Ratio) -
101589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1043-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
101656-8M0046733 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1043-805448A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
115442300NP STERNDRIVE UNIT, Complete
(Bravo Three X) (1.65:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (1.65:1 Ratio) -
111589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1143-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
111656-8M0046735 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1143-824517A1 GEAR SET, (18/25)GEAR SET, (18/25)
-
125447400NP STERNDRIVE UNIT, Complete
(Bravo Three X) (1.81:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (1.81:1 Ratio) -
121589-863836A66 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1243-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
121656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1243-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
135447600NP STERNDRIVE UNIT, Complete
(Bravo Three X) (2.00:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (2.00:1 Ratio) -
131589-863836A67 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1343-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
131656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1343-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
145447500NP STERNDRIVE UNIT, Complete
(Bravo Three X) (2.20:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (2.20:1 Ratio) -
141589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1443-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
141656-8M0046738 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1443-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
155442700NP STERNDRIVE UNIT, Complete
(Bravo Three X) (2.43:1 Ratio)STERNDRIVE UNIT, Complete
(Bravo Three X) (2.43:1 Ratio) -
151589-863836A68 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1543-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
151656-8M0046682 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1543-828336A1 GEAR SET, (13/24)GEAR SET, (13/24)
