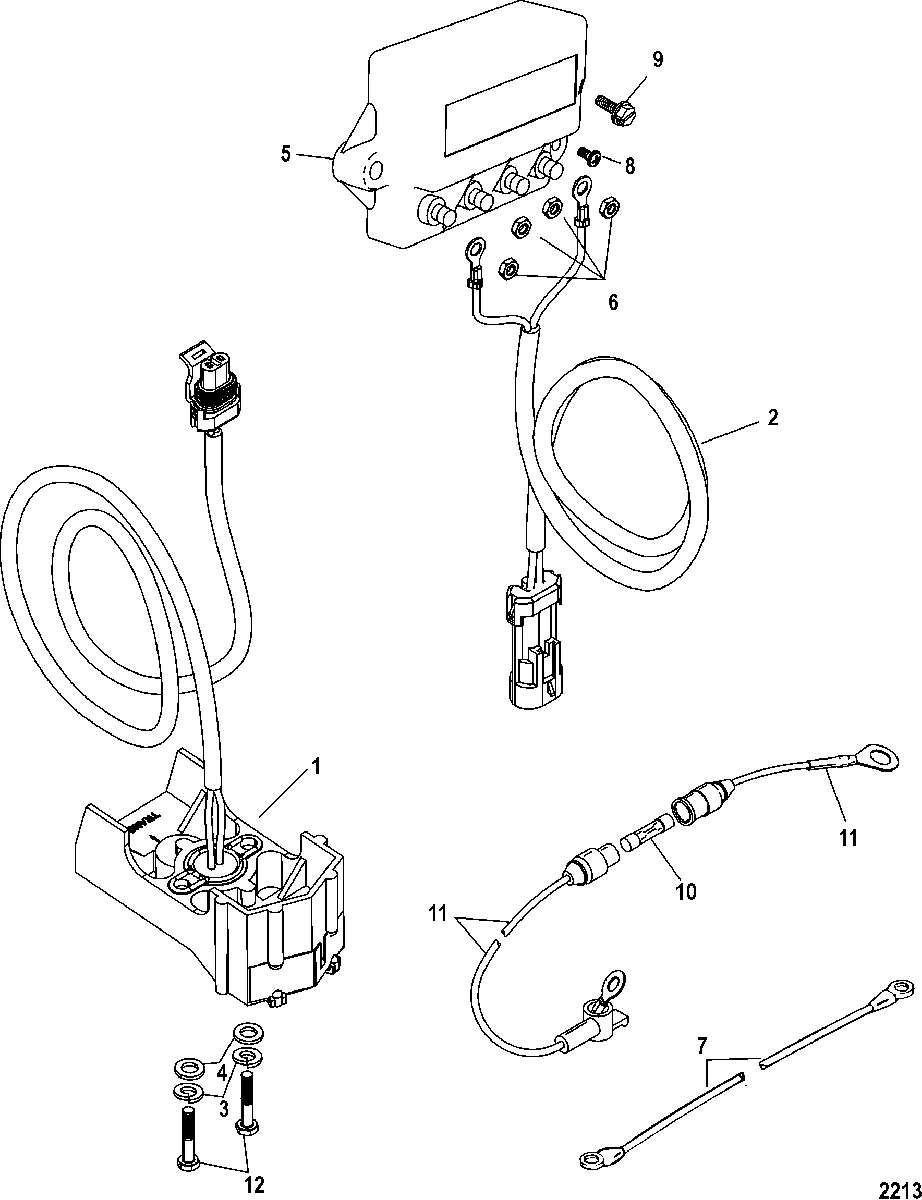

Mercathode Kit для Mercruiser - BRAVO XR ONE 0W240000 & Up
-
№АртикулНазвание
-
18M0085692 ELECTRODE ASSEMBLY, With Quick ConnectorsELECTRODE ASSEMBLY, With Quick Connectors
-
284-865181T01 HARNESS ASSEMBLY, MercathodeHARNESS ASSEMBLY, Mercathode
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
542600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
784-88543A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
810-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
910-4010516 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1088-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple StripCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
-
1184-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
-
1210-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
