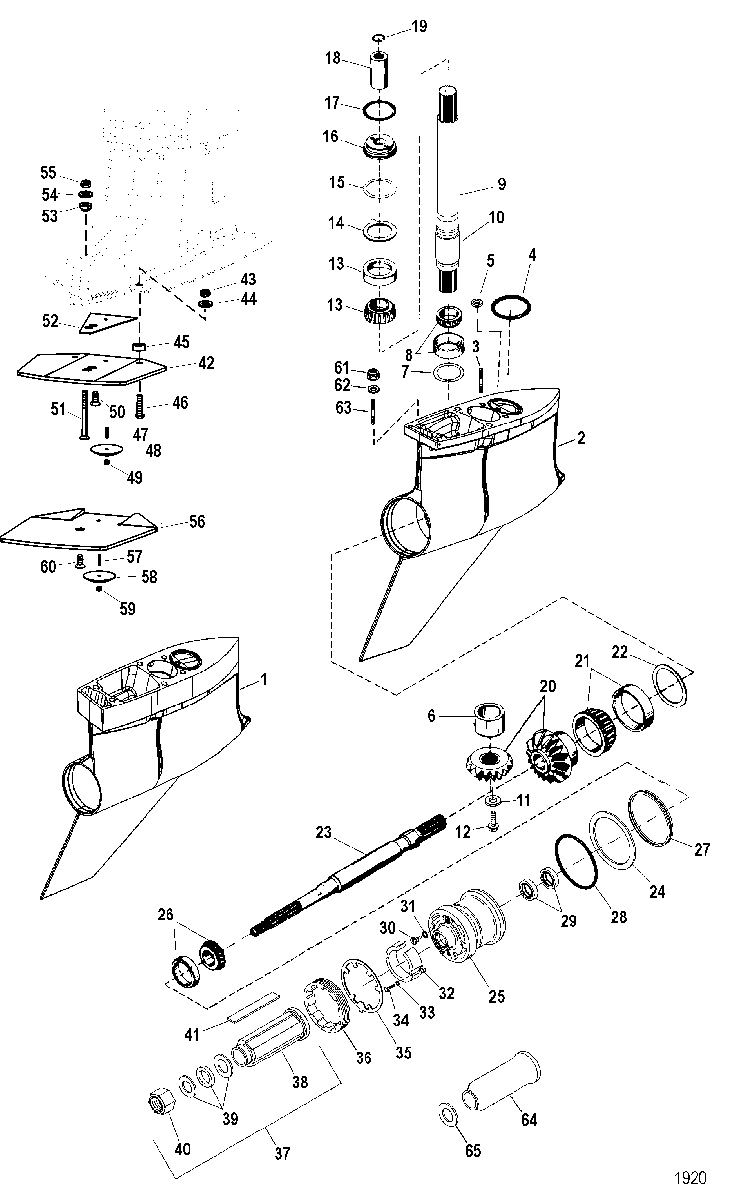

Gear Housing(Bravo One XR Sportmaster) для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
-1600-883608T49 GEAR HOUSING ASSEMBLY, Complete
(17/18 Long Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(17/18 Long Style) (Design I - Splash Plate 841009T1) -
-1600-883608T49 GEAR HOUSING ASSEMBLY, Complete
(17/18 Long Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(17/18 Long Style) (Design II - Splash Plate 842825T01) -
-1600-883608T50 GEAR HOUSING ASSEMBLY, Complete
(17/18 Short Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(17/18 Short Style) (Design I - Splash Plate 841009T1) -
-1600-883608T50 GEAR HOUSING ASSEMBLY, Complete
(17/18 Short Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(17/18 Short Style) (Design II - Splash Plate 842825T01) -
-1600-883608T51 GEAR HOUSING ASSEMBLY, Complete
(15/17 Long Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(15/17 Long Style) (Design I - Splash Plate 841009T1) -
-1600-883608T51 GEAR HOUSING ASSEMBLY, Complete
(15/17 Long Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(15/17 Long Style) (Design II - Splash Plate 842825T01) -
-1600-883608T52 GEAR HOUSING ASSEMBLY, Complete
(15/17 Short Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(15/17 Short Style) (Design I - Splash Plate 841009T1) -
-1600-883608T52 GEAR HOUSING ASSEMBLY, Complete
(15/17 Short Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(15/17 Short Style) (Design II - Splash Plate 842825T01) -
-1600-883608T53 GEAR HOUSING ASSEMBLY, Complete
(15/19 Long Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(15/19 Long Style) (Design I - Splash Plate 841009T1) -
-1600-883608T53 GEAR HOUSING ASSEMBLY, Complete
(15/19 Long Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(15/19 Long Style) (Design II - Splash Plate 842825T01) -
-1600-883608T54 GEAR HOUSING ASSEMBLY, Complete
(15/19 Short Style) (Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Complete
(15/19 Short Style) (Design I - Splash Plate 841009T1) -
-1600-883608T54 GEAR HOUSING ASSEMBLY, Complete
(15/19 Short Style) (Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Complete
(15/19 Short Style) (Design II - Splash Plate 842825T01) -
11600-883608T55 GEAR HOUSING ASSEMBLY, Long Style
(Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Long Style
(Design I - Splash Plate 841009T1) -
11600-883608T55 GEAR HOUSING ASSEMBLY, Long Style
(Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Long Style
(Design II - Splash Plate 842825T01) -
21600-883608T56 GEAR HOUSING ASSEMBLY, Short Style
(Design I - Splash Plate 841009T1)GEAR HOUSING ASSEMBLY, Short Style
(Design I - Splash Plate 841009T1) -
21600-883608T56 GEAR HOUSING ASSEMBLY, Short Style
(Design II - Splash Plate 842825T01)GEAR HOUSING ASSEMBLY, Short Style
(Design II - Splash Plate 842825T01) -
316-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
425-33465 O-RINGO-RING
-
526-455771 SEAL, Quad RingSEAL, Quad Ring
-
631-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
715-92914A1 SHIM KITSHIM KIT
-
831-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
945-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)
(Long Style Models)DRIVESHAFT ASSEMBLY, (16.085 Long)
(Long Style Models) -
945-840979T1 DRIVESHAFT ASSEMBLY, (14.085 Long)
(Short Style Models)DRIVESHAFT ASSEMBLY, (14.085 Long)
(Short Style Models) -
1031-815901 RACE, BearingRACE, Bearing
-
1112-805068 WASHERWASHER
-
1210-808027 SCREWSCREW
-
1331-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1414-86739 TAB WASHERTAB WASHER
-
1515-86749A1 SHIM KITSHIM KIT
-
1623-8M0046302 SPACERSPACER
-
1725-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1888243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
1953-88242 RING, RetainingRING, Retaining
-
2043-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
2043-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
2043-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
2131-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2215-87157A1 SHIM KITSHIM KIT
-
2344-840377T PROPELLER SHAFTPROPELLER SHAFT
-
2412-42256 THRUST WASHER, (.105 Inch Thick)THRUST WASHER, (.105 Inch Thick)
-
25840372A2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2631-8M0103476 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2767440T LOAD RINGLOAD RING
-
2825-31534 O-RINGO-RING
-
2926-815565 SEAL, OilSEAL, Oil
-
3022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
3112-191833 WASHER, SealingWASHER, Sealing
-
3297-806188Q01 ANODE ASSEMBLYANODE ASSEMBLY
-
3313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
3410-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
3514-18323 TAB WASHER, KeyedTAB WASHER, Keyed
-
368M2000347 RETAINER, Bearing CarrierRETAINER, Bearing Carrier
-
37840389K06 HUB KIT, PropellerHUB KIT, Propeller
-
38NSS NOT SOLD SEPARATE, Propeller HubNOT SOLD SEPARATE, Propeller Hub
-
3912-840383A2 WASHER/NUT KITWASHER/NUT KIT
-
4011-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
41840382A02 SNUBBER STRIP KITSNUBBER STRIP KIT
-
42843042T03 SPLASH PLATE KIT
(Design II)SPLASH PLATE KIT
(Design II) -
4311-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
4412-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
4523-844105 SPACERSPACER
-
4610-842831 SCREW, (.312-18 x 1.25)SCREW, (.312-18 x 1.25)
-
4716-8M0034461 STUD, (#10-32 x .930)STUD, (#10-32 x .930)
-
48847332 ANODEANODE
-
4911-8267096 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
5010-841031 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
5110-842827 SCREW, (.437-14 x 4.00)SCREW, (.437-14 x 4.00)
-
5227-842826 GASKET, Splash PlateGASKET, Splash Plate
-
5323-842828 BUSHINGBUSHING
-
5412-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
5511-826709014 NUT, (.437-14) Stainless SteelNUT, (.437-14) Stainless Steel
-
56843042T03 SPLASH PLATE ASSEMBLY
(Design I)SPLASH PLATE ASSEMBLY
(Design I) -
5716-8M0034461 STUD, (#10-32 x .930)STUD, (#10-32 x .930)
-
58847332 ANODEANODE
-
5911-8267096 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
6010-841031 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
6111-35053 NUT, (.437-20)NUT, (.437-20)
-
6212-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
6316-8M0133358 STUD, (.437-14/.437-20 x 2.060)
(Short Style Models)STUD, (.437-14/.437-20 x 2.060)
(Short Style Models) -
6316-841024001 STUD, (.437-14/.437-20 x 4.250)
(Long Style Models)STUD, (.437-14/.437-20 x 4.250)
(Long Style Models) -
648480611 COVER, PropshaftCOVER, Propshaft
-
6512-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
-843122T01 FLUSH ATTACHMENT
With Bungee Cord - OrangeFLUSH ATTACHMENT
With Bungee Cord - Orange -
-26-815565A02 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
