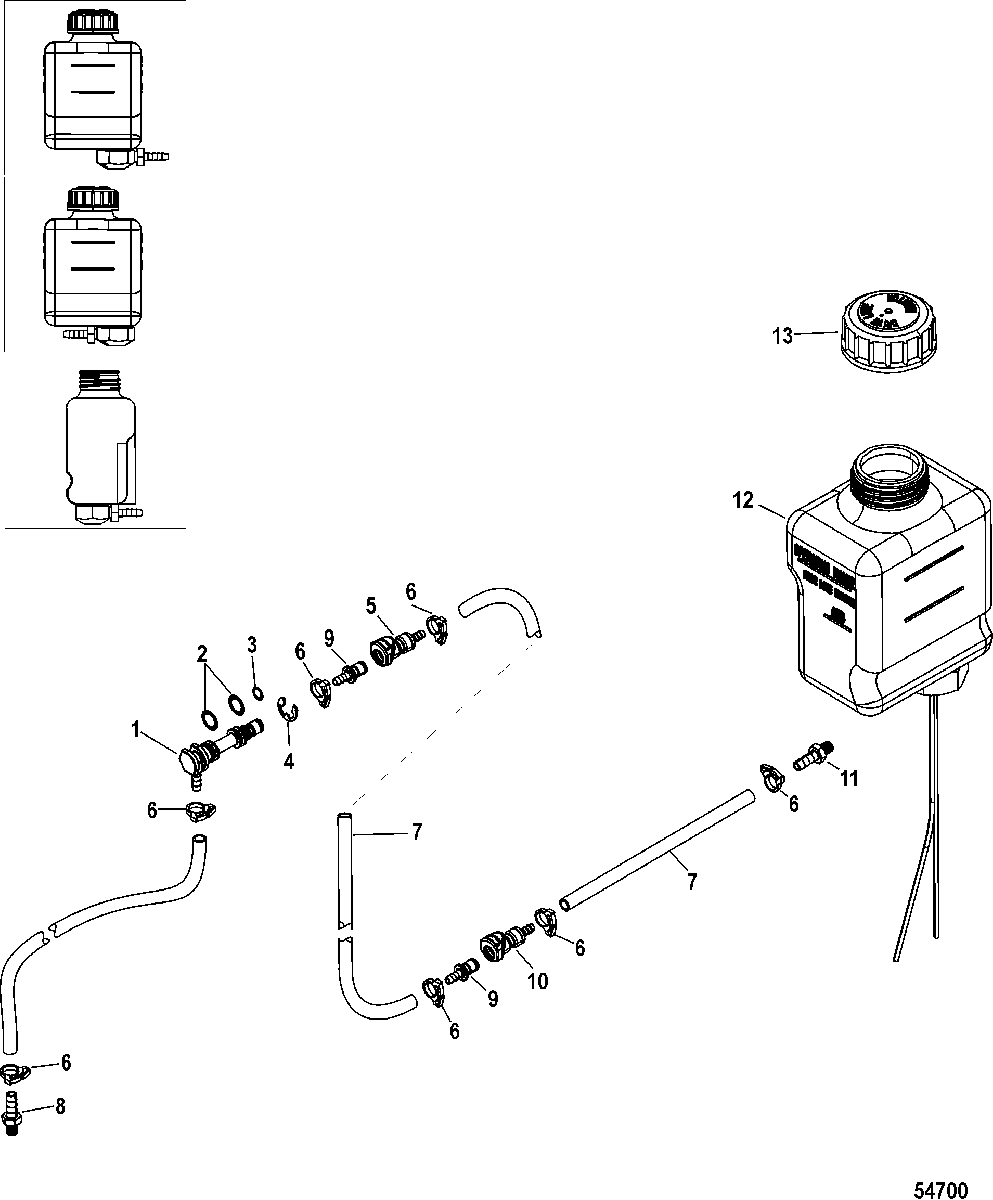

Gear Lube Monitor Components для Mercruiser - BRAVO XR SPORTMASTER 0M906878 & Up
-
№АртикулНазвание
-
122-861150T02 FITTING ASSEMBLYFITTING ASSEMBLY
-
225-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
453-87843 E RINGE RING
-
522-861163 QUICK CONNECTOR, (90 Degree)
Design IQUICK CONNECTOR, (90 Degree)
Design I -
522-865379 FITTING, Female
Design IIFITTING, Female
Design II -
654-415825 CLAMP, Nylon
Design ICLAMP, Nylon
Design I -
654-415825 CLAMP, Nylon
Design IICLAMP, Nylon
Design II -
732-8M0040618 HOSE, (54.00 Inches Bulk) (Cut As Required)HOSE, (54.00 Inches Bulk) (Cut As Required)
-
822-16739 CONNECTORCONNECTOR
-
922-865191 FITTING, Male
Design IFITTING, Male
Design I -
922-865191 FITTING, Male
Design IIFITTING, Male
Design II -
1022-865379 CONNECTOR, FemaleCONNECTOR, Female
-
1122-808624 CONNECTORCONNECTOR
-
128M0075708 MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side Viewed From Front)MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side Viewed From Front) -
128M0075709 RESERVOIR
(Fitting Pointing Toward Left Side Viewed From Front)RESERVOIR
(Fitting Pointing Toward Left Side Viewed From Front) -
128M0075710 RESERVOIR
(Fitting Pointing Toward Front Side Viewed From Side)RESERVOIR
(Fitting Pointing Toward Front Side Viewed From Side) -
1336-8067271 CAP, Drive Lube MonitorCAP, Drive Lube Monitor
