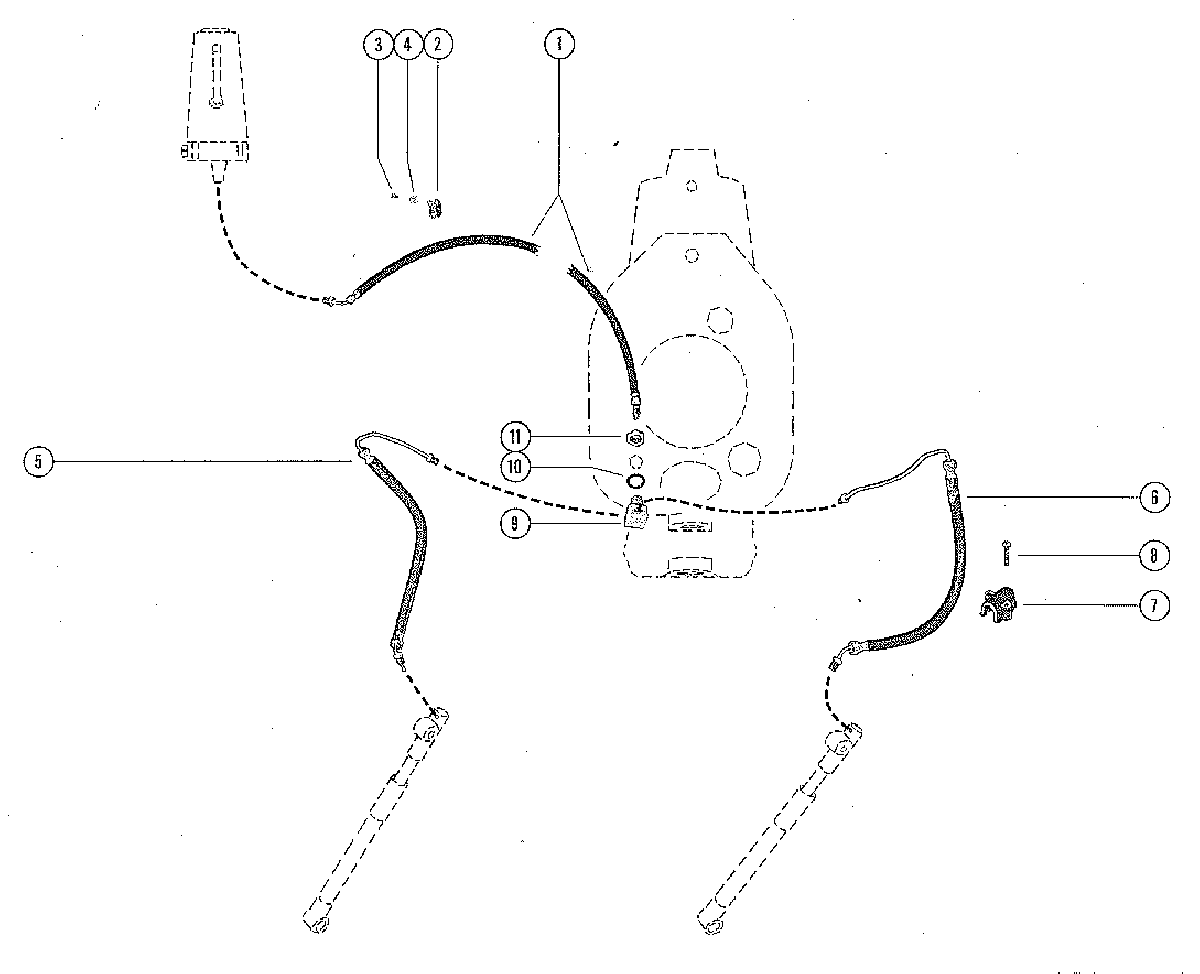

MERCRUISER IA, IB AND IC WITH FULL POWER TILT PARTS LIST для Mercruiser - IA/IB/IC 1964 1684188 THRU 1777798
-
№АртикулНазвание
-
132-35284 HOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSINGHOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSING
-
254-22740 CLIP, LIFT HOSE TO TRANSOM PLATECLIP, LIFT HOSE TO TRANSOM PLATE
-
310-31903 SCREW, LIFT HOSE TO TRANSOM (3/8")SCREW, LIFT HOSE TO TRANSOM (3/8")
-
48M0084613 "D" WASHER, LIFT HOSE CLIP SCREW"D" WASHER, LIFT HOSE CLIP SCREW
-
532-36085 HOSE, CONNECTING - GIMBAL HSG. TO TILT CYLINDER (PORT)HOSE, CONNECTING - GIMBAL HSG. TO TILT CYLINDER (PORT)
-
632-36086 HOSE, CONNECTING - GIMBAL HSG. TO TILT CYLINDER (STARBOARD)HOSE, CONNECTING - GIMBAL HSG. TO TILT CYLINDER (STARBOARD)
-
736011 COVER, CONNECTING HOSE TO GIMBAL HOUSINGCOVER, CONNECTING HOSE TO GIMBAL HOUSING
-
810-36070 SCREW, COVER TO GIMBAL HOUSING (1 1/4")SCREW, COVER TO GIMBAL HOUSING (1 1/4")
-
922-36033 CONNECTOR, GIMBAL HOUSINGCONNECTOR, GIMBAL HOUSING
-
1027-36043 GASKET, GIMBAL HOUSING CONNECTORGASKET, GIMBAL HOUSING CONNECTOR
-
1111-22339 NUT, GIMBAL HOUSING CONNECTORNUT, GIMBAL HOUSING CONNECTOR
