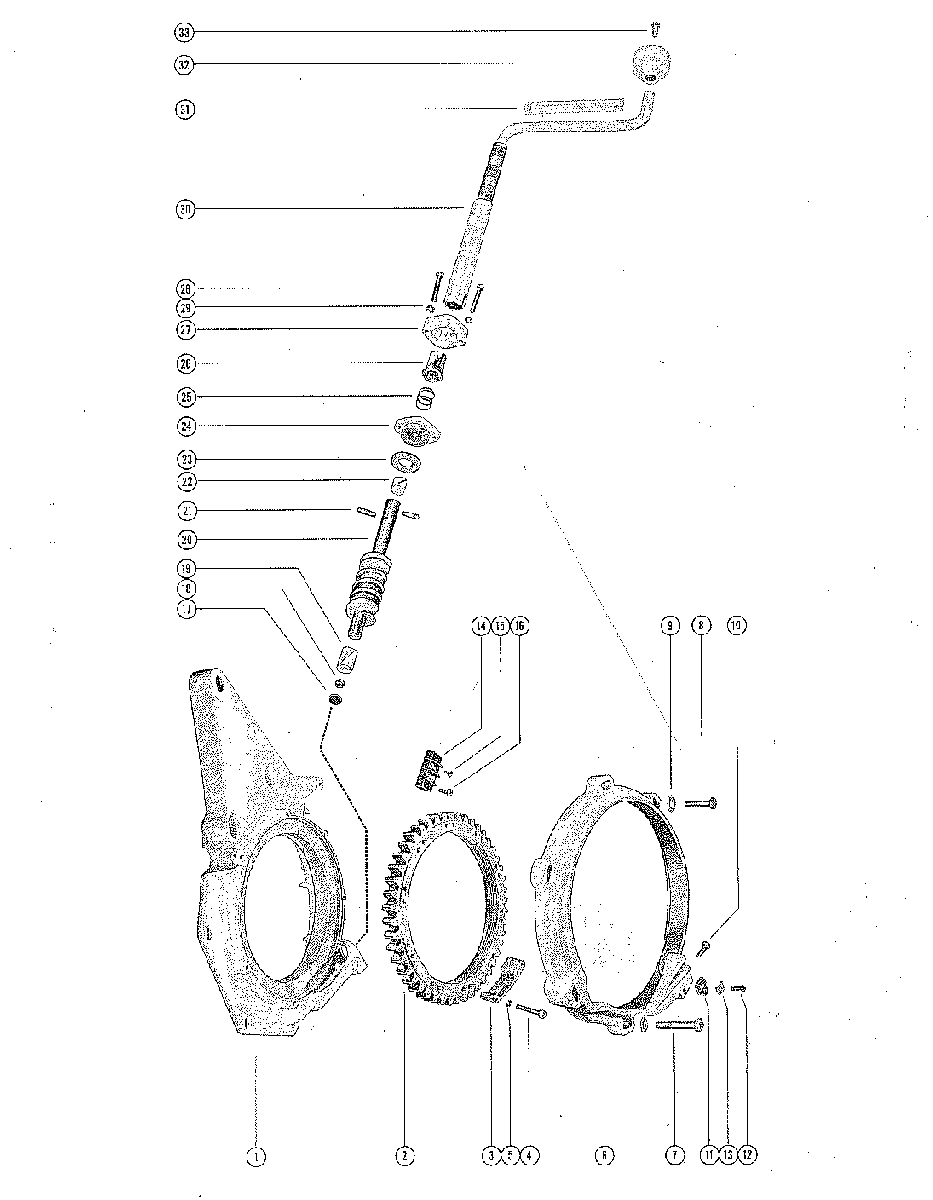

INNER TRANSOM PLATE, CLAMP NUT AND CRANK ASSEMBLY для Mercruiser - II 1964-1967 1602186 THRU 2278488
-
№АртикулНазвание
-
134193 PLATE, TRANSOM-INNERPLATE, TRANSOM-INNER
-
232239 CLAMP NUT, STEERING LEVER HOUSINGCLAMP NUT, STEERING LEVER HOUSING
-
333639 CATCH, CLAMP NUTCATCH, CLAMP NUT
-
410-32759 SCREW, CATCH TO CLAMP NUTSCREW, CATCH TO CLAMP NUT
-
513-21547 LOCKWASHER, CATCH TO CLAMP NUT SCREWLOCKWASHER, CATCH TO CLAMP NUT SCREW
-
636287 COVER, CLAMP NUT-INNER TRANSOM PLATECOVER, CLAMP NUT-INNER TRANSOM PLATE
-
710-815549 SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (2")SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (2")
-
810-31984 SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8")SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8")
-
912-26168 WASHER, CLAMP NUT COVER SCREWWASHER, CLAMP NUT COVER SCREW
-
1010-31983 SCREW, STEERING LEVER HOUSING STOP-CLAMP NUT COVERSCREW, STEERING LEVER HOUSING STOP-CLAMP NUT COVER
-
1154-24836 CLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVERCLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVER
-
1210-25764 SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVERSCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER
-
138M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW"D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
-
1430212 TERMINAL BLOCK, INNER TRANSOM PLATE (NOT AS SHOWN)TERMINAL BLOCK, INNER TRANSOM PLATE (NOT AS SHOWN)
-
1510-62568 SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCKSCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
-
1610-48409 SCREW, TERMINAL BLOCK TO INNER TRANSOM PLATESCREW, TERMINAL BLOCK TO INNER TRANSOM PLATE
-
1732788 DISC, THRUST-WORM GEAR (LOWER)DISC, THRUST-WORM GEAR (LOWER)
-
1822834 BALL, WORM GEAR (LOWER)BALL, WORM GEAR (LOWER)
-
1923-31757 BUSHING, NYLON-WORM GEAR (LOWER)BUSHING, NYLON-WORM GEAR (LOWER)
-
2043-31605 GEAR, WORM-INNER TRANSOM PLATEGEAR, WORM-INNER TRANSOM PLATE
-
2117-31728 PIN, WORM GEAR-SLEEVE AND CRANK LOCKINGPIN, WORM GEAR-SLEEVE AND CRANK LOCKING
-
2223-31857 BUSHING, NYLON-WORM GEAR (UPPER)BUSHING, NYLON-WORM GEAR (UPPER)
-
2312-31727 WASHER, THRUST-WORM GEAR TO RETAINING COVER (UPPER)WASHER, THRUST-WORM GEAR TO RETAINING COVER (UPPER)
-
2431631 COVER, RETAINING-WORM GEAR TO INNER TRANSOM PLATECOVER, RETAINING-WORM GEAR TO INNER TRANSOM PLATE
-
2524-31729 SPRING, COMPRESSION-WORM GEAR LOCKING SLEEVESPRING, COMPRESSION-WORM GEAR LOCKING SLEEVE
-
2623-31726 SLEEVE, WORM GEAR LOCKINGSLEEVE, WORM GEAR LOCKING
-
2731730 LOCK, SPLINED-WORM GEAR LOCKING SLEEVELOCK, SPLINED-WORM GEAR LOCKING SLEEVE
-
2810-70602 SCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATESCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE
-
2913-26992 LOCKWASHER, WORM GEAR COVER AND LOCK SCREWLOCKWASHER, WORM GEAR COVER AND LOCK SCREW
-
3033923A10 CRANK ASSEMBLY (10")CRANK ASSEMBLY (10")
-
3033923A16 CRANK ASSEMBLY (16")CRANK ASSEMBLY (16")
-
3033923A22 CRANK ASSEMBLY (22")CRANK ASSEMBLY (22")
-
3033923A28 CRANK ASSEMBLY (28")CRANK ASSEMBLY (28")
-
3033923A34 CRANK ASSEMBLY (34")CRANK ASSEMBLY (34")
-
3137-32187 LABEL, DIRECTIONAL AND INSTRUCTIONAL-CRANKLABEL, DIRECTIONAL AND INSTRUCTIONAL-CRANK
-
3231842 KNOB, CRANKKNOB, CRANK
-
3310-21356 SCREW, KNOB TO CRANKSCREW, KNOB TO CRANK
