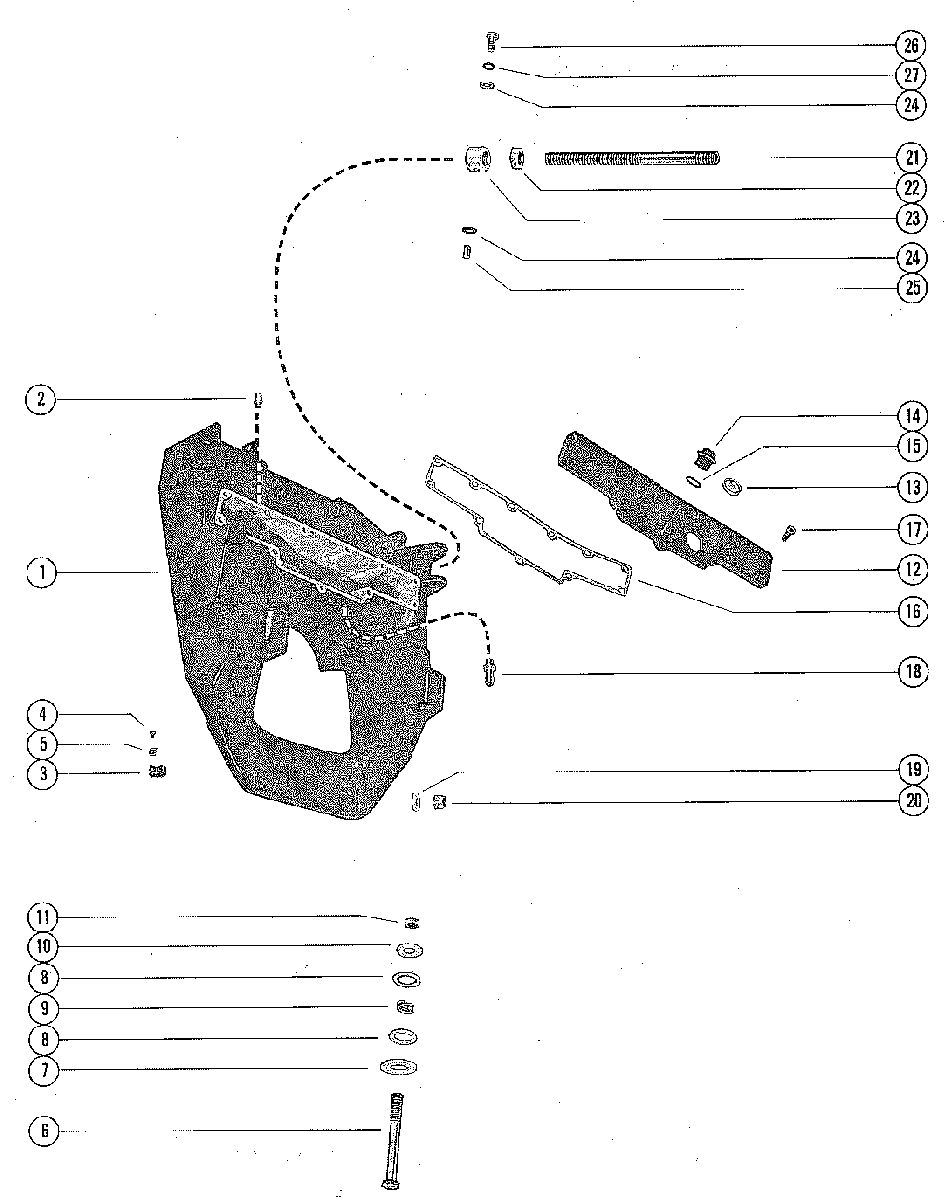

TRANSOM PLATE для Mercruiser - III 1968-1972 2373127 THRU 3002613
-
№АртикулНазвание
-
155498T PLATE, TRANSOM (POWER TRIM)PLATE, TRANSOM (POWER TRIM)
-
155498T PLATE, TRANSOM (POWER TRIM WITH INDICATOR)PLATE, TRANSOM (POWER TRIM WITH INDICATOR)
-
222-47902 VENT, OIL RESERVIOR COVERVENT, OIL RESERVIOR COVER
-
354-26550 CLIP, WIRING HARNESS TO TRANSOM PLATE (5/16)CLIP, WIRING HARNESS TO TRANSOM PLATE (5/16)
-
410-62568 SCREW, WIRING HARNESS CLIP TO TRANSOM PLATE (3/8")SCREW, WIRING HARNESS CLIP TO TRANSOM PLATE (3/8")
-
38M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW"D" WASHER, WIRING HARNESS CLIP SCREW
-
610-47467 SCREW, TRANSOM PLATE TO TRANSMISSION MOUNTING BRACKET (51/2")SCREW, TRANSOM PLATE TO TRANSMISSION MOUNTING BRACKET (51/2")
-
712-47475 WASHER, TRANSOM PLATE SCREW (1 1/8" I.D.)WASHER, TRANSOM PLATE SCREW (1 1/8" I.D.)
-
812-47466 WASHER, FIBER - TRANSOM PLATE SCREWWASHER, FIBER - TRANSOM PLATE SCREW
-
913-34846 LOCKWASHER, TRANSOM PLATE SCREW (DOUBLE WIND)LOCKWASHER, TRANSOM PLATE SCREW (DOUBLE WIND)
-
1012-33171 WASHER, TRANSOM PLATE SCREW (41/64" I.D.)WASHER, TRANSOM PLATE SCREW (41/64" I.D.)
-
1111-22339 NUT, TRANSOM PLATE SCREWNUT, TRANSOM PLATE SCREW
-
1247337A1 COVER ASSEMBLY, OIL RESERVIOR - TRAMSOM PLATECOVER ASSEMBLY, OIL RESERVIOR - TRAMSOM PLATE
-
1348992 INDICATOR, OIL LEVELINDICATOR, OIL LEVEL
-
1422-320181 PLUG, OIL FILLER - OIL RESERVIOR COVERPLUG, OIL FILLER - OIL RESERVIOR COVER
-
1525-35126 "O" RING, OIL FILLER PLUG"O" RING, OIL FILLER PLUG
-
1627-475341 GASKET, OIL RESERVIOR COVERGASKET, OIL RESERVIOR COVER
-
1710-90073 SCREW, OIL RESERVIOR COVER TO TRANSOM PLATE "1")SCREW, OIL RESERVIOR COVER TO TRANSOM PLATE "1")
-
1822-47841 CONNECTOR, TRANSOM PLATE (OIL HOSE)CONNECTOR, TRANSOM PLATE (OIL HOSE)
-
1912-34876 WASHER, BELL HOUSING TO TRANSOM PLATE SCREW AND STUDWASHER, BELL HOUSING TO TRANSOM PLATE SCREW AND STUD
-
211-35000 NUT, BELL HOUSING TO TRANSOM PLATE SCREW AND STUDNUT, BELL HOUSING TO TRANSOM PLATE SCREW AND STUD
-
2132-47439 TUBE, CABLE GUIDETUBE, CABLE GUIDE
-
2211-8M0041651 NUT, JAM - CABLE GUIDE TUBENUT, JAM - CABLE GUIDE TUBE
-
2335221 RING, SWIVEL - CBLE GUIDE TUBERING, SWIVEL - CBLE GUIDE TUBE
-
2412-47533 WASHER, SWIVEL RING PIVOT BOLTWASHER, SWIVEL RING PIVOT BOLT
-
2517-47621 PIN, SWIVEL RING TO TRANSOM PLATE
EARLY MODELSPIN, SWIVEL RING TO TRANSOM PLATE
EARLY MODELS -
2610-31832 BOLT, PIVOT - SWIVEL RING TO TRANSOM PLATE
LATE MODELS USE QUANTITY OF TWOBOLT, PIVOT - SWIVEL RING TO TRANSOM PLATE
LATE MODELS USE QUANTITY OF TWO -
2713-31848 LOCKWASHER, SWIVEL RING PIVOT BOLT
LATE MODELS USE QUANTITY OF TWOLOCKWASHER, SWIVEL RING PIVOT BOLT
LATE MODELS USE QUANTITY OF TWO -
2737-39395 DECAL, SERIAL NUMBERDECAL, SERIAL NUMBER
Все узлы модели:
- DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GIMBAL HOUSING AND BELL HOUSING
- GIMBAL RING AND STEERING LEVER
- HYDRAULIC PUMP AND TRIM CONTROL PANEL
- HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL
- HYDRAULIC PUMP ASSEMBLY, COMPLETE
- • TRANSOM PLATE
- TRIM CYLINDER AND HYRAULIC HOSES
