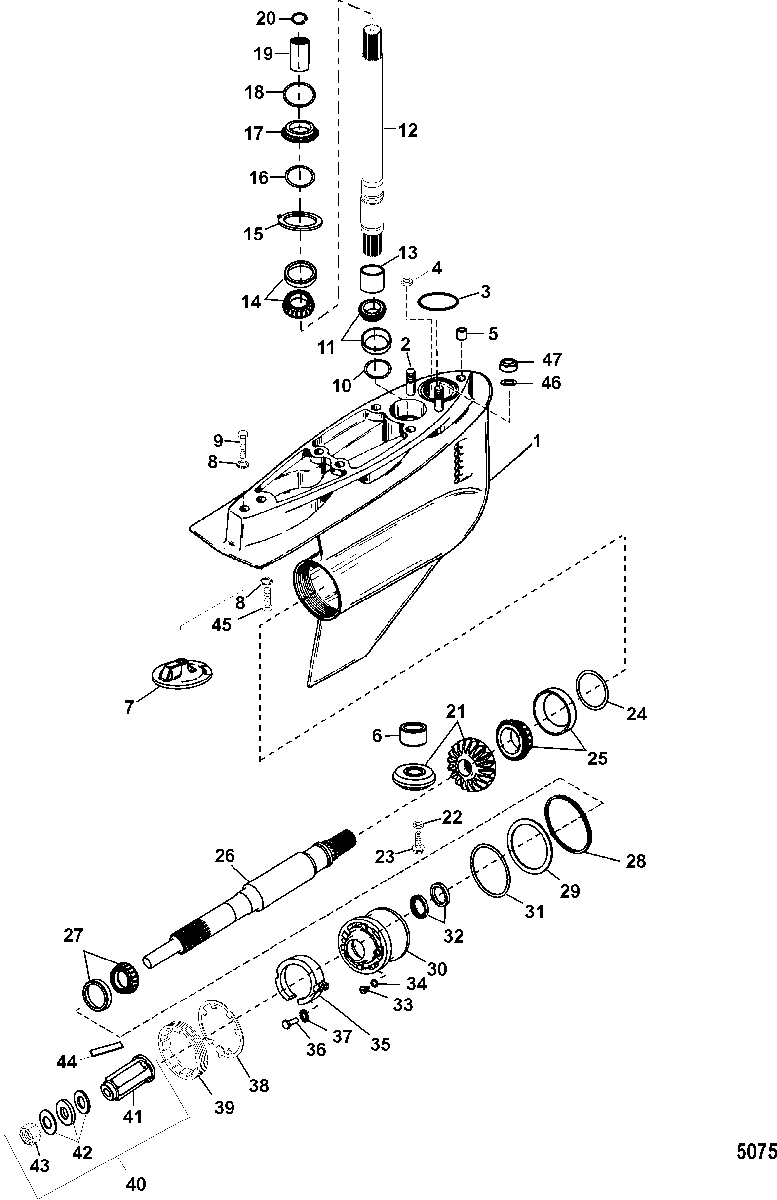

Gear Housing(Bravo I XR) для Mercruiser - INTEGRATED TRANSOM 0M052768 & Up
-
№АртикулНазвание
-
-1656-8866A80 GEAR HOUSING ASSEMBLY, (17/18) (1.26:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (17/18) (1.26:1 Ratio)
(Bravo I) -
-1656-8866A81 GEAR HOUSING ASSEMBLY, (15/17) (1.35:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (15/17) (1.35:1 Ratio)
(Bravo I) -
-1656-8866A61 GEAR HOUSING ASSEMBLY, (15/19) (1.50:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (15/19) (1.50:1 Ratio)
(Bravo I) -
-1656-8866A82 GEAR HOUSING ASSEMBLY, (17/18) (1.26:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (17/18) (1.26:1 Ratio)
(Bravo I) -
-1656-8866A83 GEAR HOUSING ASSEMBLY, (15/17) (1.35:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (15/17) (1.35:1 Ratio)
(Bravo I) -
-1656-8866A62 GEAR HOUSING ASSEMBLY, (15/19) (1.50:1 Ratio)
(Bravo I)GEAR HOUSING ASSEMBLY, (15/19) (1.50:1 Ratio)
(Bravo I) -
11656-8866A64 GEAR HOUSING ASSEMBLY
(Bravo I - Standard)GEAR HOUSING ASSEMBLY
(Bravo I - Standard) -
11656-8866A54 GEAR HOUSING ASSEMBLY
(Bravo I - With Low Water Pick-Up)GEAR HOUSING ASSEMBLY
(Bravo I - With Low Water Pick-Up) -
11656-8866A64 GEAR HOUSING ASSEMBLY
(Bravo I - Dual Water Pick-Up)GEAR HOUSING ASSEMBLY
(Bravo I - Dual Water Pick-Up) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-455771 SEALSEAL
-
526-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
631-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
797-76214Q5 ANODE KITANODE KIT
-
813-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
910-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1015-92914A1 SHIM KITSHIM KIT
-
1131-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1245-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)DRIVESHAFT ASSEMBLY, (16.085 Long)
-
1331-815901 RACE, BearingRACE, Bearing
-
1431-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1514-86739 TAB WASHERTAB WASHER
-
1615-86749A1 SHIM KITSHIM KIT
-
1723-8M0046302 SPACERSPACER
-
1825-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1988243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2053-88242 RING, RetainingRING, Retaining
-
2143-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
2143-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
2143-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
2212-805068 WASHERWASHER
-
2310-808027 SCREWSCREW
-
2415-87157A1 SHIM KITSHIM KIT
-
2531-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2644-840377T PROPELLER SHAFTPROPELLER SHAFT
-
2731-8M0103476 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2867440T LOAD RINGLOAD RING
-
2912-42256 THRUST WASHER, (.105 Inch Thick)THRUST WASHER, (.105 Inch Thick)
-
30840372A2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
3125-31534 O-RINGO-RING
-
3226-815565 SEAL, OilSEAL, Oil
-
3322-8M0058389 PLUG KIT, Drain - MagneticPLUG KIT, Drain - Magnetic
-
3426-830749 SEAL, SealingSEAL, Sealing
-
3597-806188Q01 ANODE ASSEMBLYANODE ASSEMBLY
-
3610-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
3713-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
3814-18323 TAB WASHER, KeyedTAB WASHER, Keyed
-
398M2000347 RETAINER, Bearing CarrierRETAINER, Bearing Carrier
-
40840389K06 HUB ASSEMBLY, PropellerHUB ASSEMBLY, Propeller
-
41NSS NOT SOLD SEPARATE, HUB-PropellerNOT SOLD SEPARATE, HUB-Propeller
-
4212-840383A2 WASHER/NUT KITWASHER/NUT KIT
-
4311-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
44840382A02 SNUBBER STRIP KITSNUBBER STRIP KIT
-
4510-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
4612-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
4711-35053 NUT, (.437-20)NUT, (.437-20)
-
-26-815565A02 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-97-888758Q02 ANODE KIT, Aluminum
(Bravo One)ANODE KIT, Aluminum
(Bravo One) -
-97-888757Q02 ANODE KIT, Magnesium
(Bravo One)ANODE KIT, Magnesium
(Bravo One)
