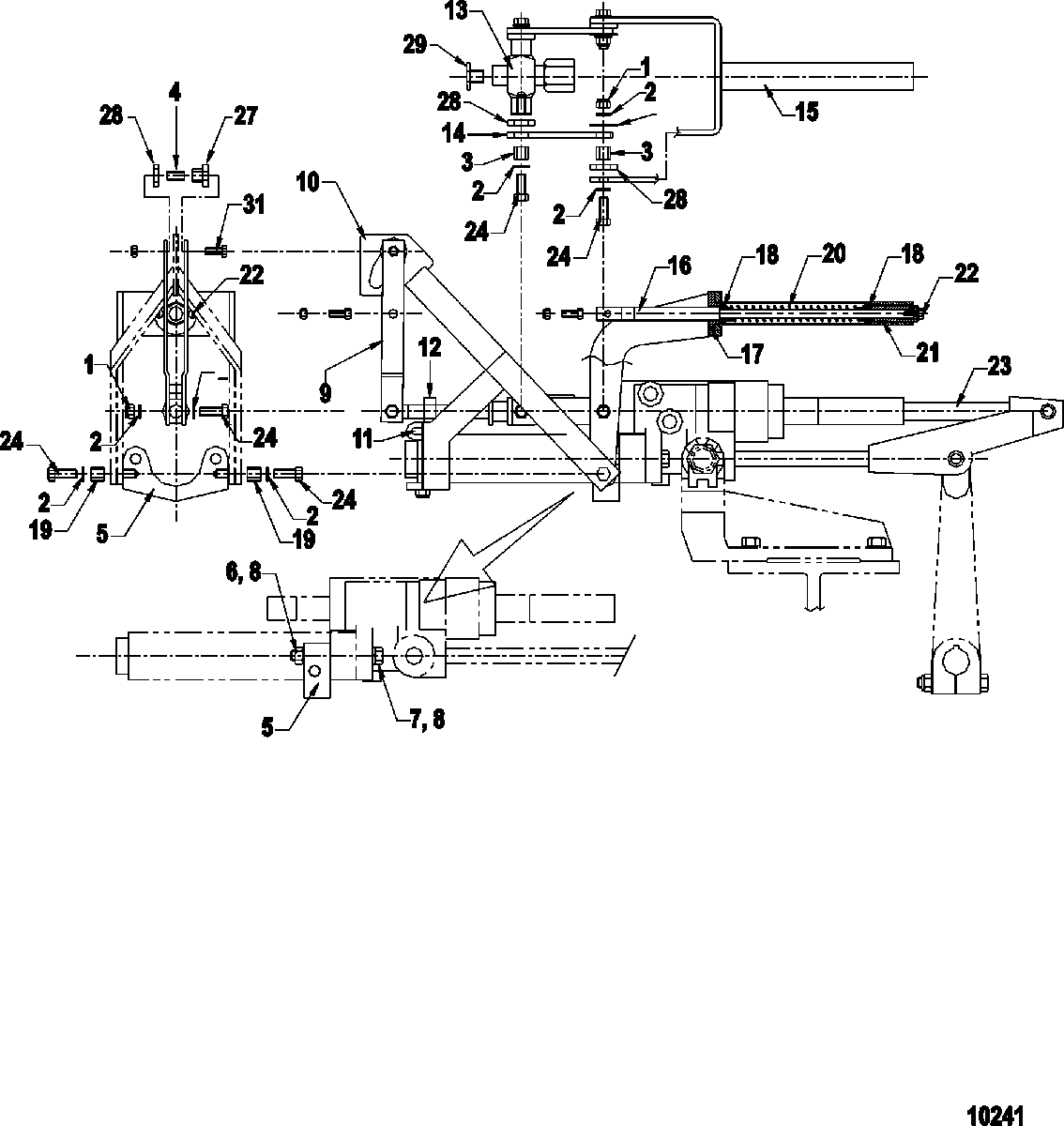

Reverse Mechanism для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
111-887297 LOCKNUT, (M8)LOCKNUT, (M8)
-
212-887208 WASHER, (M8)WASHER, (M8)
-
317-886947 PIN, PivotPIN, Pivot
-
4890111 SHAFTSHAFT
-
5886946 BASE MOUNTBASE MOUNT
-
611-886921 NUT, (.375)NUT, (.375)
-
710-887292 SCREW, (.375 x 3.500)SCREW, (.375 x 3.500)
-
813-886951 WASHER, (0.375)WASHER, (0.375)
-
9886939 FEEDBACK LINKAGE, LOWERFEEDBACK LINKAGE, LOWER
-
10886940 FEEDBACK LINKAGE, UPPERFEEDBACK LINKAGE, UPPER
-
118M0063382 ACTUATOR ASSEMBLY, SteeringACTUATOR ASSEMBLY, Steering
-
12886941 BUMP STOP, Reverse ActuatorBUMP STOP, Reverse Actuator
-
13886945 SPOOL ACTUATORSPOOL ACTUATOR
-
14886943 DRAG LINKDRAG LINK
-
15887286 LEVER ARMLEVER ARM
-
16887287 SHAFT ASSEMBLY, PlungerSHAFT ASSEMBLY, Plunger
-
17887290 END, StopEND, Stop
-
1824-887288 SPRING, GuideSPRING, Guide
-
1917-886948 PIN, PivotPIN, Pivot
-
2024-887289 SPRINGSPRING
-
2111-887223 LOCKNUT, (M10)LOCKNUT, (M10)
-
2210-887304 SCREW, (.188 x .750)SCREW, (.188 x .750)
-
23886944 SHAFT, FeedbackSHAFT, Feedback
-
2410-887296 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
27890124 ROLLERROLLER
-
2812-890110 WASHERWASHER
-
2923-890113 BUSHING, FlangedBUSHING, Flanged
-
3012-886979 WASHERWASHER
-
3110-887293 SCREW, (M8 x 25)SCREW, (M8 x 25)
