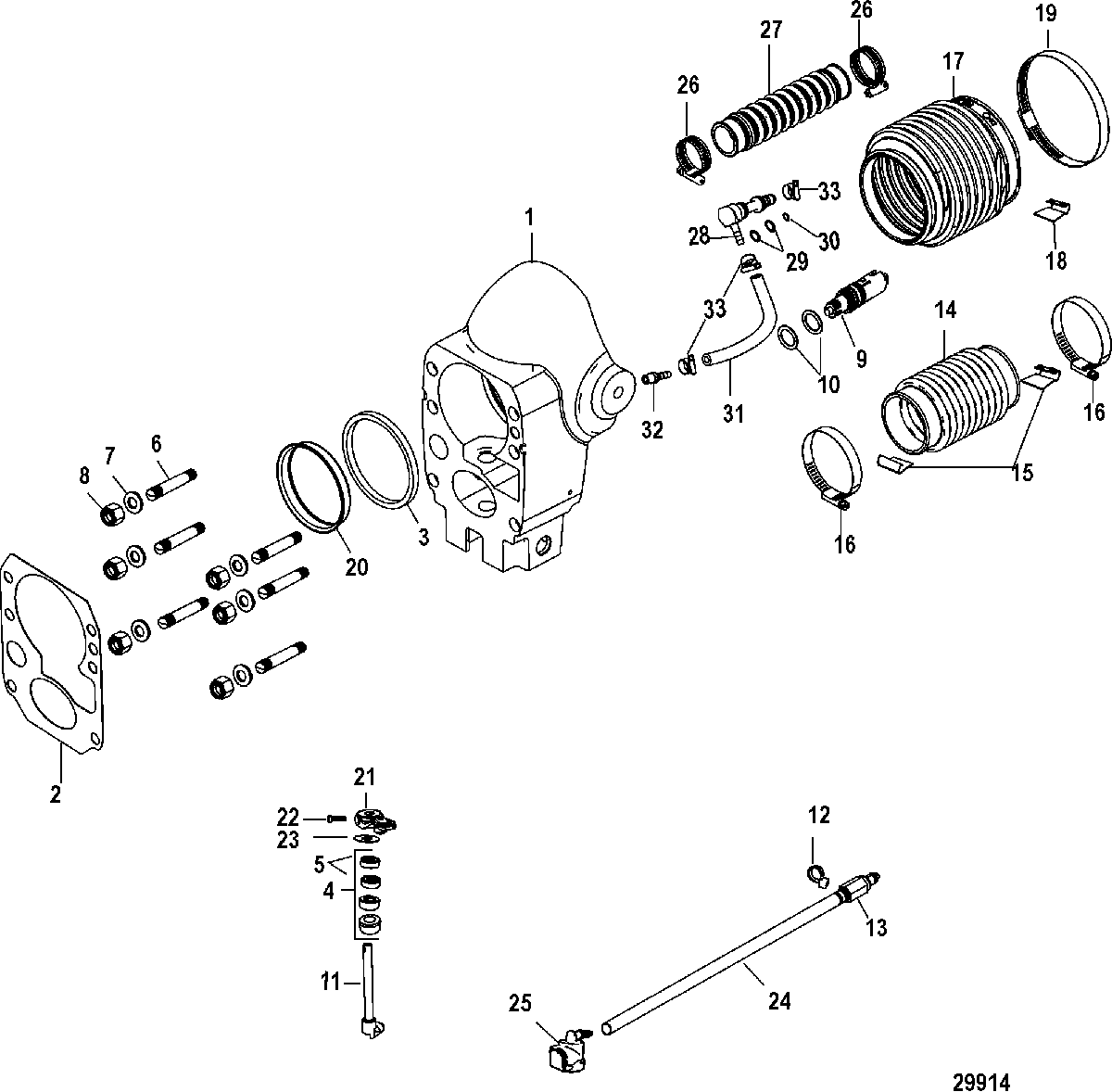

Bell Housing для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
1866383A01 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
227-866449A01 GASKET KITGASKET KIT
-
327-8M2000813 GASKER, RubberGASKER, Rubber
-
423-866821A01 BUSHING/SEAL KITBUSHING/SEAL KIT
-
526-8164641 SEAL, OilSEAL, Oil
-
616-8M2001084 STUD, (.438 x 3.19)STUD, (.438 x 3.19)
-
712-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
811-859116 NUT, (.437-20)NUT, (.437-20)
-
918920A1 VALVE ASSEMBLYVALVE ASSEMBLY
-
1025-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
11866532 SHIFT SHAFT, UpperSHIFT SHAFT, Upper
-
1269355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
1322-865417 FITTINGFITTING
-
1418654A1 BELLOWS ASSEMBLYBELLOWS ASSEMBLY
-
1554-8M0126505 CLIP, GroundingCLIP, Grounding
-
1654-815504348 CLAMP, Worm GearCLAMP, Worm Gear
-
17816431A1 BELLOWS ASSEMBLY, Universal JointBELLOWS ASSEMBLY, Universal Joint
-
1854-8M0126505 CLIP, GroundingCLIP, Grounding
-
1954-815504372 CLAMP, Worm GearCLAMP, Worm Gear
-
20816607 SLEEVESLEEVE
-
218M2000955 LEVER ASSEMBLY, Upper ShiftLEVER ASSEMBLY, Upper Shift
-
2210-865900 SCREW, (.250-28 x .930)SCREW, (.250-28 x .930)
-
2312-39116 WASHERWASHER
-
24866773 SPEEDO TUBESPEEDO TUBE
-
2522-8M2001107 FITTING, Quick-DisconnectFITTING, Quick-Disconnect
-
2654-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
278M2012385 BELLOWSBELLOWS
-
2822-861150T02 FITTING ASSEMBLYFITTING ASSEMBLY
-
2925-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
3025-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
3132-8M0040618 HOSE, (54.00 Inches Bulk)HOSE, (54.00 Inches Bulk)
-
3222-16739 CONNECTORCONNECTOR
-
3354-415825 CLAMP, NylonCLAMP, Nylon
