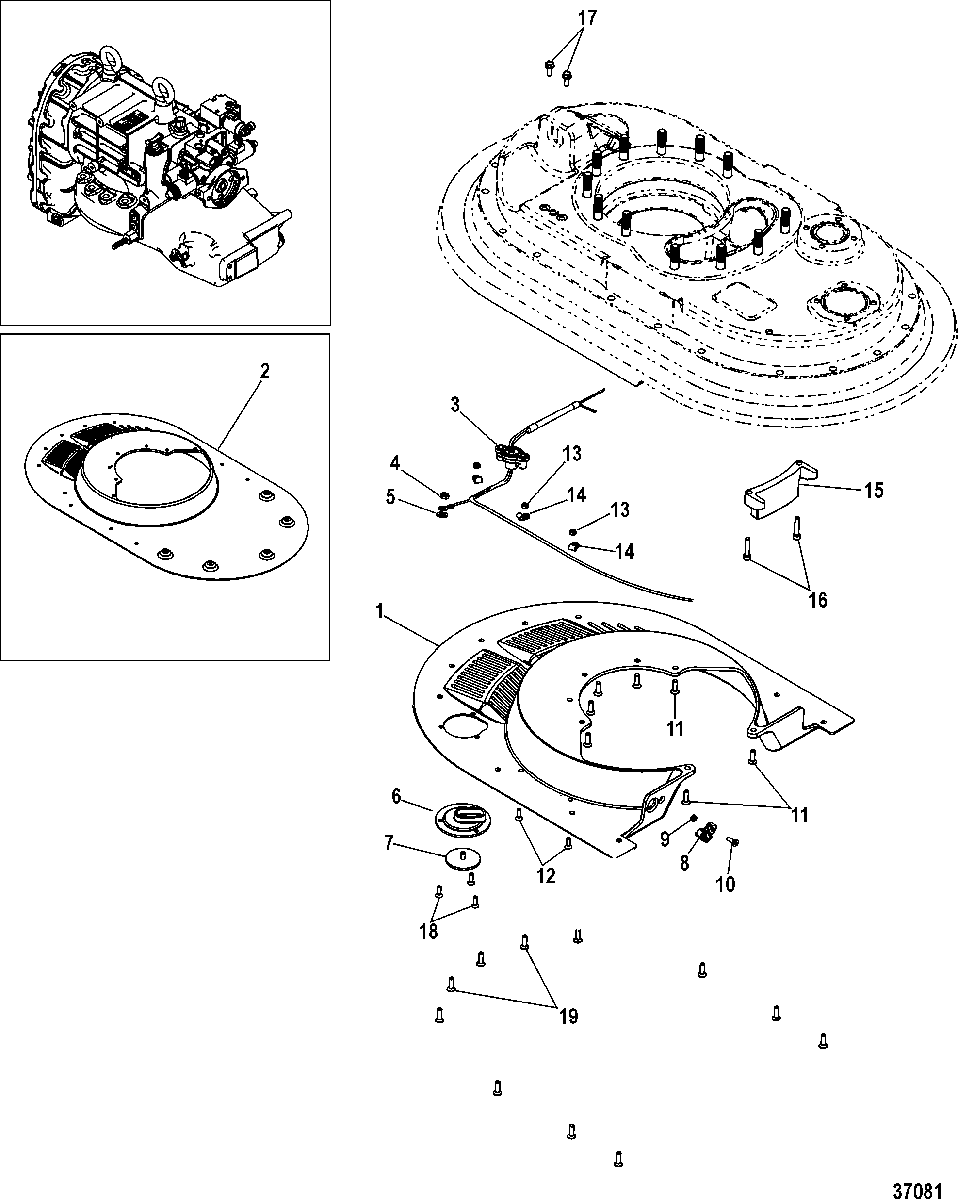

Midsection, Lower для Mercruiser - ZEUS 3000 0M957858 THRU 0M962470
-
№АртикулНазвание
-
18M0108998 COVER
Trim ModelsCOVER
Trim Models -
2879148T23 COVER
Non Trim ModelsCOVER
Non Trim Models -
38M0074249 ANODE ASSEMBLYANODE ASSEMBLY
-
4NSS NOT SOLD SEPARATE, NUTNOT SOLD SEPARATE, NUT
-
5NSS NOT SOLD SEPARATE, WASHERNOT SOLD SEPARATE, WASHER
-
6NSS NOT SOLD SEPARATE, PLATENOT SOLD SEPARATE, PLATE
-
7NSS NOT SOLD SEPARATE, ANODENOT SOLD SEPARATE, ANODE
-
8NSS NOT SOLD SEPARATE, REFRENCE ADAPTORNOT SOLD SEPARATE, REFRENCE ADAPTOR
-
911-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1010-88190316 SCREWSCREW
-
1110-8M0022382 SCREW , (M6 x 20)SCREW , (M6 x 20)
-
1210-88190316 SCREWSCREW
-
1311-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1454-648552 CLIPCLIP
-
158M0029047 BLOCK, FillerBLOCK, Filler
-
1610-82494830 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1710-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1810-88190316 SCREWSCREW
-
1910-8M0022382 SCREW , (M6 x 20)SCREW , (M6 x 20)
