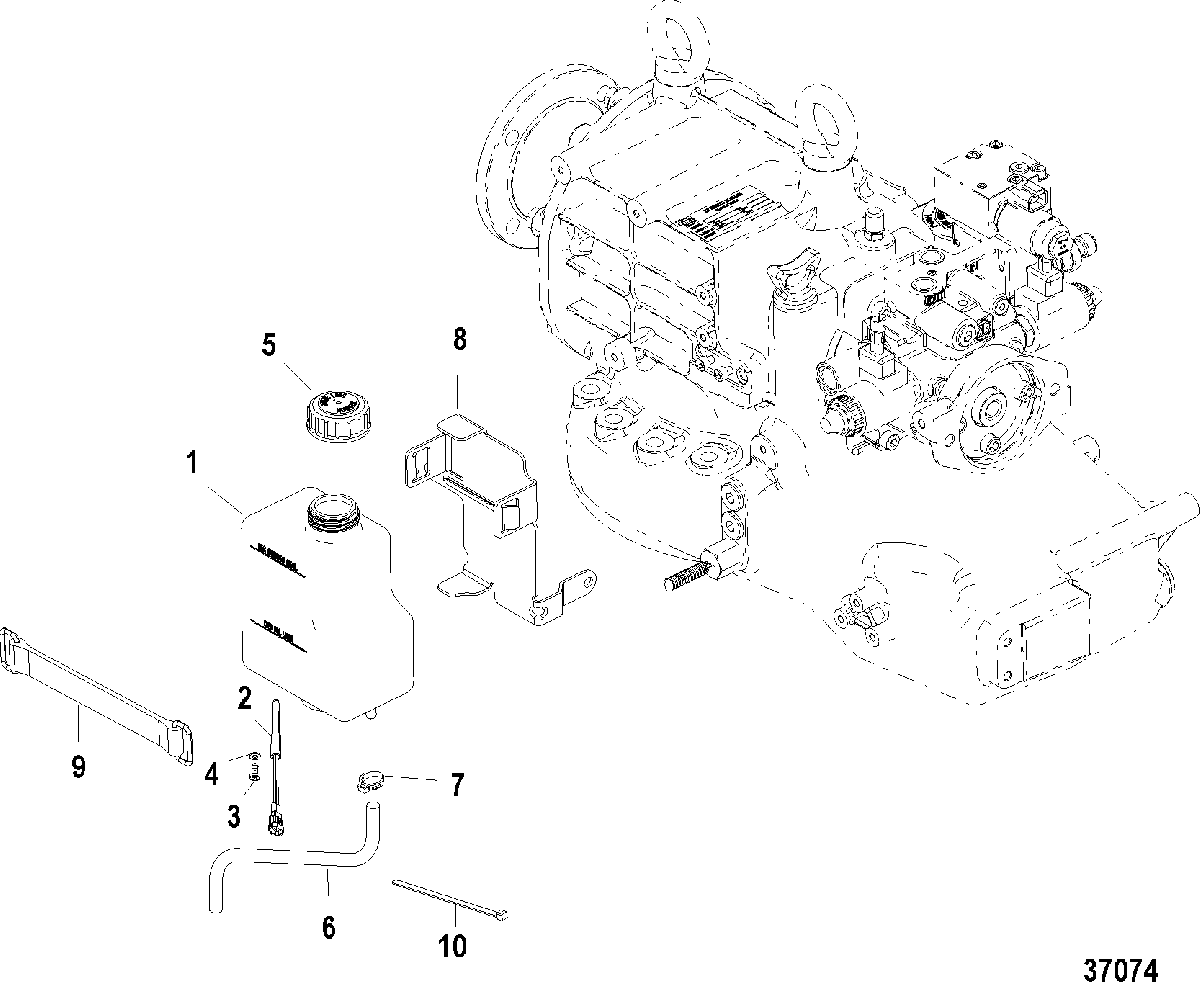

Lube Bottle для Mercruiser - ZEUS 3000 0M963371 THRU 0M968827
-
№АртикулНазвание
-
18M0118988 BOTTLE, DrivelubeBOTTLE, Drivelube
-
287-856156T04 SWITCHSWITCH
-
310-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
536-8067271 CAP, Drive Lube MonitorCAP, Drive Lube Monitor
-
632-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)
-
754-850241 CLAMPCLAMP
-
8879148T38 BRACKETBRACKET
-
9808023T STRAPSTRAP
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
Все узлы модели:
- Cooling System(With Drop Box Cold Water cooler)
- Cooling System(With Drop Box)
- Cooling System(Without Drop Box)
- Electrical
- Gear Housing, Design-I (0M963534 and Below)
- Gear Housing, Design-II (0M963535 and Up)
- Harnesses
- Hydraulic Filter Assembly, High Pressure
- Hydraulic Pump, Primary
- Hydraulic System, Port
- Hydraulic System, Starboard
- • Lube Bottle
- Midsection, Lower
- Midsection, Upper
- Propellers, H-Series
- Propellers, M-Series
- Propellers, Z-Series
- Service/Support Material
- Shroud Assembly
- Steering System, Actuator
- Steering System, Lower King Pin Adaptor (12mm Fasteners)
- Steering System, Lower King Pin Adaptor (14mm Fasteners)
- Tools
- Tools(Continued)
- Transmission Oil Lines, No Drop Box
- Transmission Oil Lines, With Drop Box
- Transmission Oil Lines, With Drop Box Cold Water Cooler
- Transmissions
- Trim Components
- Zeus Model Service Replacement Matrix
- Zeus Unit Chart
