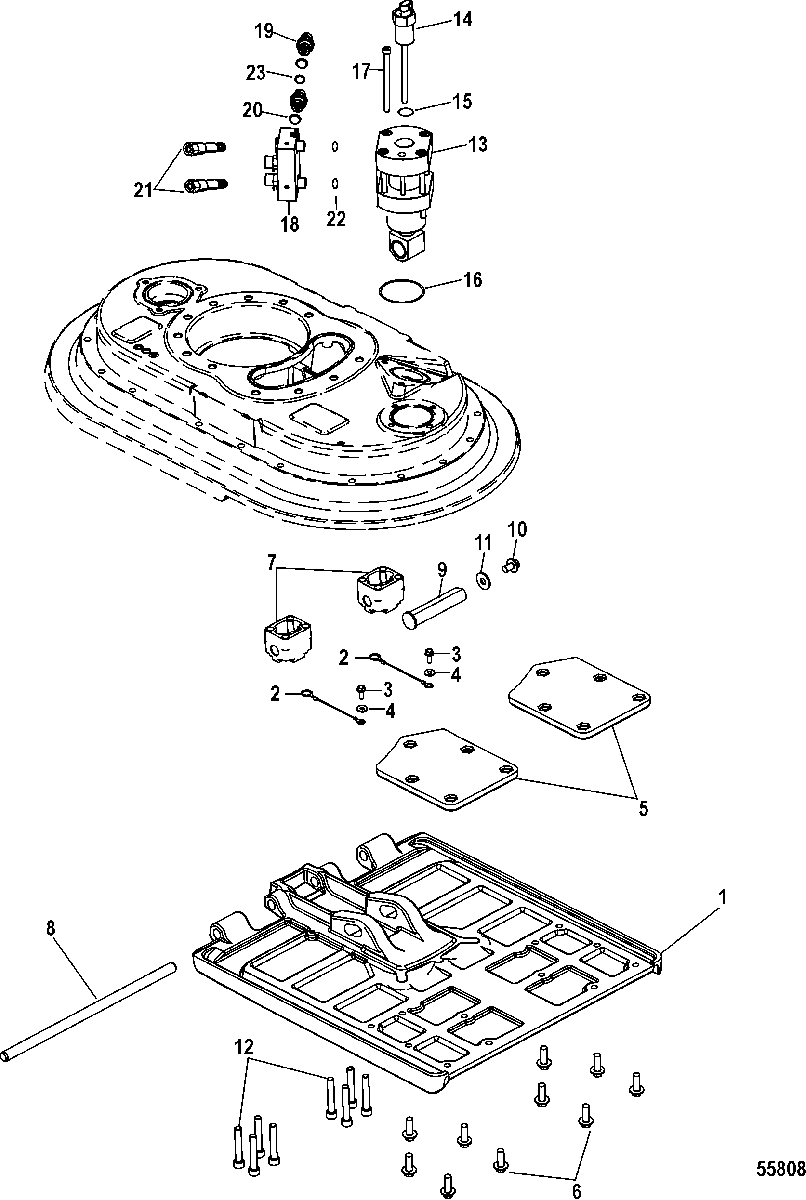

Trim Components для Mercruiser - ZEUS 3000 0M968828 THRU 0M968852
-
№АртикулНазвание
-
1879345T72 TRIM TABTRIM TAB
-
284-879148T50 CABLE ASSEMBLYCABLE ASSEMBLY
-
310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
412-43328 WASHERWASHER
-
597-879150A65 ANODE KITANODE KIT
-
610-40011148 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
78M0007600 BLOCK, HingeBLOCK, Hinge
-
817-8M0007594 PIN, HingePIN, Hinge
-
917-8M0007595 PINPIN
-
1010-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
1112-4002320 WASHERWASHER
-
1210-8M0039775 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
138M8023292 CYLINDERCYLINDER
-
148M0050826 SENSORSENSOR
-
1525-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
1625-63351 O RING, (2.550 x .103)O RING, (2.550 x .103)
-
1710-8M0041797 SCREW, (M8 x 110)SCREW, (M8 x 110)
-
188M0095251 MANIFOLDMANIFOLD
-
198M6001897 TRANSDUCERTRANSDUCER
-
2025-8M0024307 O-RING, (8.92 x 1.83)O-RING, (8.92 x 1.83)
-
218M6002655 BANJO BOLTBANJO BOLT
-
2225-8M0094507 O-RING, (17.93 x 2.46)O-RING, (17.93 x 2.46)
-
2325-8M0088858 O-RING, (17.17 x 1.78), Check ValveO-RING, (17.17 x 1.78), Check Valve
