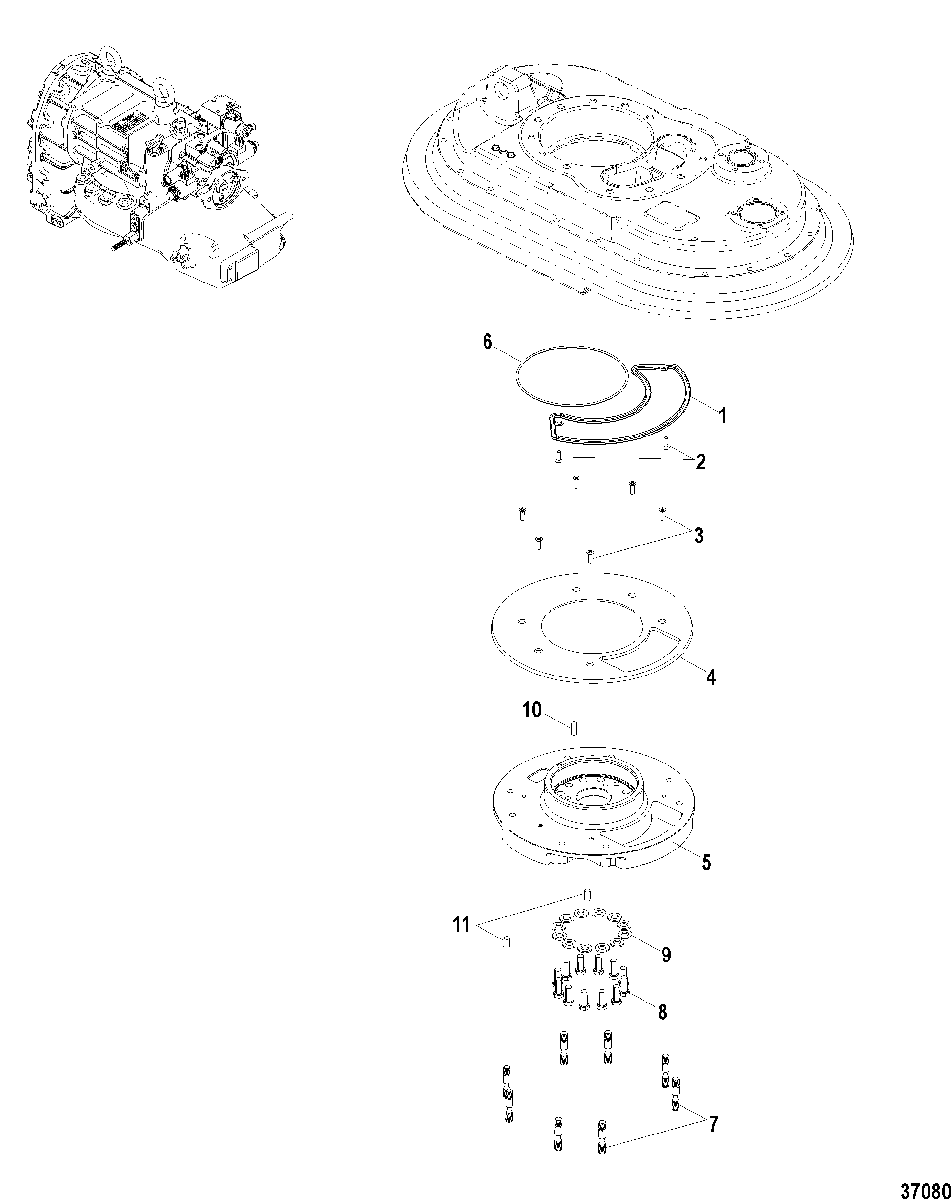

Steering System, Lower King Pin Adaptor (12mm Fasteners) для Mercruiser - ZEUS 3000 0M968853 THRU 0M968885
-
№АртикулНазвание
-
127-8M0007545 SEALSEAL
-
210-832838 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
310-8M0022382 SCREW , (M6 x 20)SCREW , (M6 x 20)
-
48M0053618 PLATEPLATE
-
5879345T49 ADAPTOR PLATE, KingpinADAPTOR PLATE, Kingpin
-
625-8M0007557 O-RING, (133.02 x 2.62)O-RING, (133.02 x 2.62)
-
716-8M0110668 STUD, M12X61 Stainless SteelSTUD, M12X61 Stainless Steel
-
810-40001258 SCREW, (M12 x 40)SCREW, (M12 x 40)
-
912-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
1017-8M0043826 PIN, Dowel (.875)PIN, Dowel (.875)
-
1117-826359 PINPIN
