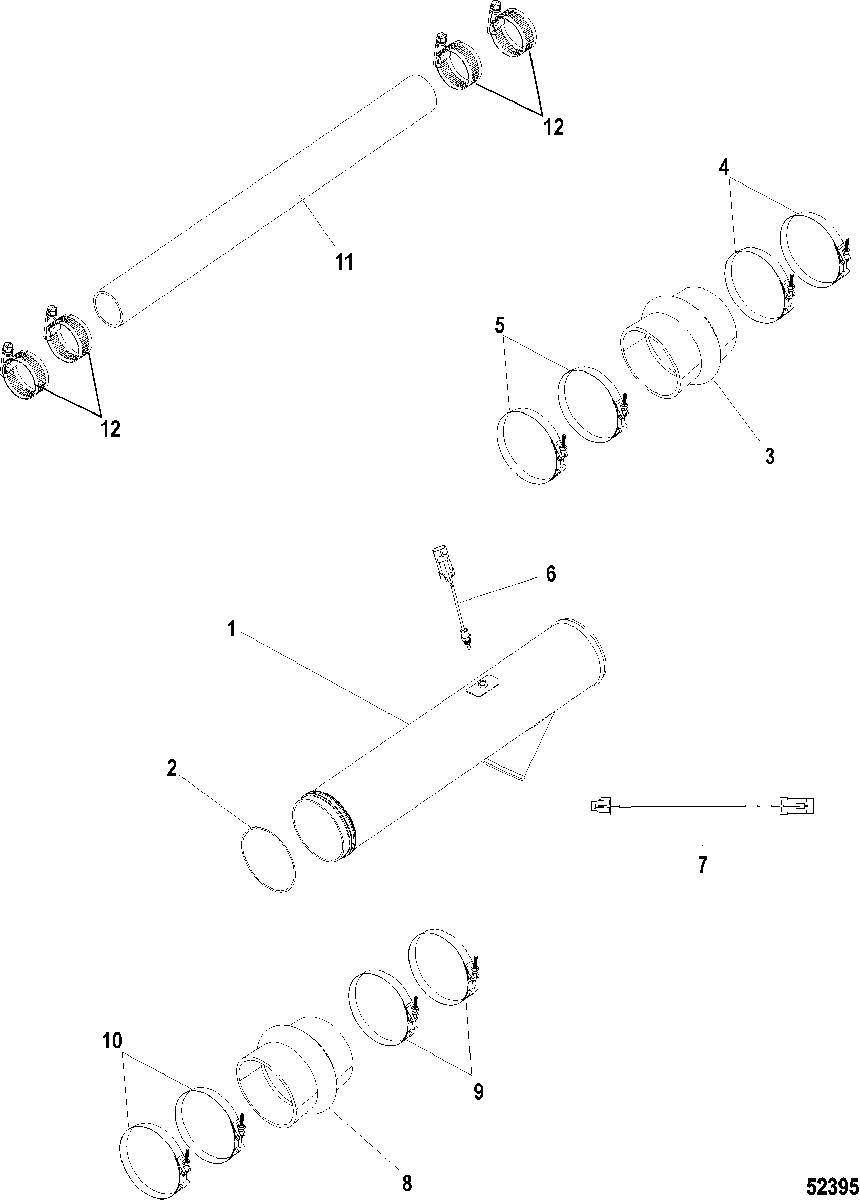

Exhaust Tube, QSB 5.9 для Mercruiser - ZEUS 3000 0M968887 THRU 0M968892
-
№АртикулНазвание
-
-8M0077189 EXHAUST TUBE KIT
28.37 inch Shaft, Without Drop BoxEXHAUST TUBE KIT
28.37 inch Shaft, Without Drop Box -
-8M0077204 EXHAUST TUBE KIT
28.37 inch Shaft, With Drop BoxEXHAUST TUBE KIT
28.37 inch Shaft, With Drop Box -
-8M0077203 EXHAUST TUBE KIT
18.75 inch Shaft, Without Drop BoxEXHAUST TUBE KIT
18.75 inch Shaft, Without Drop Box -
-8M0077185 EXHAUST TUBE KIT
18.75 inch Shaft, With Drop BoxEXHAUST TUBE KIT
18.75 inch Shaft, With Drop Box -
1NSS NOT SOLD SEPARATE, Exhaust Tube, FRPNOT SOLD SEPARATE, Exhaust Tube, FRP
-
225-8M0068905 SEAL, O RINGSEAL, O RING
-
332-8M0068868 HOSE, HUMP, 127 x 127mmHOSE, HUMP, 127 x 127mm
-
454-8M0068908 CLAMP, 134-142mmCLAMP, 134-142mm
-
554-8M0068908 CLAMP, 134-142mmCLAMP, 134-142mm
-
68M0039116 SENSOR, TemperatureSENSOR, Temperature
-
784-8M0068874 HARNESS, Exhaust TemperatureHARNESS, Exhaust Temperature
-
832-8M0068866 HOSE, Exhaust, 127 x 139.7mmHOSE, Exhaust, 127 x 139.7mm
-
954-8M0068908 CLAMP, 134-142mmCLAMP, 134-142mm
-
1054-8M0068907 CLAMP, 148-155mmCLAMP, 148-155mm
-
1132-8M0068895 HOSE, 38.1 x 1041mm
28.37 inch Shaft, Without Drop BoxHOSE, 38.1 x 1041mm
28.37 inch Shaft, Without Drop Box -
1132-8M0068897 HOSE, 38.1 x 1067mm
28.37 inch Shaft, With Drop BoxHOSE, 38.1 x 1067mm
28.37 inch Shaft, With Drop Box -
1132-8M0069089 HOSE, 38.1 x 889mm
18.75 inch Shaft, Without Drop BoxHOSE, 38.1 x 889mm
18.75 inch Shaft, Without Drop Box -
1132-8M0068896 HOSE, 38.1 x 660.4mm
18.75 inch Shaft, With Drop BoxHOSE, 38.1 x 660.4mm
18.75 inch Shaft, With Drop Box -
1254-8M0068823 CLAMP, HOSE, 27-51mmCLAMP, HOSE, 27-51mm
